ICON Vehicle Dynamics 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.

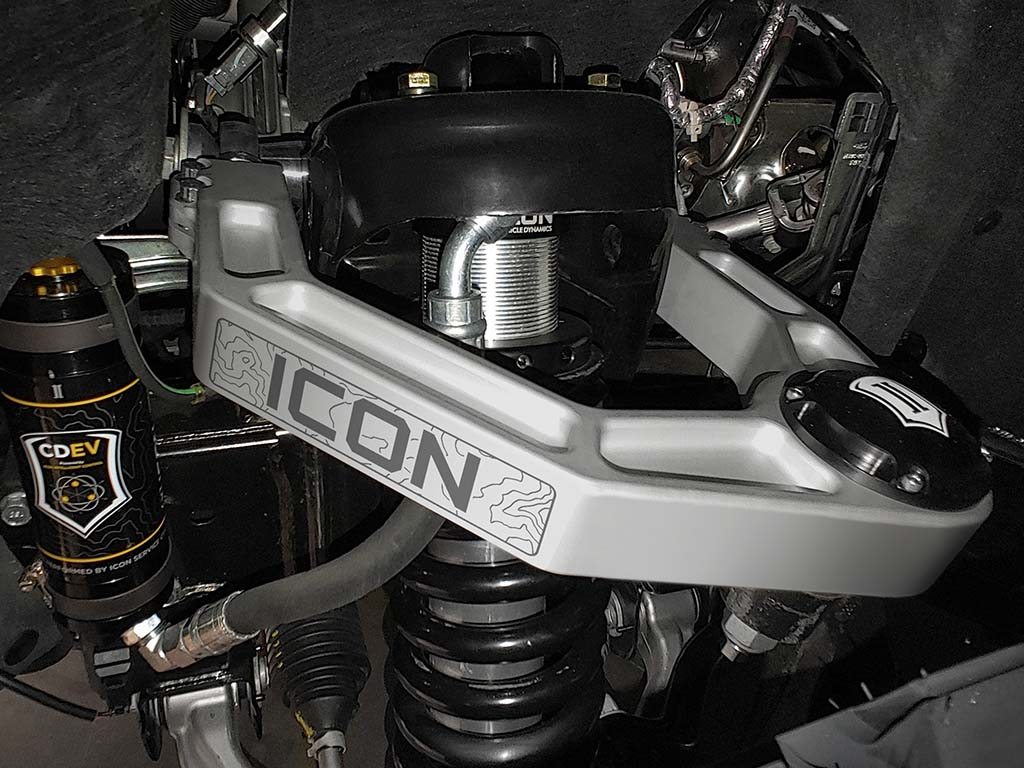

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-2026 Ford Bronco with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.

Features

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows increased travel on lifted or stock height Broncos
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap

Specifications

Note: Factory Wheels & Tires Fitment: No Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset Recommended Aftermarket Tires: 37" x 12.50" APPLICATION NOTE #10: Will not fit Bronco Raptor

Short Description: UCA KIT

Invoice Description: 48500DJ

Definition: Suspension Control Arm Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 1 Years-Delta Joint Pro, Limited Lifetime-Control Arms
