ICON Vehicle Dynamics 48700 - 21-23 BRONCO FRONT 2.5 VS RR COILOVER KIT
Couldn't load pickup availability

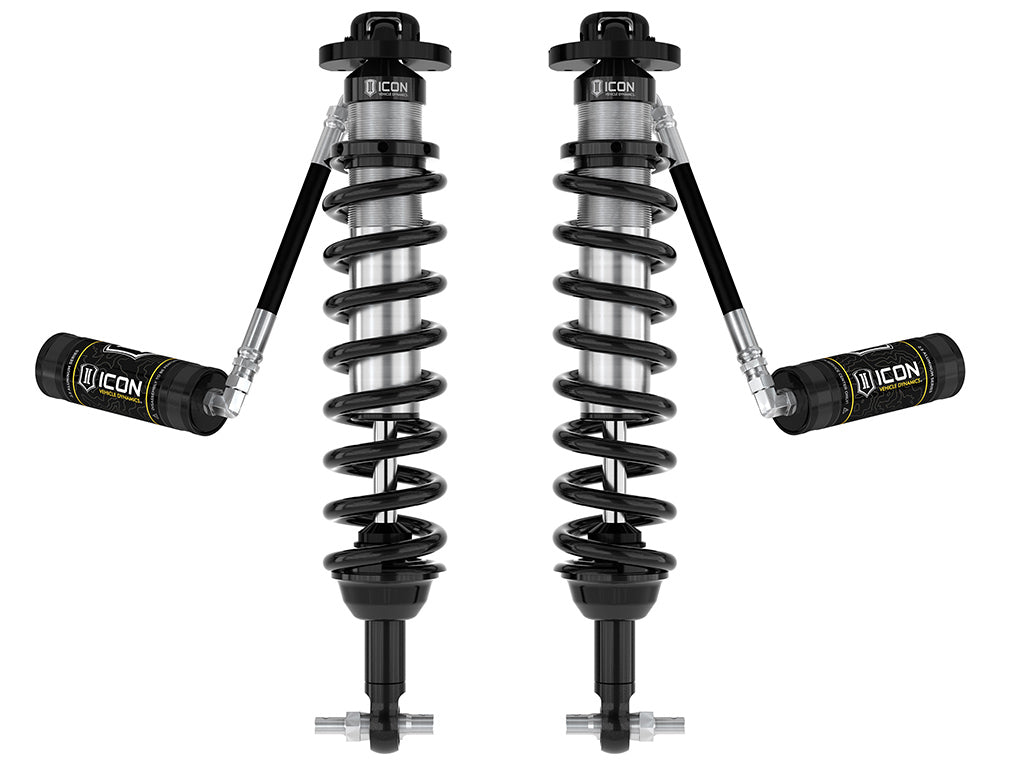

These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. The shock’s bigger 2.5” body and larger piston area improves damping ability and ride quality across varying types of terrain.

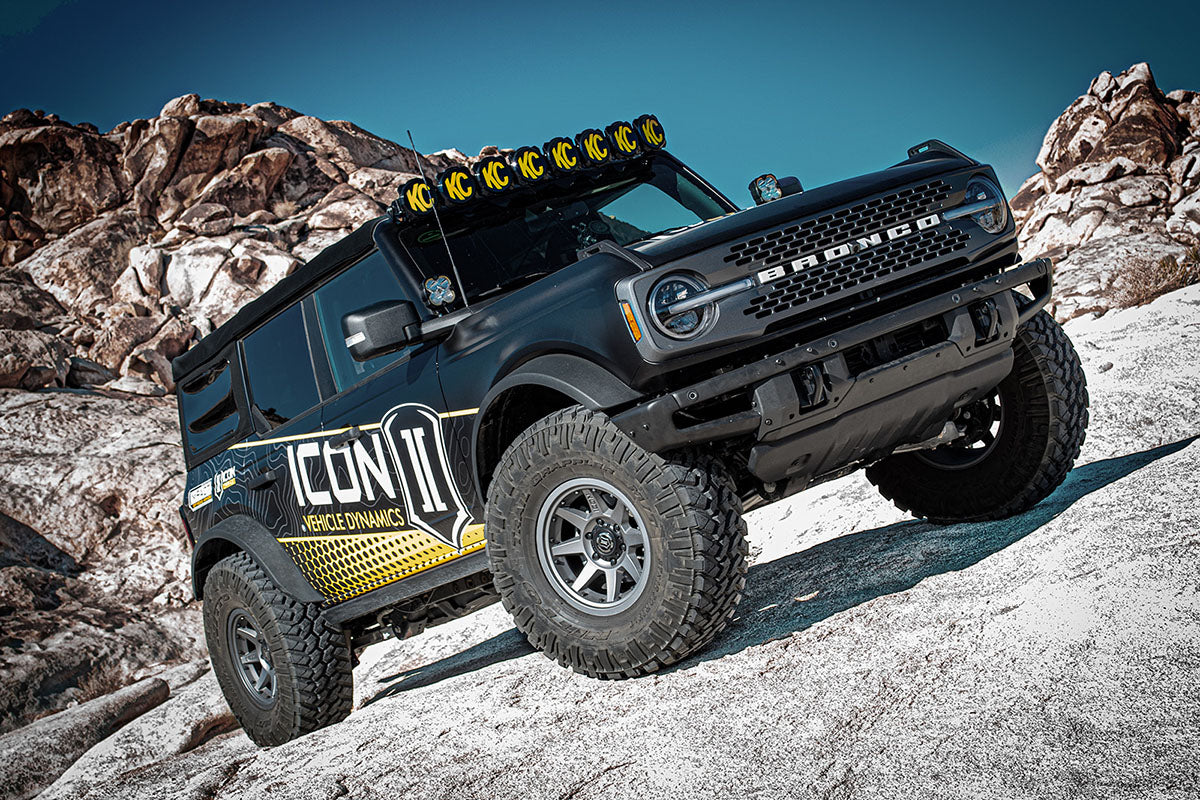

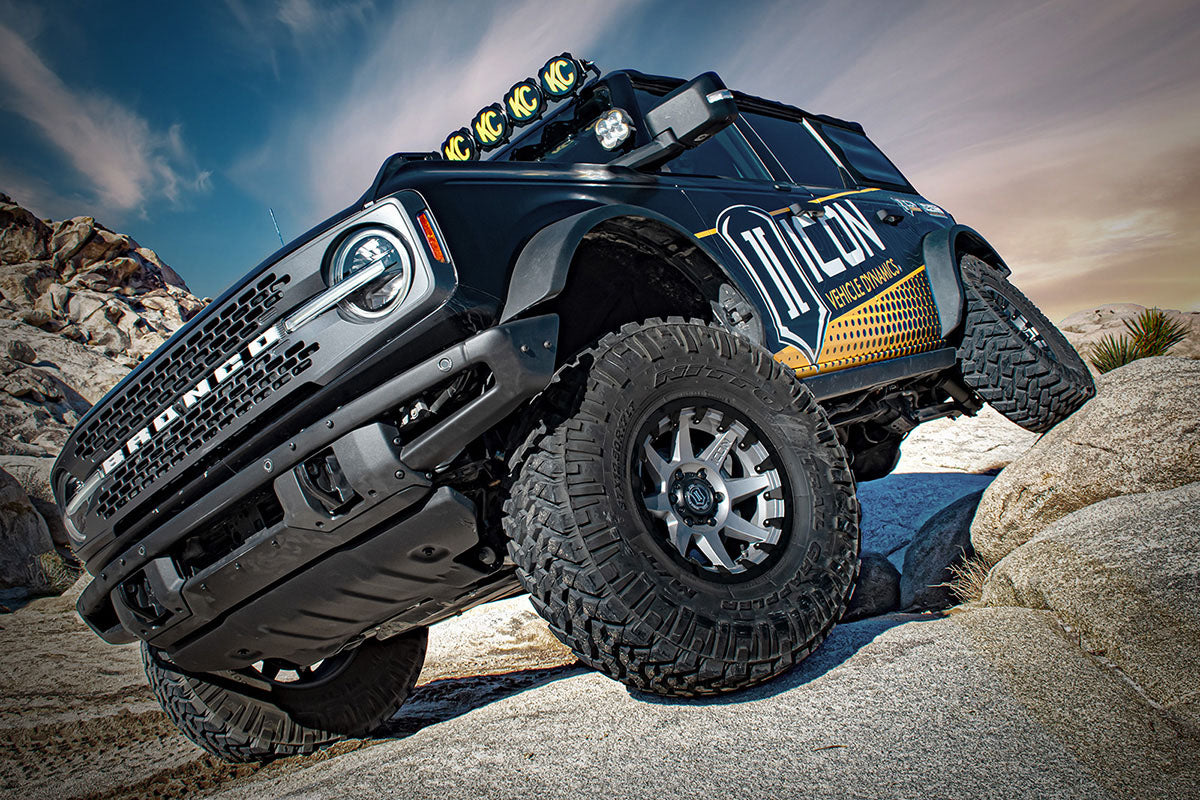

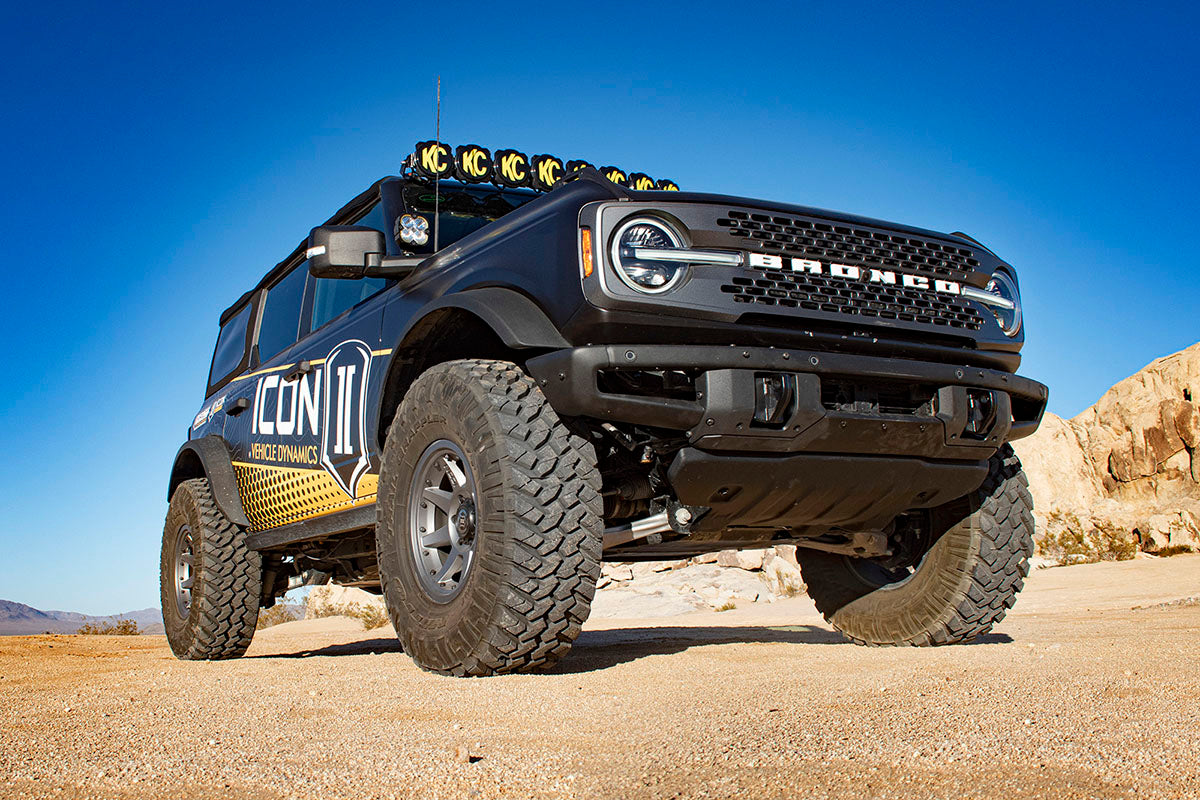

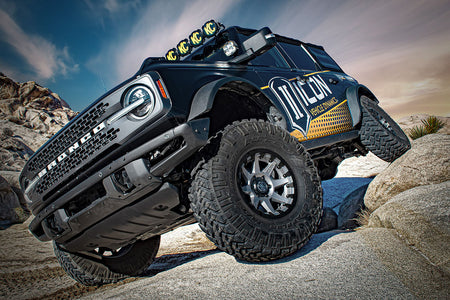

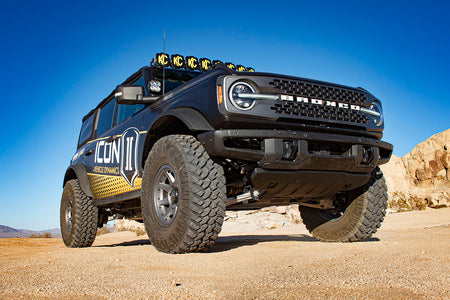

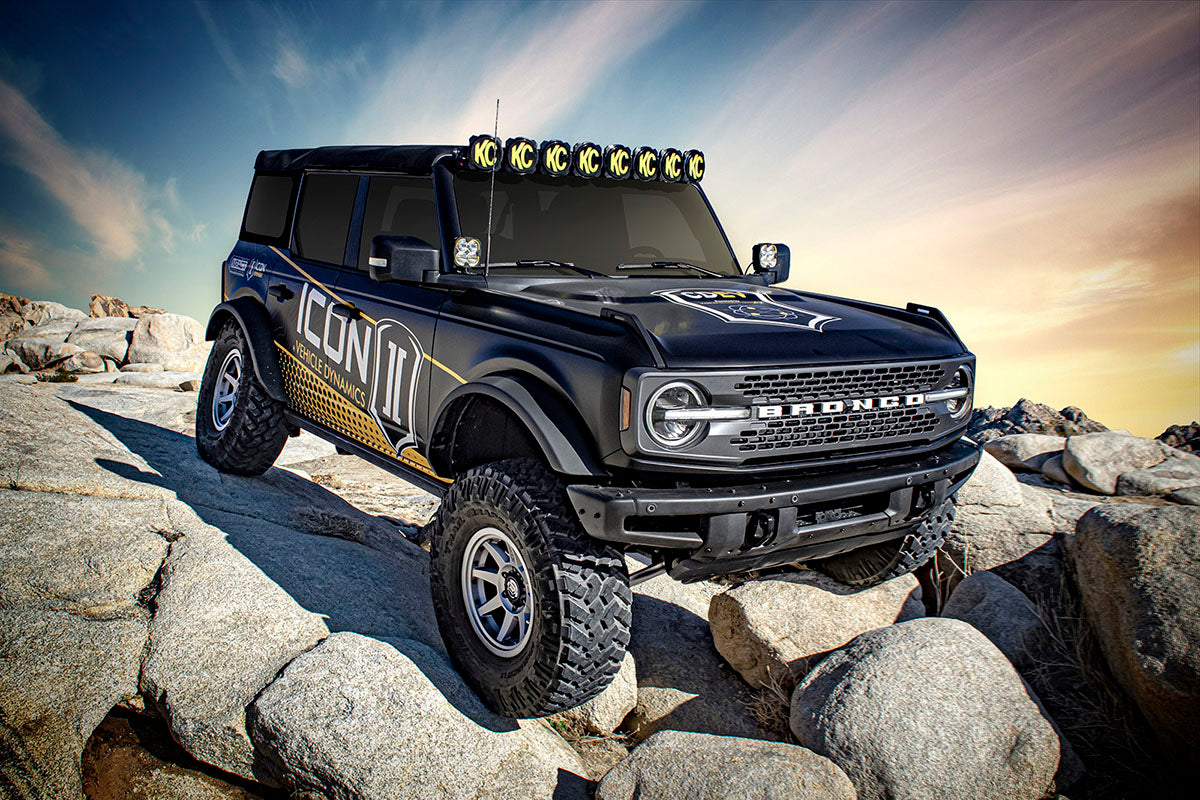

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Features & Benefits
- Increased wheel travel (up to 11.5”) and ride quality over stock
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Adjustable up to 3-4" of front lift height on non-Sasquatch or 2-3” of front lift on Sasquatch Broncos
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Dust Shield Included | No |
| Adjustable Damping | NO |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Add-On Part | 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL |
| Add-On Part | 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT |
| Add-On Part | 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT |
| Add-On Part | 45212 - 21-23 BRONCO XD TIE ROD KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Minimum Lift | 2 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming) |
| Recommended Aftermarket Tires | (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications) |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2021-2023 Ford Bronco, Front, 1.5-4” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir |
| Travel Length | 6.39 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Compressed Length | 18.14 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Extended Length | 24.53 IN |
| Front Spring Rate | 500 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 4 IN |
| Maximum Ride Height Raising Distance | 4 IN |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
