ICON Vehicle Dynamics 51013 - 22-24 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT
Product Availability Request
Fill the form and our team will contact you.

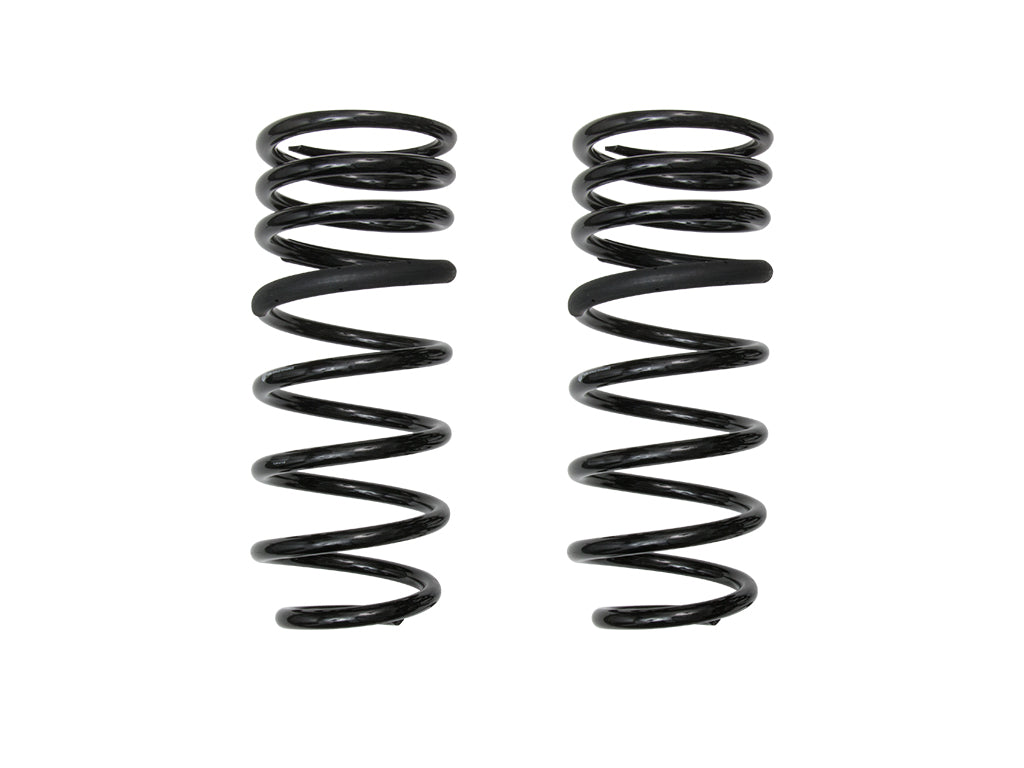

The ICON triple-rate coil springs provide a softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
ICON Triple Rate rear coil springs for 2022-2026 Toyota Tundra provide increased ground clearance while greatly enhancing on- and off-road performance as part of ICON's 6" Lift Performance Suspension System. The triple-rate coil design provides a softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Specifically designed to net 3" of rear lift on a Tundra equipped with a TRD suspension Package or 3.5" of rear lift on a non-TRD Tundra. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2022-2026 Toyota Tundra.
Features
- Vehicle specific design to yield more lift on a Tundra equipped with an ICON 6" Lift Performance Suspension System
- 3" rear lift height over stock on TRD models
- 3.5" rear lift height over stock on non-TRD models
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bump Stops Included | No |
| Maximum Lift Height | 3.5 IN |
| Spring Color | Black |
| Color | Black |
| Rear Spring Seat Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Rear Spring Rate Type | Progressive Triple Rate |
| Spring Material | Steel |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
Note: OEM Wheels & Tires Fitment: No Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension APPLICATION NOTE #380: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro. A Tundra without TRD suspension package will net 3.5" of rear lift. Intended to be installed as part of ICON's 6" Lift Performance suspension System.
Short Description: COIL SPRING KIT
Invoice Description: 51013
Definition: Coil Spring Set
Installation Guide: Download PDF
Warranty: Lifetime
