ICON Vehicle Dynamics 51014 - 22-24 TUNDRA FRONT SKID PLATE
Product Availability Request
Fill the form and our team will contact you.

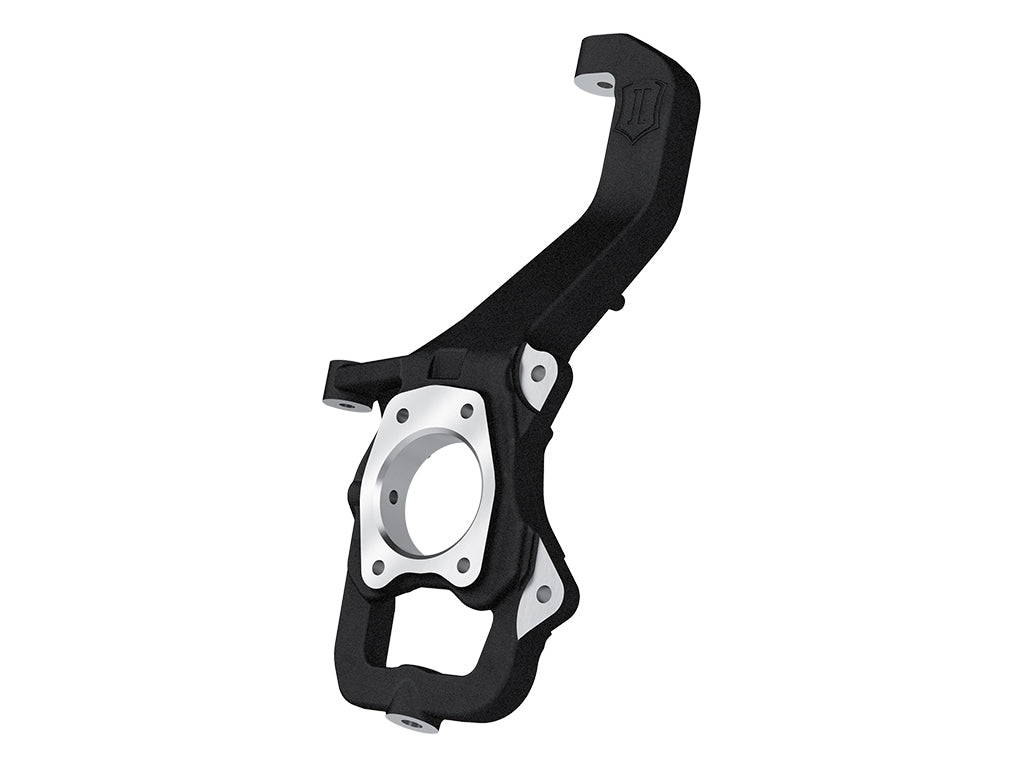

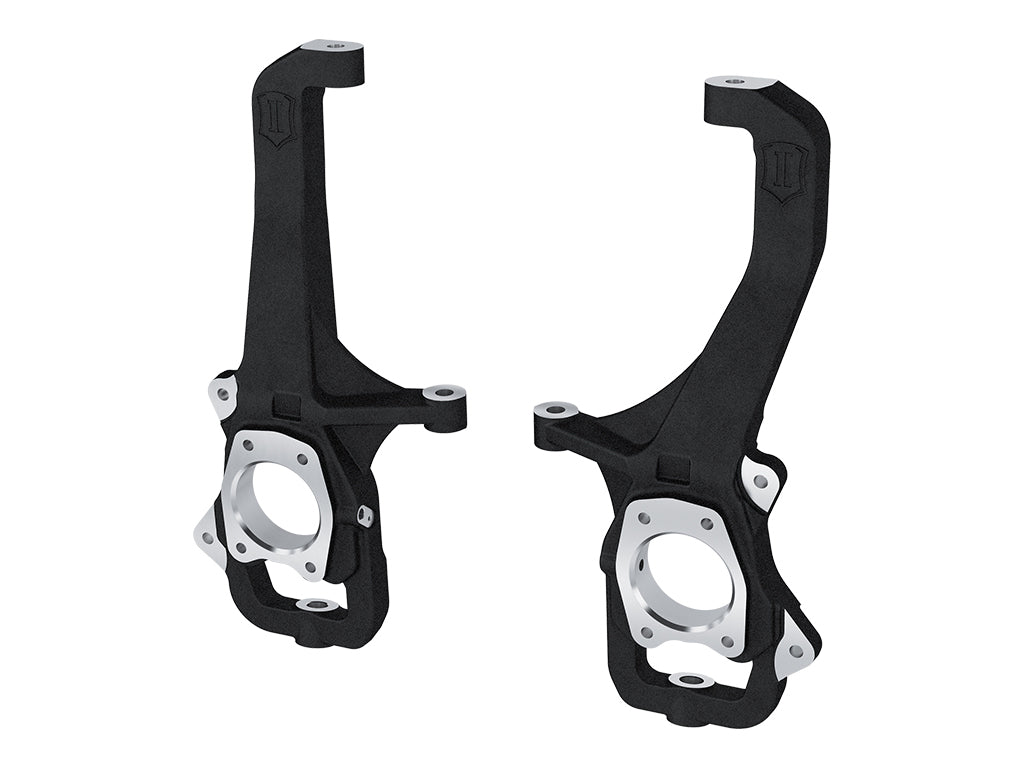

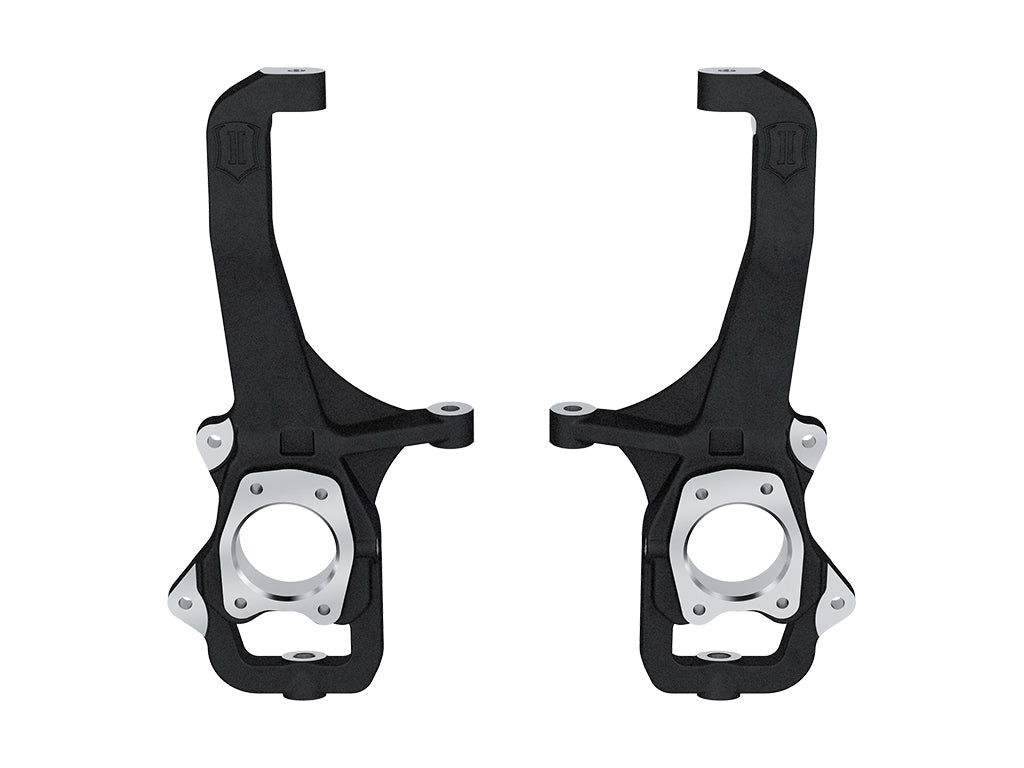

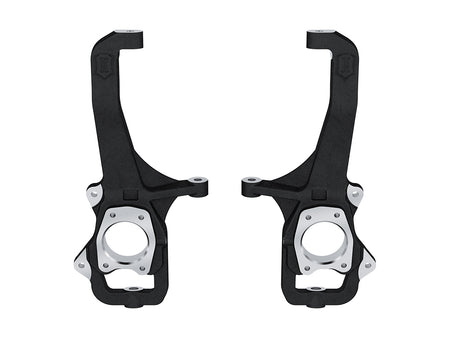

The ICON Steering Knuckle Kit is an essential component of the ICON 6” Lift System and compliment the ICON front crossmembers. Their high-strength ductile iron construction is engineered to withstand the stresses of aggressive off-road use.
The ICON Vehicle Dynamics Front Steering Knuckle Kit is an essential component of the ICON 6” Lift Performance Suspension System for the 2022-2026 Toyota Tundra, featuring a 4” drop to compliment the ICON high-clearance front crossmembers. Their single piece, high-strength CNC machined ductile iron construction ensures strength and have been engineered to withstand the stresses of aggressive off-road use while minimizing un-sprung weight and maintaining factory track width. Optimized steering arm geometry also virtually eliminates bump steer through the entire wheel travel range for predictable handling characteristics. These steering knuckles will stand the test of time with replaceable steering stops, a durable black powder coat finish, and ICON’s Limited Lifetime Warranty.
Features
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- ICON Limited Lifetime Warranty
- Precision CNC machined
- Designed to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Optimized suspension geometry nearly eliminates bump steer
- Maintains factory track width
- Engineered to withstand the stresses of aggressive off-road use
- Pocketed design for lower un-sprung weight
- Replaceable steering stops
- Durable powder coat finish for corrosion resistance
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Axle Included | No |
| Color | Black |
| Material | Ductile Iron |
| Mounting Hardware Included | No |
| Hub Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Instruction Manual Included | Yes |
| California Prop 65 Warning | Yes |
| Add-On Part | 51017 - 22-26 TUNDRA FRONT SKID PLATE |
| Add-On Part | 51012 - 22-26 TUNDRA REAR BOX KIT |
| Add-On Part | 51010 - 22-26 TUNDRA FRONT BOX KIT 1 |
| Add-On Part | 51011 - 22-26 TUNDRA FRONT BOX KIT 2 |
Note: OEM Wheels & Tires Fitment: No Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #381: Require minimum of 20" diameter wheels APPLICATION NOTE #382: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, and 51017.
Short Description: STEERING KNUCKLE KIT
Invoice Description: 51014
Installation Guide: Download PDF
Warranty: Lifetime
