ICON Vehicle Dynamics 54000 - 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
Product Availability Request
Fill the form and our team will contact you.

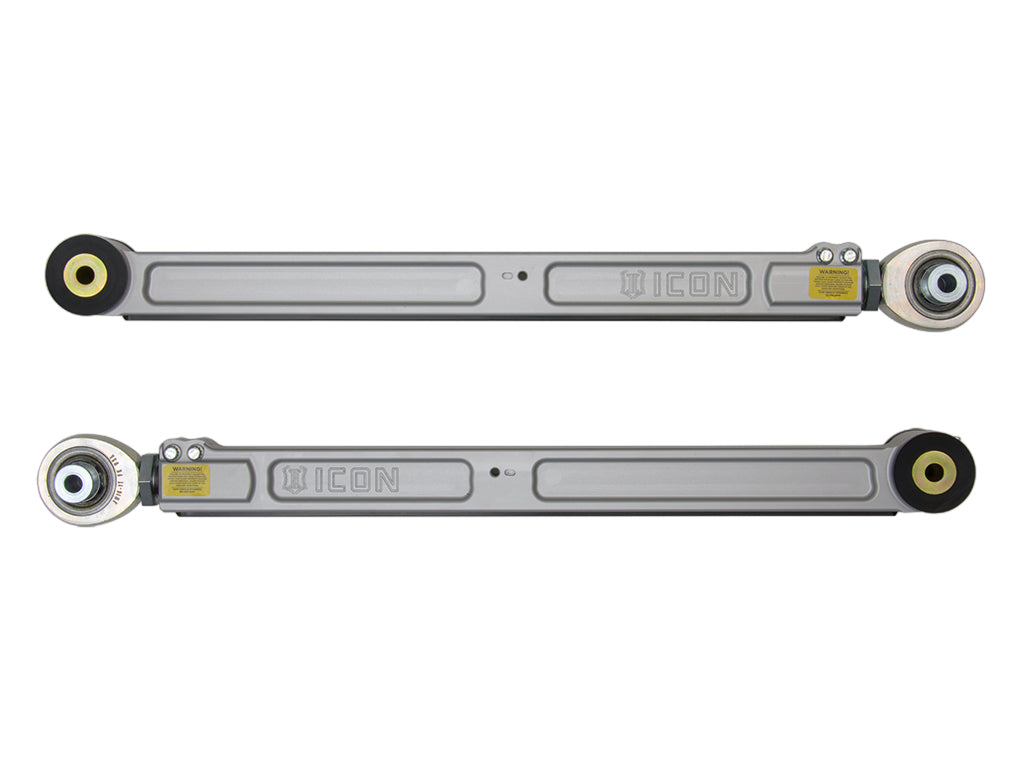

ICON billet trailing arms are light, strong, and engineered to improve off-road ride quality. Built with CNC machined 6061 aluminum, they feature PTFE-lined rod ends, replaceable nylon rock sliders for protection, and on-vehicle adjustment.
ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.
Features & Benefits
- On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
- Vehicle specific, high clearance design for reduced link contact with obstacles

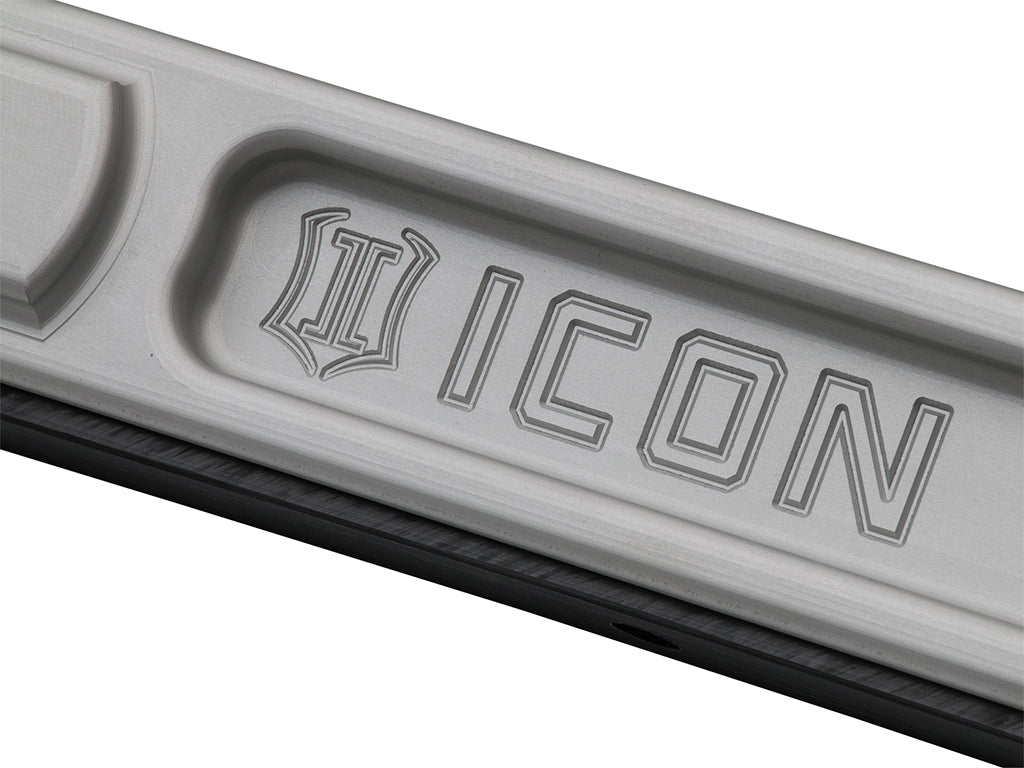

- Replaceable Nylon ROCK Slider to protect the link from damage
- CNC machined 6061 aluminum construction
- Large FK Bearing JMX16T PTFE-lined rod ends
- Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
- Covered by ICON’s Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | yes |
| Ball Joint Included | Yes |
| Ball Joint Stud Type | Threaded |
| Bushings Included | yes |
| Ball Joint Mounting Type | Thread in |
| Bushing Color | Black |
| Service Parts | 614509 - 54000 BUSHING AND SLEEVE KIT |
| Suspension Type | Air |
| Material | Aluminium |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| Construction | Billet |
| Control Arm Construction | Billet |
| End 2 Type | Bushing |
| Color | Gray |
| Title | ICON 2007-2014 FJ Cruiser/2003-2024 4Runner/2008-2021 Land Cruiser/03-23 Lexus GX, Billet Lower Trailing Arm Kit |
| Pre-Greased | No |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| End 1 Type | Rod End Bearing |
| Control Arm Color | Silver |
| Suspension Type | Spring |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Reinforced | Yes |
| Grease Fitting Included | yes |
| Mounting Hardware Included | yes |
| Bushing Material | Rod End Bearing |
| Bushing Material | Polyurethane |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
