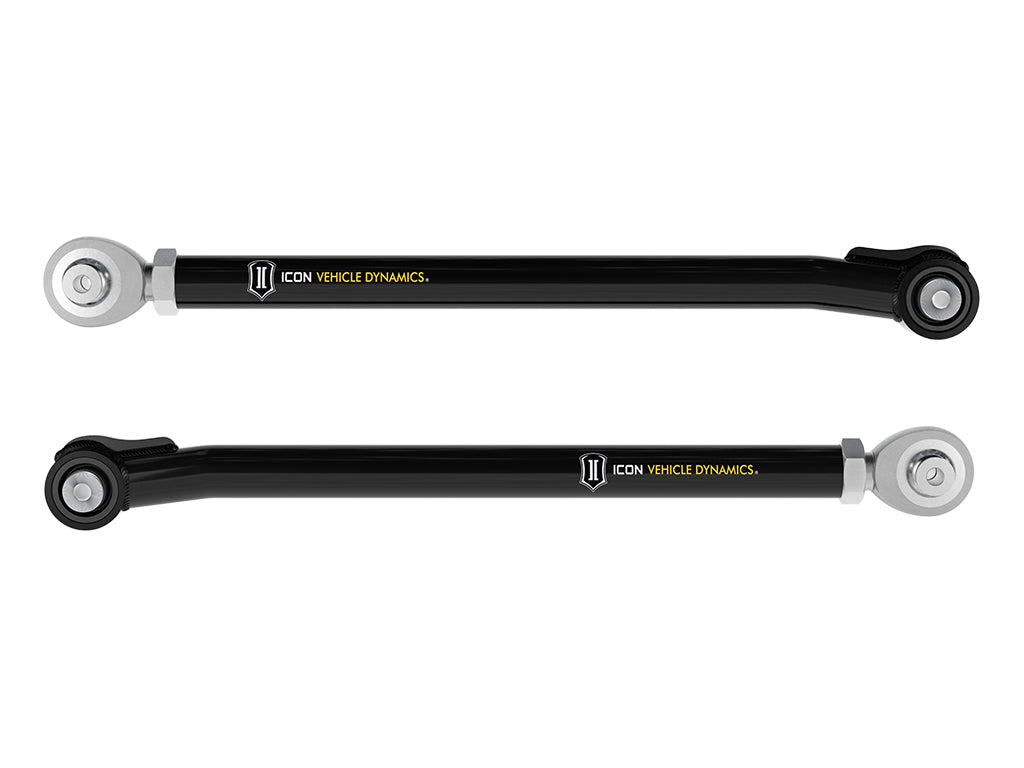

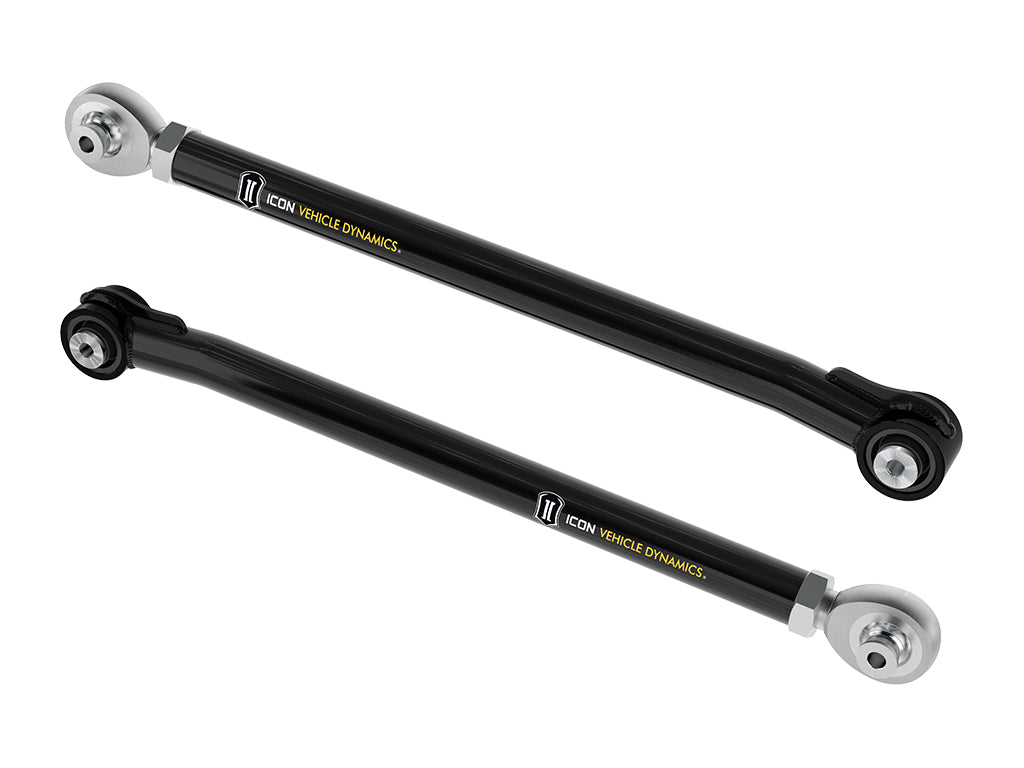

ICON Vehicle Dynamics 54002T - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACOMA TUBULAR REAR LOWER LINK KIT
Product Availability Request
Fill the form and our team will contact you.
The ICON Tubular Rear Lower Link System helps free up rear axle movement to allow for increased suspension travel and articulation. Formed using DOM steel tubing for high strength, with CNC machined threaded ends and bushing housings.
The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, and 2024-2025 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Features & Benefits
- Adjustable for various lift heights & driveline angles
- Help free rear suspension bind compared to OE links
- High clearance Lower Link design for reduced contact with obstacles
- CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
- Multi durometer bushings for noise free operation and maximum angularity
- No grease required for life of bushings
- Quality JM16T PTFE-lined FK Rod Ends
- Fabricated components covered under ICON's Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | Yes |
| Adjustable Control Arm | yes |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Thread in |
| Ball Joint Stud Type | Threaded |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Black |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | DOM Steel |
| End 1 Type | Rod End Bearing |
| End 2 Type | Bushing |
| Finish | Powdercoated |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Quantity | Pair |
| Reinforced | Yes |
| Suspension Grade Type | Performance |
| Title | ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma, Rear, Tubular Lower Link Kit |
| Attachments Included | No |
| Bushing Color | Silver |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Material | Rod End Bearing |
| Set | Yes |
| Add-On Part | 54102T - 22-25 TUNDRA/23-25 SEQUOIA/24-25 TACO/LC250/GX550/25 T4R TUBE UPR LINK KIT |
| Suspension Type | Spring |
| Suspension Type | Air |
