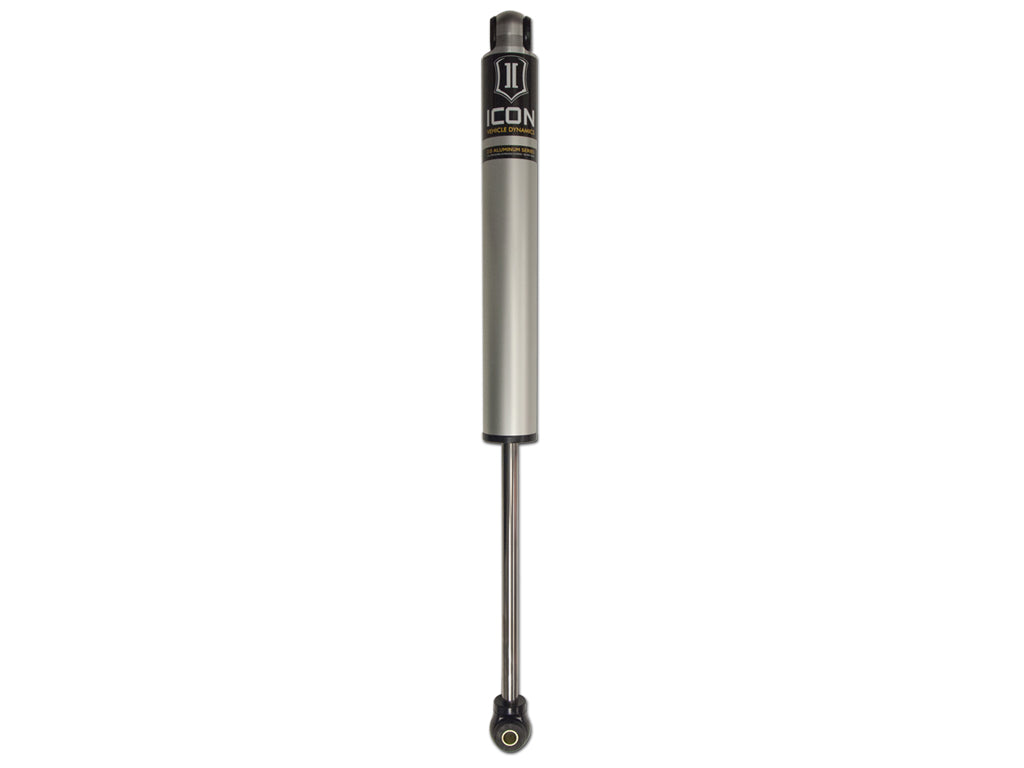

ICON Vehicle Dynamics 56513 - 12-15 HILUX REAR 2.0 VS NR
Product Availability Request
Fill the form and our team will contact you.
2012-2015 HILUX REAR 2.0 VS NON RESERVOIR SHOCK
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Serie s shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 13.550 IN; Fully Open Length: 23.00 IN; Shock Stroke: 9.45 IN; Travel Length: 9.45 IN |
| Body Diameter | 2 IN |
| Boot Included | NO |
| Adjustable | NO |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Title | 12-15 HILUX REAR 2.0 VS NR |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Finish | Anodized |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Lower Mount Type | EYELET |
| Upper Mount Type | EYELET |
| Mounting Hardware Included | No |
| Coil Over Springs Included | NO |
| Dust Shield | NO |
| Remote Reservoir | NO |
| Grade Type | Performance |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
