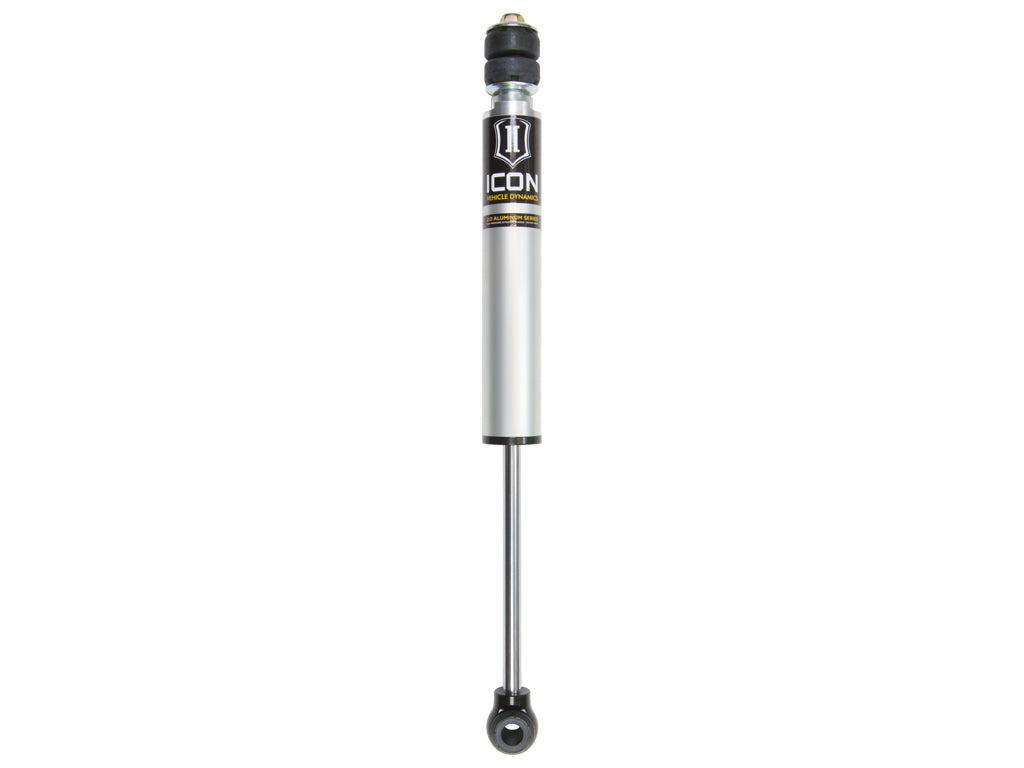

ICON Vehicle Dynamics 56514 - 96-02 4RUNNER 0-2" REAR 2.0 VS NR
Couldn't load pickup availability
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 100% revalveable
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Rod Diameter | .625 IN |
| Shaft Diameter | 0.625 IN |
| Quantity | 1 |
| Shock Absorber Bore Size | 1.75 IN |
| Bore Diameter | 1.75 IN |
| Maximum Ride Height Raising Distance | 2 IN |
| Cylinder Outside Diameter | 2 IN |
| Body Diameter | 2 IN |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Add-On Part | 53015 - 96-02 4RUNNER 1" REAR COIL SPRING KIT |
| Body Material | Aluminum |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Bushing Color | Black |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Valving Type | Digressive |
| Reservoir Type | Emulsion |
| Lower Mount Type | EYELET |
| Body Color | Gray |
| Cylinder Color | Gray |
| Title | ICON 1996-2002 Toyota 4Runner, 0-2" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Non-Reservoir |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Stem; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 13.100 IN; Fully Open Length: 21.55 IN; Shock Stroke: 8.45 IN; Travel Length: 8.45 IN |
| Valving Type | Linear |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Self-Leveling | No |
| Boot Included | NO |
| Adjustable Rebound | No |
| Dust Shield Included | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Adjustable Damping | No |
| Coil Over Springs Included | NO |
| Dust Boot Included | No |
| Dust Shield | NO |
| External Reservoir | No |
| Remote Reservoir | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Bushing Material | Polyurethane |
| Bushing Material | Rubber |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Bushing Included | yes |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Cylinder Material | Aluminum |
| Material | Steel |
| Material | Aluminum |
| Shaft Material | Chrome |
| Color | Gray |
| Color | Black |
| Color | Silver |
Installation Guide: Download PDF
