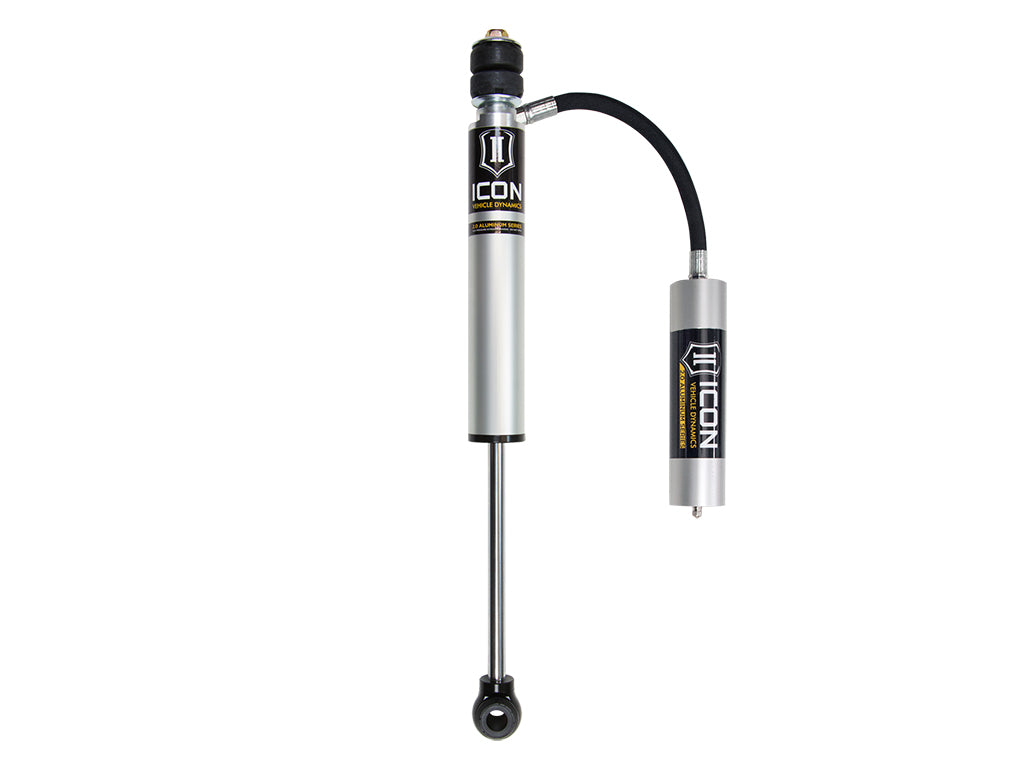

ICON Vehicle Dynamics 56516R - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.0 VS RR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_22 | 1 |
| AAP_UDA_12 | EA |
| Active or Passive Suspension | Passive |
| Body Diameter | 2 IN |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Body Material | Aluminum |
| Body Color | Gray |
| Adjustable Compression | No |
| Adjustable Ride Height | No |
| Adjustable Rebound | No |
| Adjustable Damping | No |
| Bushing Material | Polyurethane |
| Remote Reservoir | Yes |
| Service Parts | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Reservoir Diameter | 2 IN |
| Reservoir Hose Inside Diameter | .25 IN |
| Reservoir Hose Length | 21 IN |
| Reservoir Length | 8 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Shaft Material | Chrome |
| Type | Telescopic |
| Upper Mount Stem Overall Length | 2.5 IN |
| Upper Mount Stem Thread Size | M12 - 1.25 |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Valving Type | Linear |
| Boot Color | Black |
| Boot Included | Yes |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Rubber |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Spring Insulator(s) Included | No |
| Color | Gray |
| Color | Black |
| Color | Silver |
| Compressed Length | 16.1 IN |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | Yes |
| Dust Shield | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| Extended Length | 25.5 IN |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Shock Stroke | 9.4 IN |
| Suspension Type | Spring |
| Travel Length | 9.4 IN |
| External Reservoir | Yes |
| Internal Rebound Spring | No |
| Lower Mount Bushing Inside Diameter | .75 IN |
| Lower Mount Bushing Overall Length | 1.825 IN |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Ride Height Raising Distance | 0 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
Note: APPLICATION NOTE #17: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs APPLICATION NOTE #19: Compatible with 0-3.5” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension APPLICATION NOTE #23: Compatible with 0-4” of rear lift on Sequoias without TRD Off Road package or 0-2" of rear lift on Sequoias equipped with TRD Off Road package and Sequoia TRD Pro. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
Short Description: SHOCK ABSORBER
Invoice Description: 56516R
Definition: Suspension Shock Absorber
Installation Guide: Download PDF
Warranty: 1 Year
