ICON Vehicle Dynamics 57827CP - 22-23 LC 300 0-2" REAR 2.5 VS RR CDCV PAIR

Name: ICON Vehicle Dynamics 57827CP - 22-23 LC 300 0-2" REAR 2.5 VS RR CDCV PAIR
Brand: ICON
SKU: 57827CP
Price: 1547.75 USD
Availability: InStock

$1,547.75 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

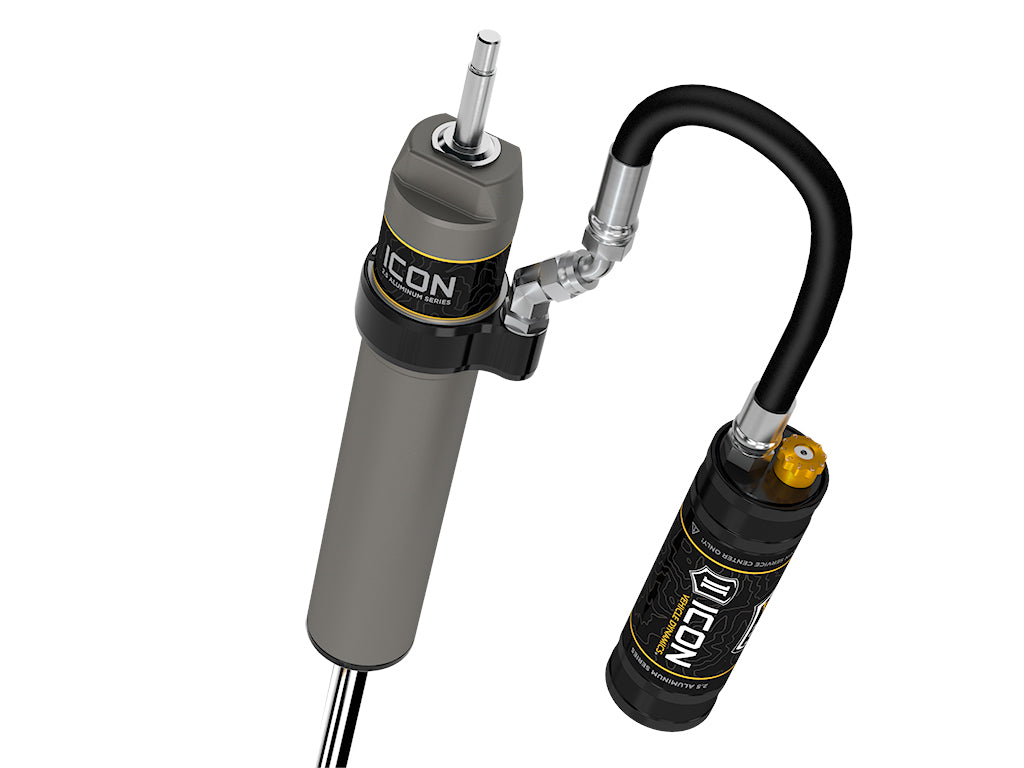

ICON VS 2.5 Aluminum Series CDCV shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs with damping adjustment and are rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series CDCV shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features & Benefits

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
100% Rebuildable
100% Revalveable
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
6061 aircraft grade aluminum CNC machined components
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Damping	Yes
Boot Included	NO
Bore Diameter	2.25 IN
Shaft Diameter	0.875 IN
Tube Outside Diameter	2.5 IN
Cylinder Material	Aluminum
Shock Absorber Rod End Measuring Point	Center of Eylet
Shaft Material	Chrome
Lower Mount Type	EYELET
Cylinder Color	Grey

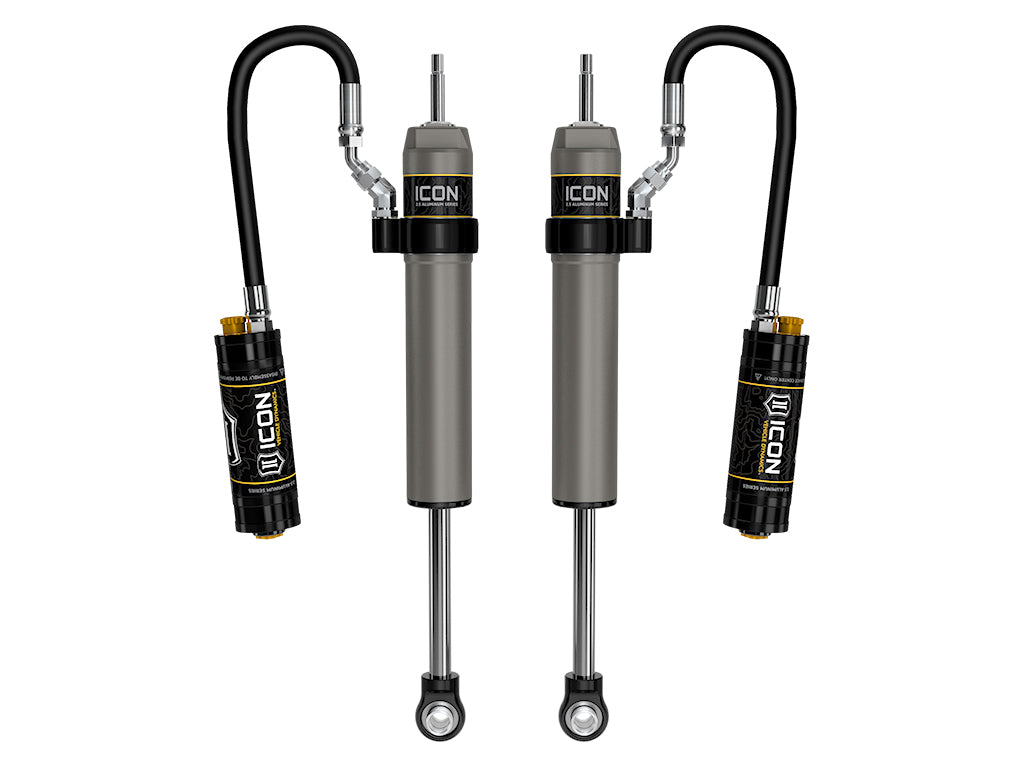

Title	ICON 2022-2023 Toyota Land Cruiser 300 Series, 0-2” Lift, Rear, 2.5 VS Remote Reservoir CDCV Shocks, Pair
Damping Adjustment Type	Manual
Damping Type	Oil
Grade Type	Performance
Shock Absorber Body End Measuring Point	Shoulder of Stem
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
External Reservoir	Yes
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Service Parts	611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
Service Parts	191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts	257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
