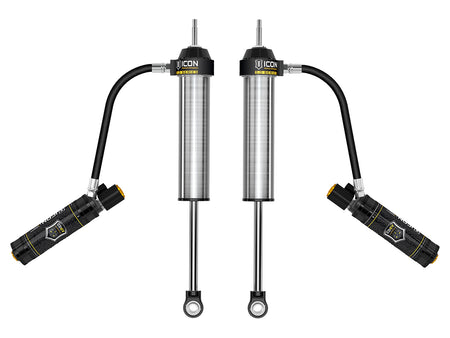

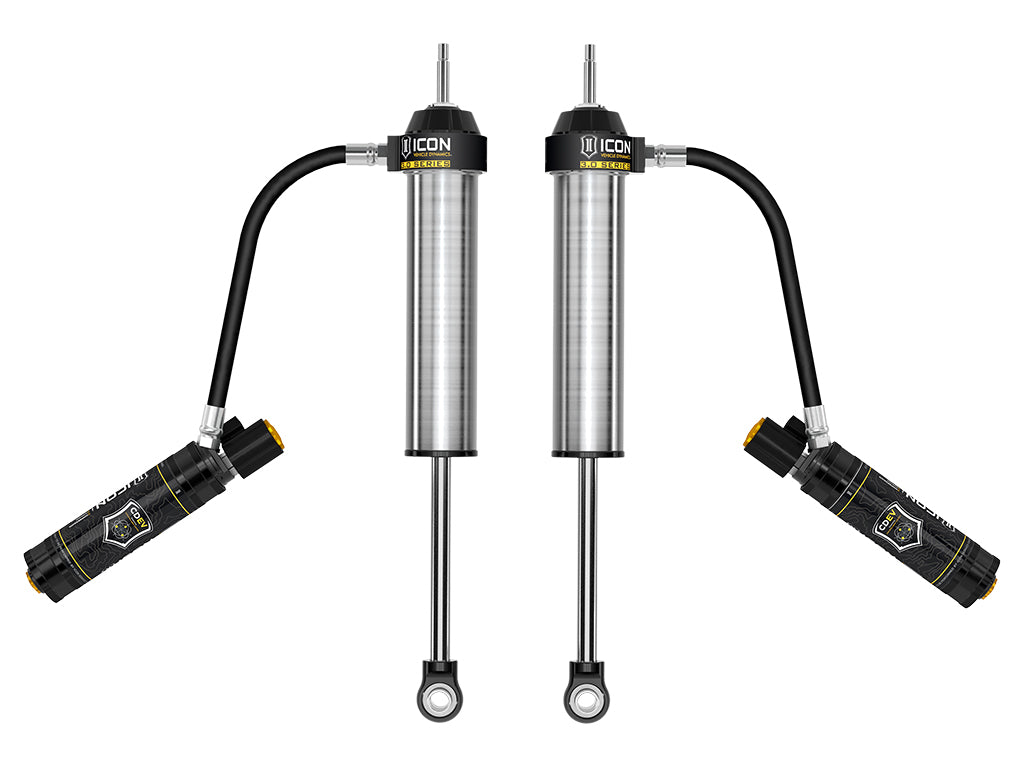

ICON Vehicle Dynamics 57845EP - 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDEV PAIR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.
ICON's 3.0 Series Rear Shocks with CDEV for 2022-2026 Toyota Tundra/2023-2026 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20% and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5" over stock on Tundra or up to 4" of rear lift on Sequoia. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use. ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEVβs hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5β over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Features

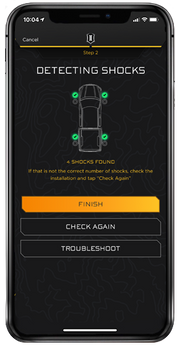

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Fully Rebuildable and Re-tunable
- 20% increase in rear suspension travel compared to stock
- Compatible with up to 1.5β of rear lift on most Tundra models or 3" of lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0β Body diameter for increased oil volume and larger piston area
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8β diameter induction hardened, chrome plated shock shafts
- Corrosion resistant CAD plated steel shock bodies
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| California Prop 65 Warning | Yes |
| Bore Diameter | 2.75 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Active or Passive Suspension | Active |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Compressed Length | 16.43 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Reservoir Type | Remote |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Cylinder Color | Grey |
| Cylinder Diameter | 3 IN |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Extended Length | 25.56 IN |
| External Reservoir | Yes |
| Shaft Material | Chrome |
| Add-On Part | 58775E - 22-26 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVER KIT |
| Add-On Part | 58770E - 22-26 TUNDRA/23-25 SEQUOIA 2.5 VS RR CDEV COILOVER KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 53508 - 22-26 TUNDRA/23-25 SEQUOIA IIC INSTALL KIT |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Stroke Length Rear | 9.13 IN |
| Tube Outside Diameter | 3 IN |
| Upper Mount Type | Stem |
| Valving Type | Linear/Digressive |
Note: APPLICATION NOTE #17: Compatible with 0-1.5β of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs APPLICATION NOTE #19: Compatible with 0-3.5β of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension APPLICATION NOTE #23: Compatible with 0-4β of rear lift on Sequoias without TRD Off Road package or 0-2" of rear lift on Sequoias equipped with TRD Off Road package and Sequoia TRD Pro. APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
Short Description: SHOCK ABSORBER PAIR
Invoice Description: 57845EP
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
