ICON Vehicle Dynamics 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
Couldn't load pickup availability

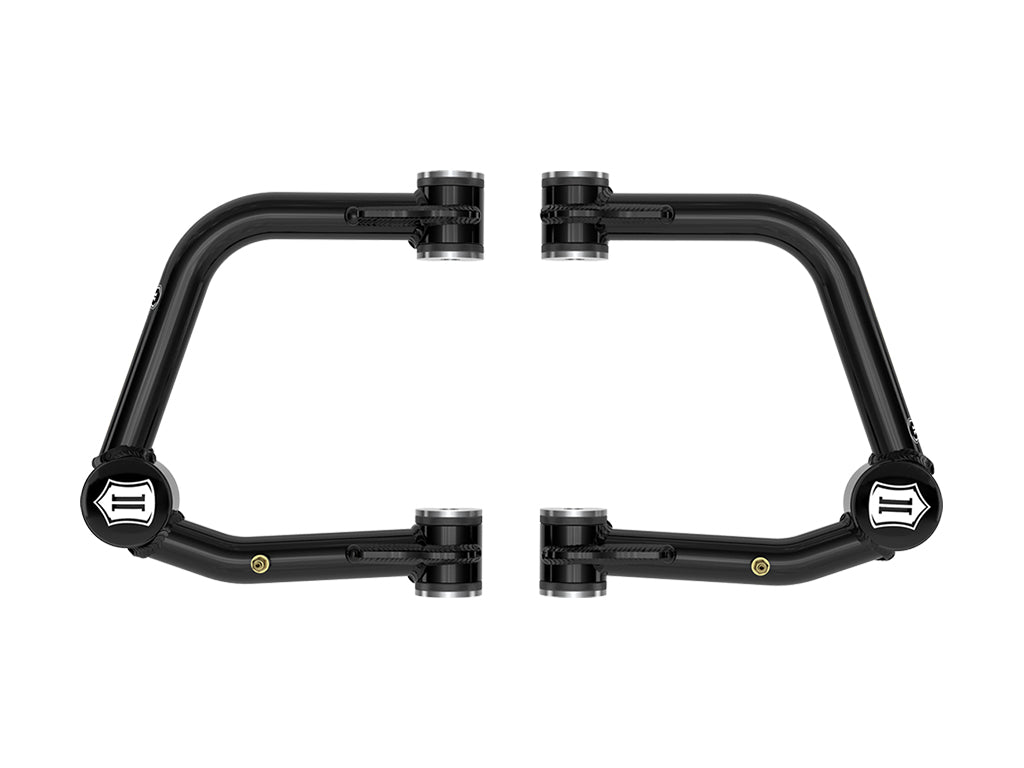

ICON tubular UCAs feature 1026 DOM tube construction, urethane bushings, and ICON’s rebuildable Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
These tubular steel upper control arms free up your 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, or 2024-2025 Lexus GX550's front suspension movement to allow maximum travel for performance coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage semi-gloss black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the Toyota Tacoma, Land Cruiser 250 Series, 4Runner, and the Lexus GX550.
Features & Benefits
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- Serviceable dual stage polyurethane pivot bushings
- CNC machined housings for bushings and Delta Joint PRO
- 1026 DOM tube construction with black powder coat finish
- Includes billet dust caps for Delta Joint PRO
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | No |
| Adjustable Control Arm | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Recommended Aftermarket Wheels | 17x8.5" with 5.75” Backspace / 25mm Offset |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| End 2 Type | BALL JOINT |
| Control Arm Color | Black |
| Color | Black |
| End 1 Type | Bushing |
| Control Arm Material | DOM Steel |
| Material | DOM Steel |
| Recommended Aftermarket Wheels | ICON Alloys - 18" x 9" with 6.6" Backspace / 40mm Offset |
| Mounting Bracket Included | No |
| Quantity | Pair |
| Grade Type | Performance |
| Finish | Powdercoat |
| Construction | Tubular |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Assembled | Yes |
| Reinforced | Yes |
| Pre-Greased | Yes |
| Grease Fitting Included | yes |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Service Parts | 614530 - 58452DJ / 58461DJ REPLACEMENT BUSHING AND SLEEVE KIT |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Attachments Included | No |
| Set | Yes |
| Title | ICON 2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2024-2025 Lexus GX550/2025 Toyota 4Runner, Front, Tubular Upper Control Arms w/ Delta Joint Pro |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
