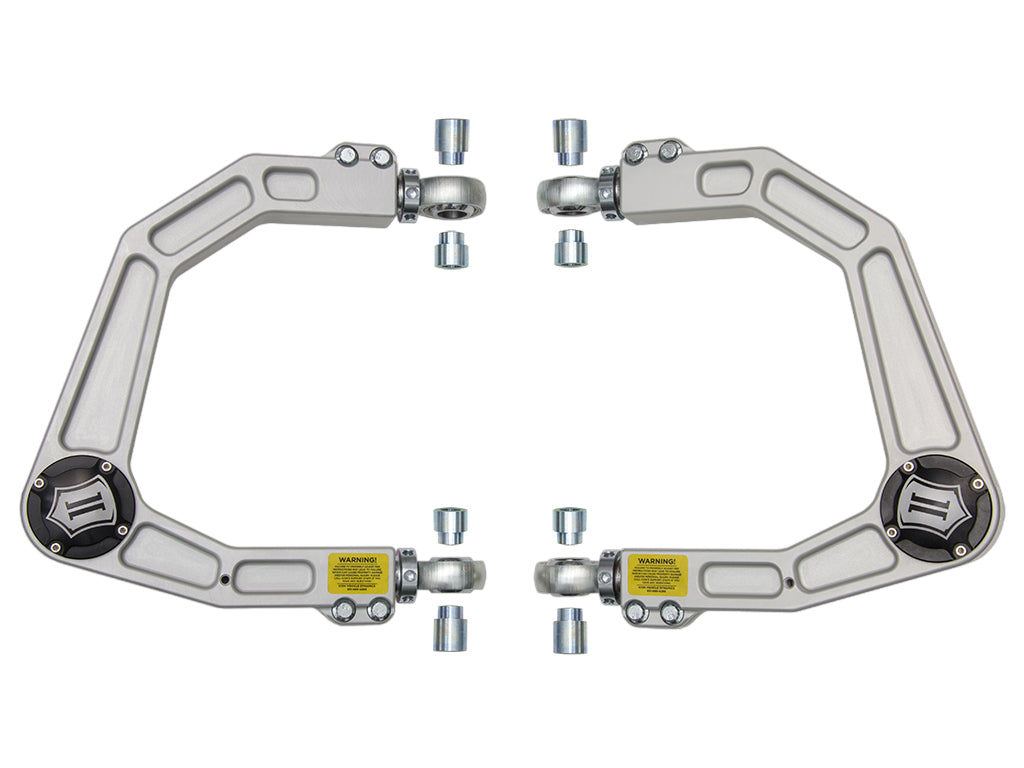

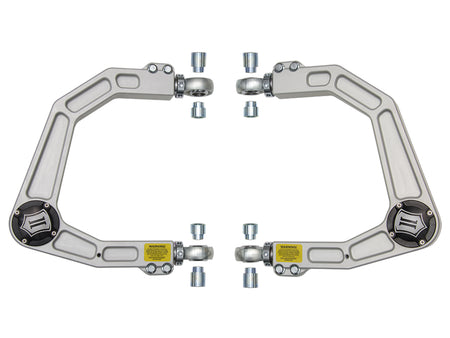

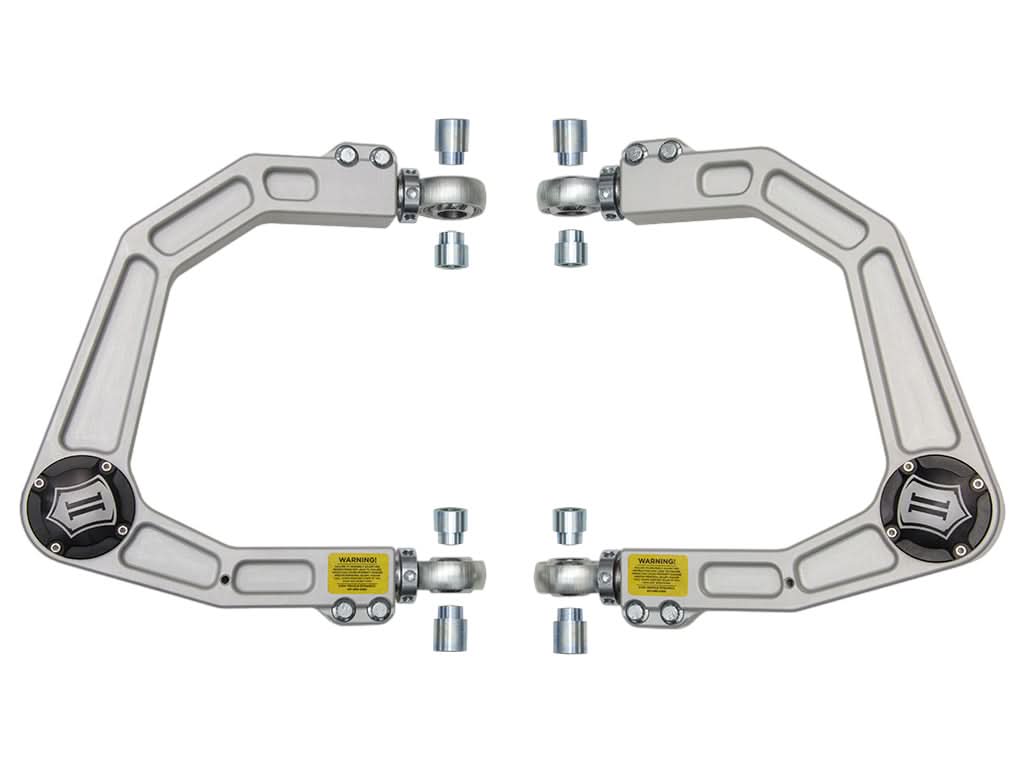

ICON Vehicle Dynamics 58560DJ - 07-21 TUNDRA/08-22 SEQUOIA BILLET UCA DJ KIT

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.

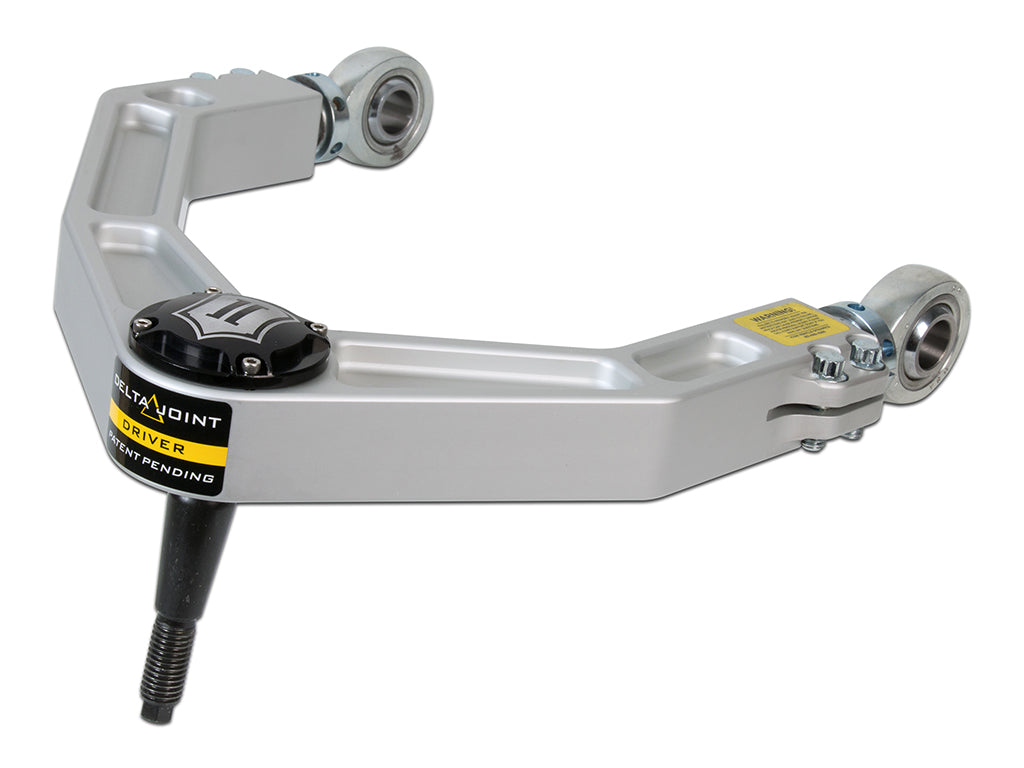

Take the performance of your 2007-2021 Toyota Tundra or 2008-2022 Toyota Sequoia to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 2007-2021 Toyota Tundra or 2008-2022 Toyota Sequoia. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features

• ICON Delta Joint
• CNC Machined 6061 Billet Aluminum Construction

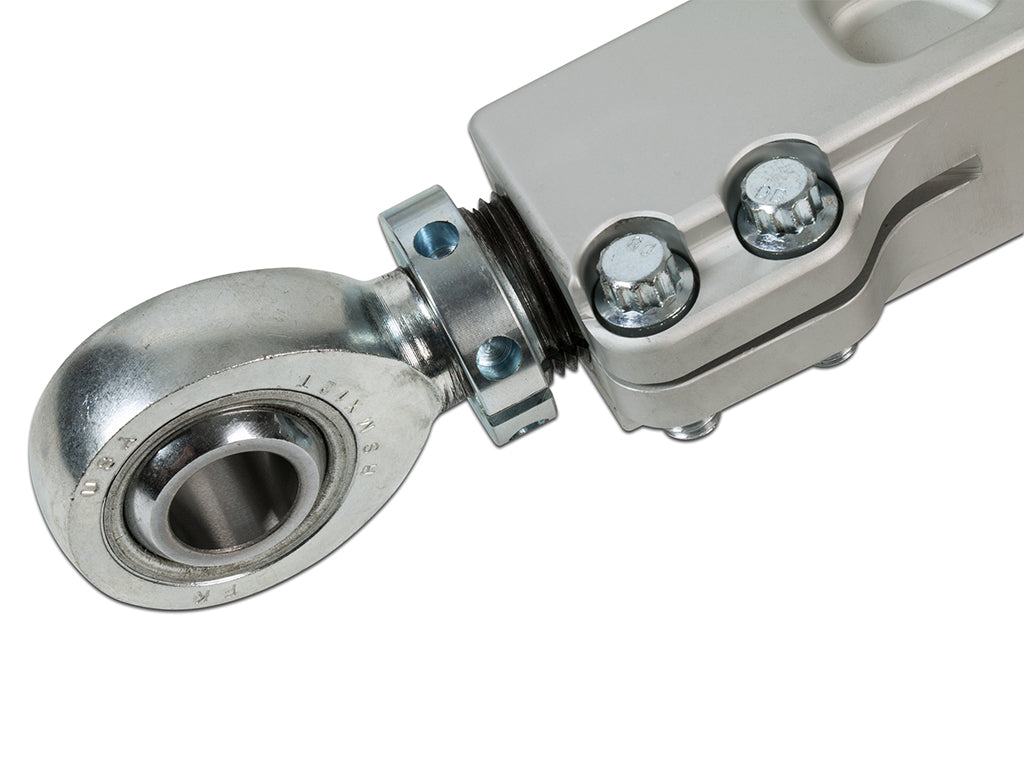

• Quality PTFE-lined ¾” FK Rod Ends
• On-Vehicle Adjustable For Quick And Precise Alignment
• Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
• Matte Anodized Finish Provides Exceptional Corrosion Resistance
• O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements

Specifications

Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 35" x 12.50" APPLICATION NOTE #110: Trimming required for recommended tire size TECH NOTE: NOT compatible with all subframe-drop lift kits or aftermarket spindles. TECH NOTE: Geometry optimized for 0-3" of front lift over stock

Short Description: UPPER CONTROL ARMS

Invoice Description: 58560DJ

Definition: Suspension Control Arm Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: 5 Years-Delta Joints, Limited Lifetime-Control Arms
