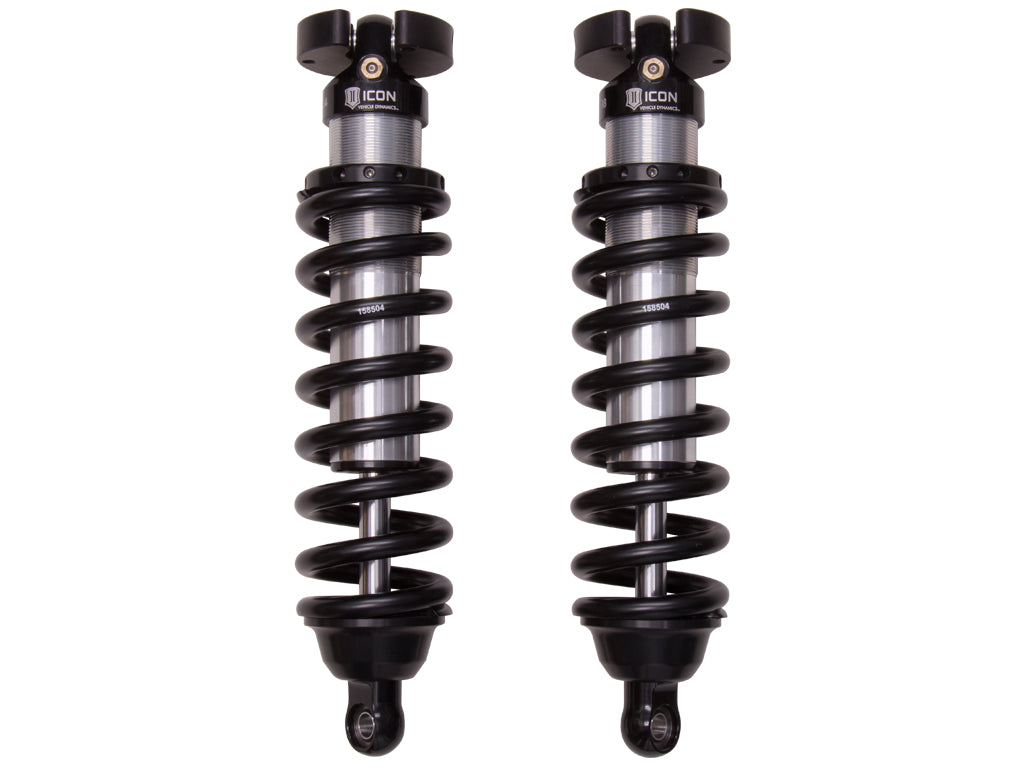

ICON Vehicle Dynamics 58615-700 - 96-04 TACOMA/96-02 4RUNNER EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These adjustable coilovers allow up to 0-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma or Toyota 4Runner.
Features
- Increased wheel travel and improved ride quality over stock
- Extended Travel length requires installation of aftermarket front upper control arms
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3" of front lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Dust Shield Included | No |
| Adjustable Damping | NO |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 5.36 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Compressed Length | 14.5 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Extended Length | 19.85 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT |
| Add-On Part | 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires (Tacoma): 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) Recommended Aftermarket Tires (4Runner): 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
Short Description: COILOVER KIT
Invoice Description: 58615-700
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
