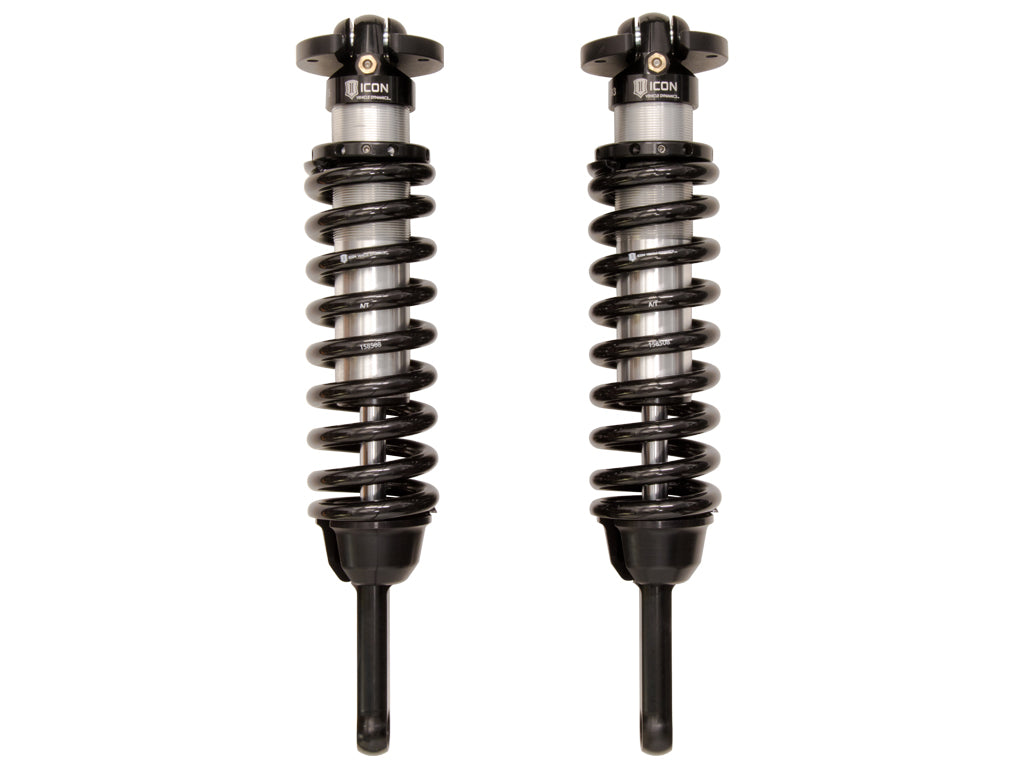

ICON Vehicle Dynamics 58630-700 - 05-23 TACOMA 2.5 VS IR COILOVER KIT-700
Product Availability Request
Fill the form and our team will contact you.
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.17 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 4.76 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #50: 700lb/in spring rate only recommended for trucks with additional weight added to front end APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75” APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
Short Description: COILOVER KIT
Invoice Description: 58630-700
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
