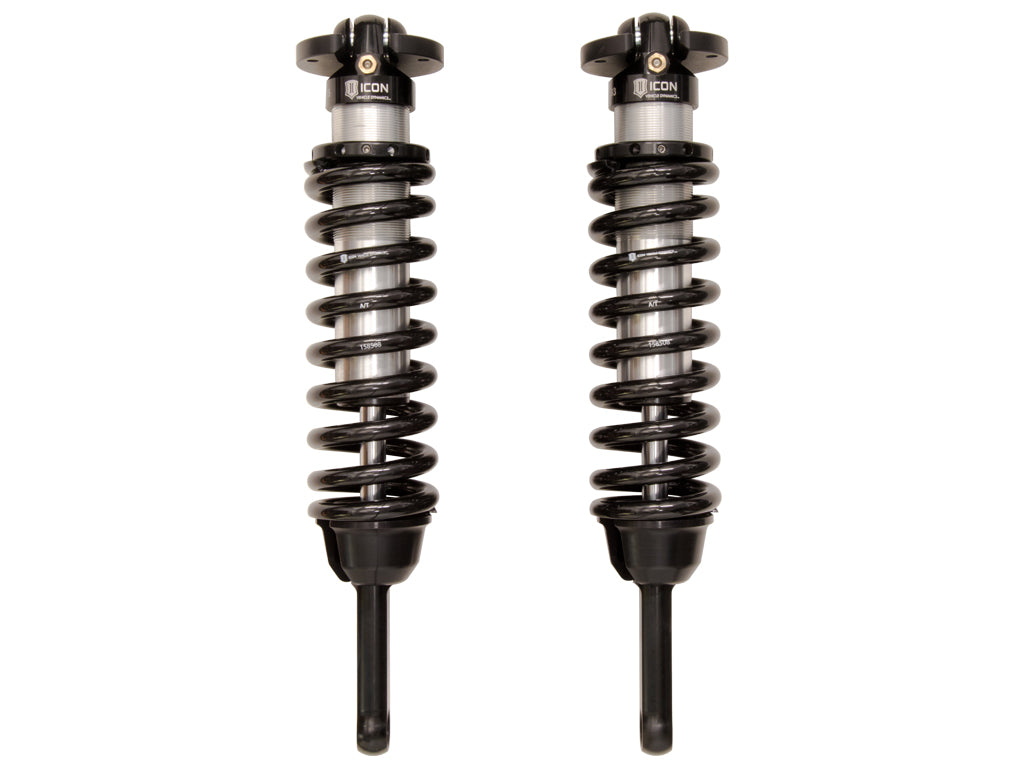

ICON Vehicle Dynamics 58640 - 07-09 FJ/03-09 4RNR/03-09 GX 2.5 VS IR COILOVER KIT

Name: ICON Vehicle Dynamics 58640 - 07-09 FJ/03-09 4RNR/03-09 GX 2.5 VS IR COILOVER KIT
Brand: ICON
SKU: 58640
Price: 1518.35 USD
Availability: InStock

$1,518.35 USD

In Stock - Fast Shipping

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

2007-2009 FJ CRUISER/2003-2009 4RUNNER/2003-2009 GX470 2.5 VS INTERNAL RESERVOIR COILOVER KIT

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Features & Benefits

Adjustable coilovers yield 0-3.5" of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" shaft
FK Rod End bearings provide extended longevity and minimal deflection
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Remote Reservoir	NO
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts	252010 - 2.5 IFP REBUILD KIT
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts	611019 - COILOVER HARDWARE KIT PAIR
Service Parts	257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Service Parts	252004 - ECONOMY NEEDLE CHARGING TOOL
Service Parts	611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter	0.875 IN
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate	650 PPI
Spring Rate Type	Linear
Title	07-09 FJ/03-09 4RNR/03-09 GX 2.5 VS IR COILOVER KIT
Travel Length	4.76 IN
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Add-On Part	51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Adjustable Compression	No
Adjustable Damping	NO
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5 IN
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included	Yes
Compressed Length	17.42 IN
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.17 IN
Front Spring Rate	650 PPI
Gas Charged	yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum
Maximum Lift	3.5 IN
Maximum Ride Height Raising Distance	3.5 IN
Minimum Lift	0 IN
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
