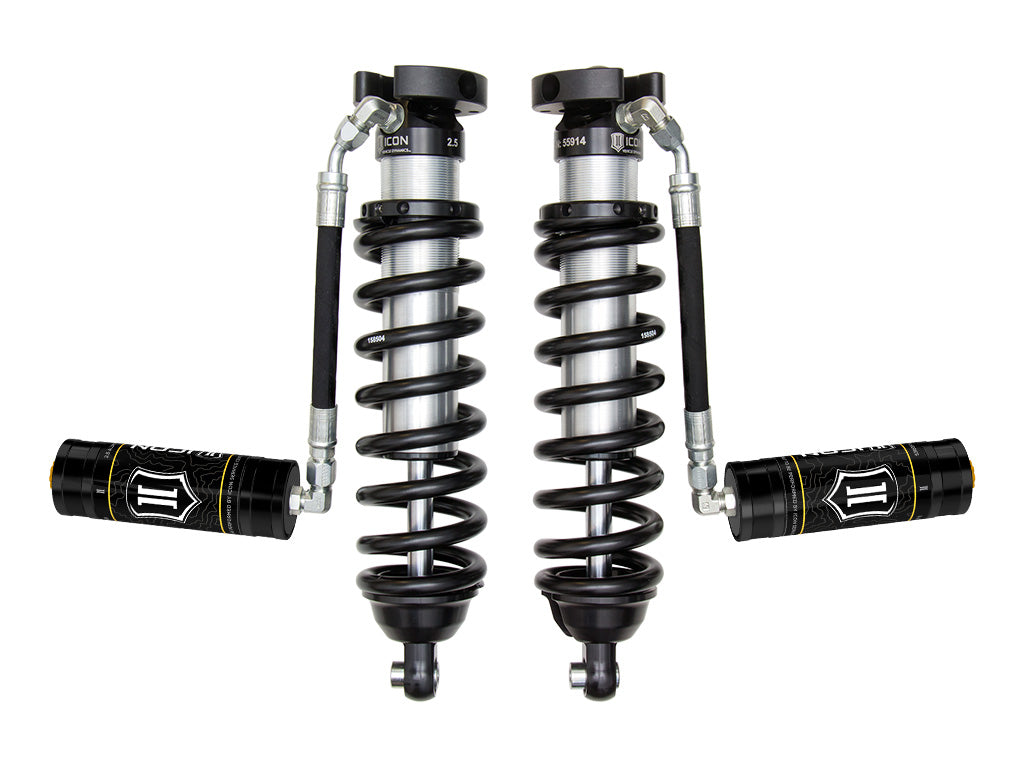

ICON Vehicle Dynamics 58715-700 - 96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
Couldn't load pickup availability
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.
Features & Benefits
- Increased wheel travel over stock
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned front shocks for superior shock damping and control
- External reservoir to attain cooler operating temperatures during extended off-road use
- Improved ride quality over stock on and off-road
- Height-adjustable coilovers offer 0-3" of lift height adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
- FK Rod End bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable Compression | No |
| Dust Shield Included | No |
| Adjustable Damping | NO |
| Active or Passive Suspension | Passive |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Extended Length | 19.85 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 1996-2004 Toyota Tacoma, 0-3" Lift, Front,V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir, 700 lbs/in Spring Rate |
| Travel Length | 5.36 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| Compressed Length | 14.5 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
