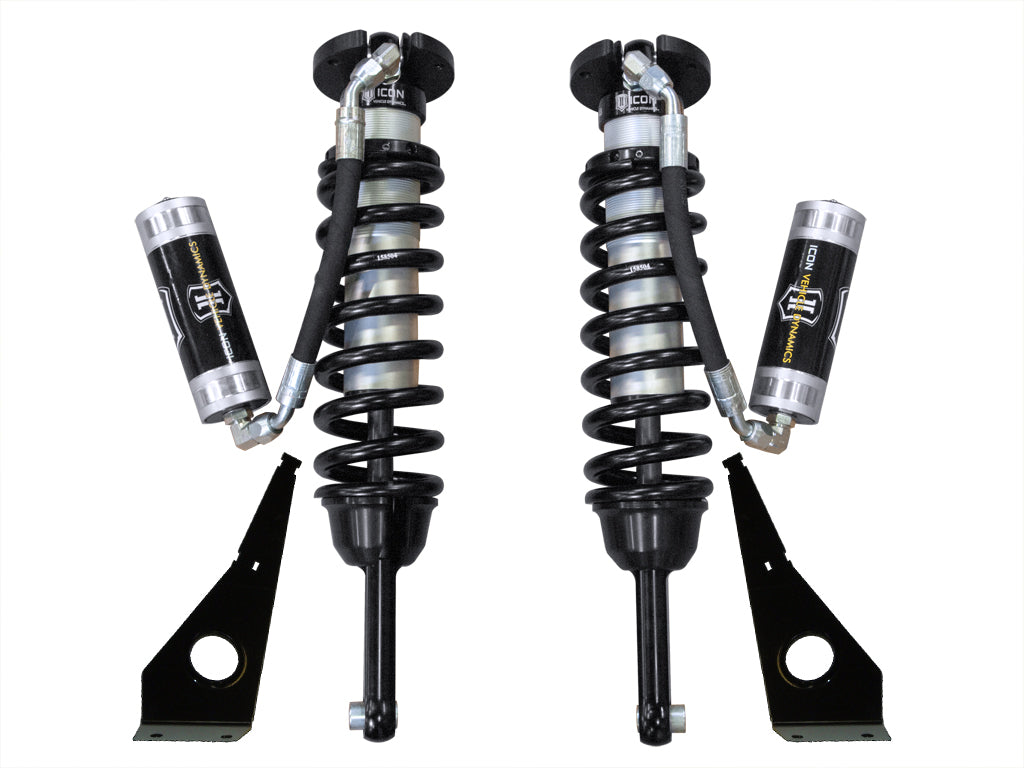

ICON Vehicle Dynamics 58730-700 - 05-23 TACOMA 2.5 VS RR COILOVER KIT 700LB
Couldn't load pickup availability
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features & Benefits
- Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
- External Reservoirs Ensures Maximum Cooling
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- Vehicle specific tuned for superior shock damping and control
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearings
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Active or Passive Suspension | Passive |
| Add-On Part | 51045 - TOYOTA .25” BUMP STOP SPACER KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.17 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir Coilover Kit, 700 lbs/in Coils |
| Travel Length | 4.76 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
