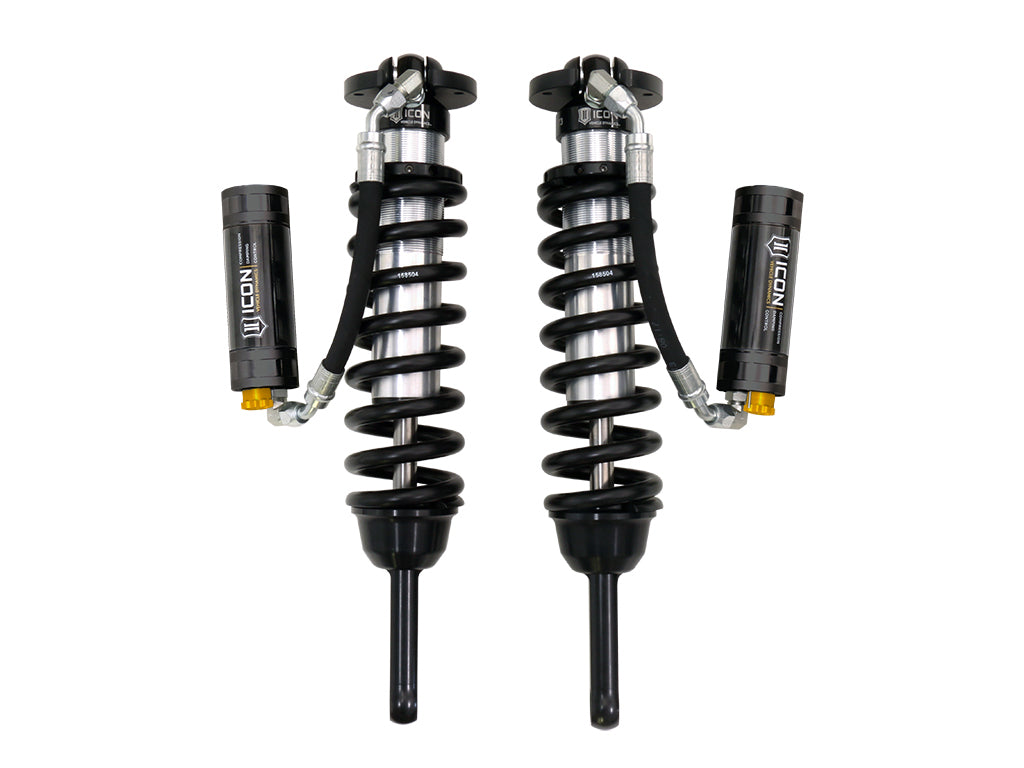

ICON Vehicle Dynamics 58731C-700-CB - 05-23 TACOMA 2.5 VS RR CDCV COILOVER KIT W PROCOMP 6"
Couldn't load pickup availability
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma equipped with the Pro Comp 6” lift kit. These coilovers offer lift height adjustability, allowing fine tuning of ride height or the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Features & Benefits
- Increased wheel travel and improved ride quality over stock
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers with application specific length for fitment with Pro Comp 6" lift kits
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 21.82 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 26.77 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2005-2023 Toyota Tacoma 2.5 VS Remote Reservoir w/ CDCV Coilover Kit for Pro Comp 6” Lift, 700 lbs/in Coils |
| Travel Length | 4.96 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation / Product Video: Watch on YouTube
