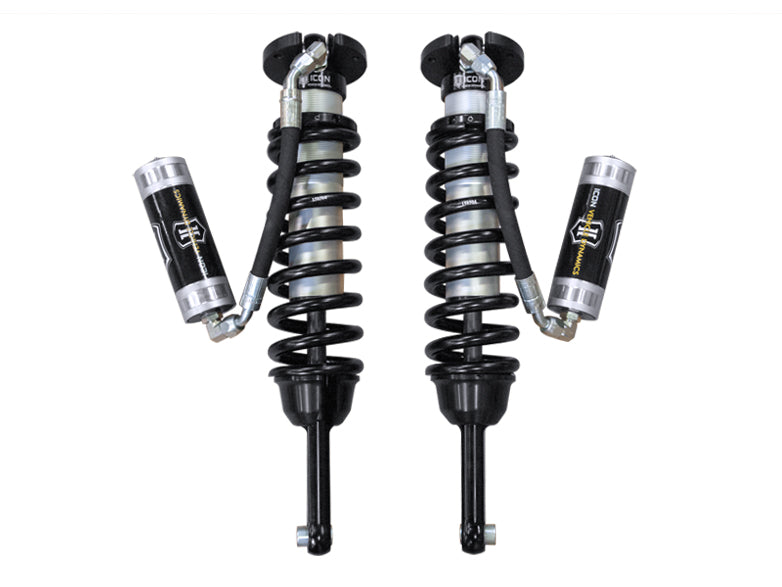

ICON Vehicle Dynamics 58747-700 - 10-14 FJ/10-24 4RNR/10-23 GX EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB
Product Availability Request
Fill the form and our team will contact you.
These extended-travel ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable.
The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
Features & Benefits
- Adjustable coilovers yield 0-3.5" of front lift height
- Bolt-in design makes for an easy install into OEM shock location
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Extended Travel length requires installation of aftermarket front upper control arms
- Superior low speed control reduces body roll and increases on-road stability
- External reservoir to attain cooler operating temperatures during extended off-road use
- High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.57 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2010-2024 Toyota 4Runner/2010-2014 Toyota FJ Cruiser/2010-2023 Lexus GX, V.S. 2.5 Series Extended Travel Coilover Kit, Remote Reservoir, 700 lbs/in Coils |
| Travel Length | 5.16 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Shipping Information
Free shipping is available for eligible orders.
Shipping: For USA - Up to 50lbs.
Orders are processed during normal business days. Delivery dates may vary by carrier and destination.
