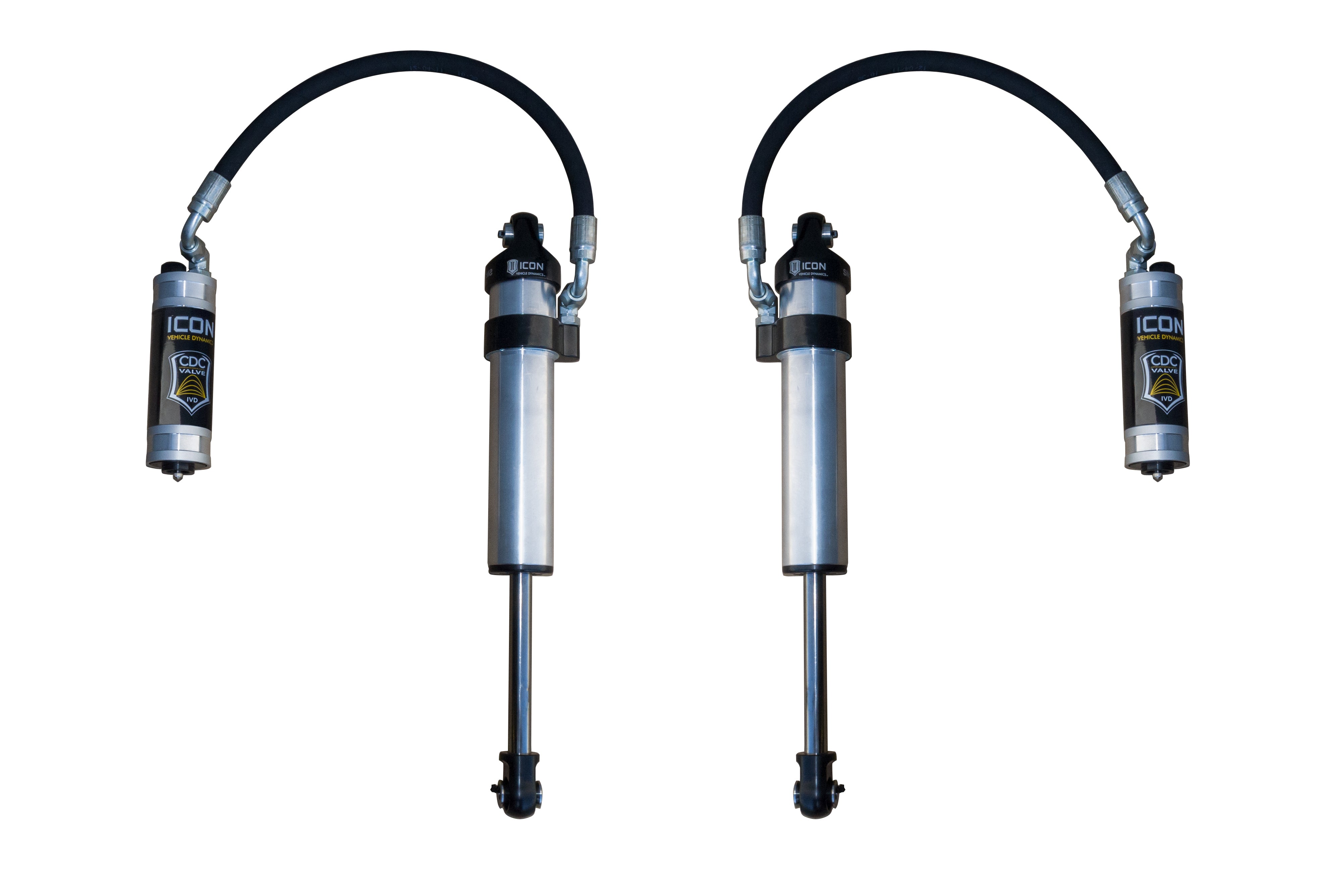

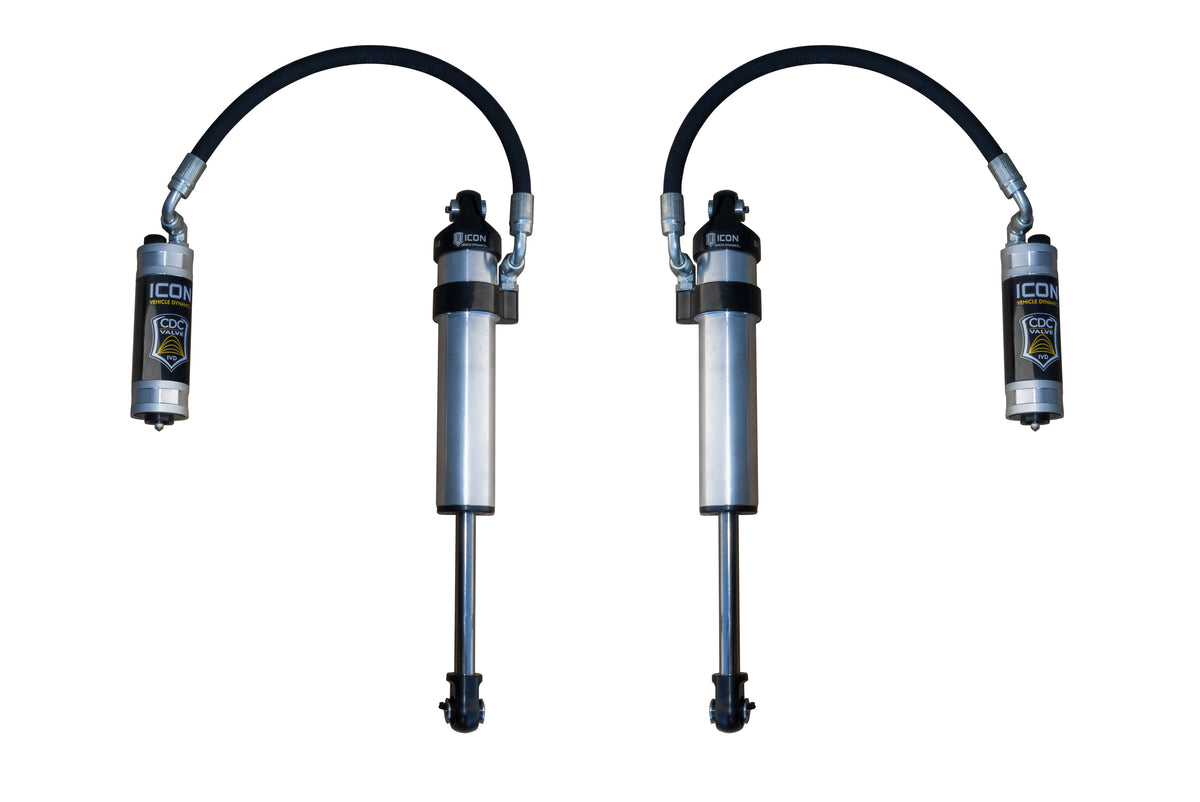

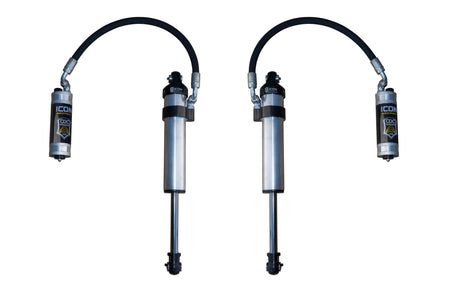

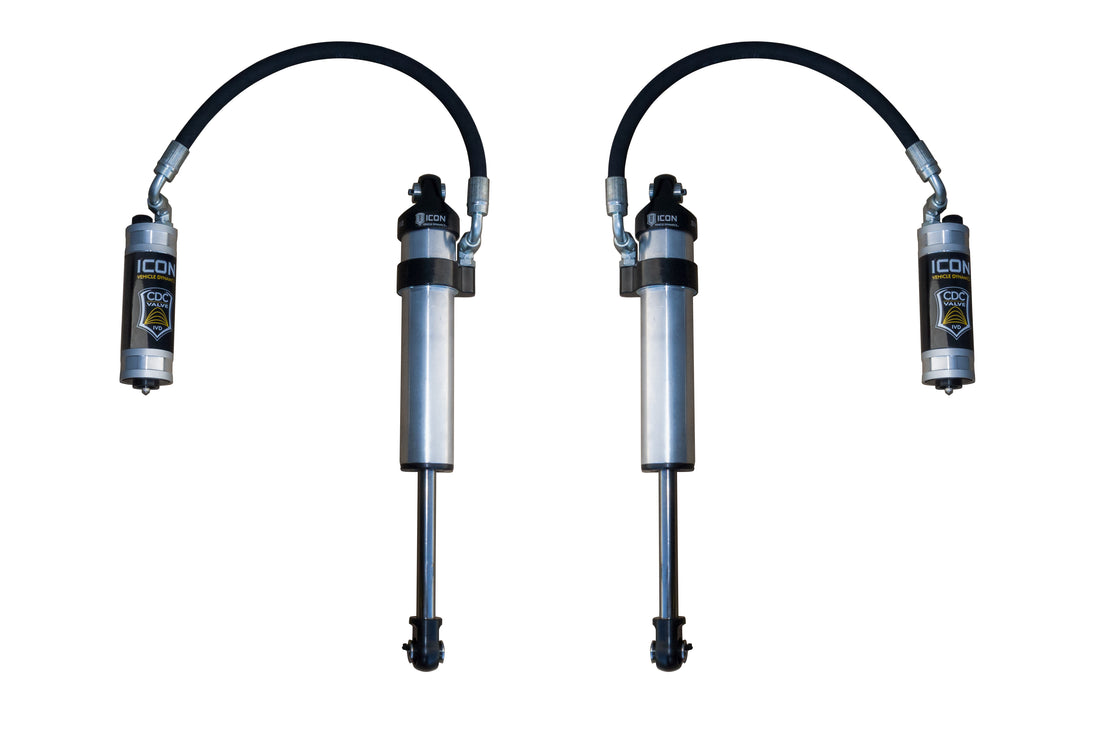

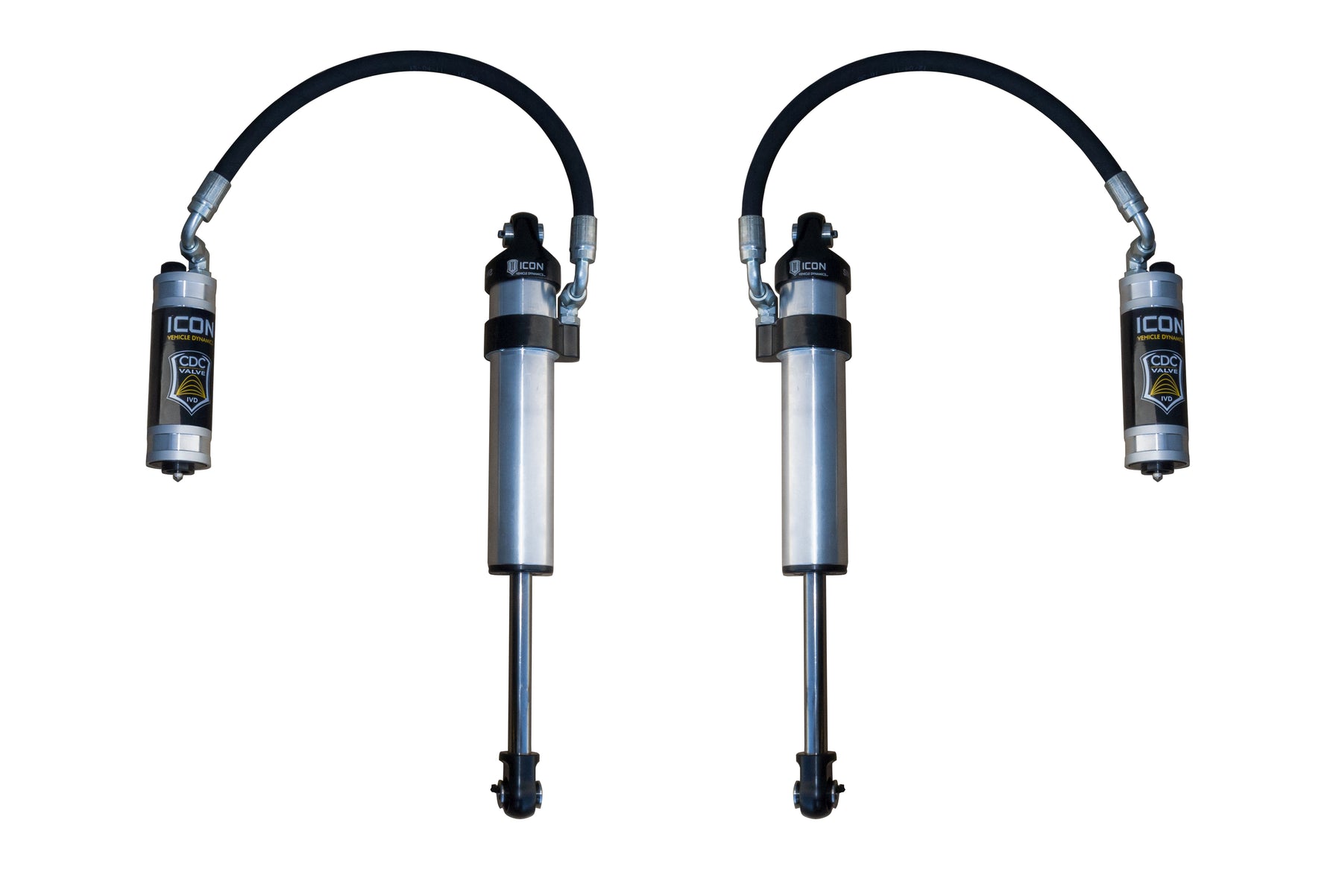

ICON Vehicle Dynamics 59702CP-CB - TOYOTA SECONDARY STOCK TRAVEL 2.5 RR CDCV PAIR

Name: ICON Vehicle Dynamics 59702CP-CB - TOYOTA SECONDARY STOCK TRAVEL 2.5 RR CDCV PAIR
Brand: ICON
SKU: 59702CP-CB
Price: 1634.95 USD
Availability: InStock

$1,634.95 USD

Backorder Available

Free shipping — For USA - Up to 50lbs.

90-day returns — free, no restocking fees

Check warranty — from description

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs, damping adjustability, and are 100% rebuildable/revalveable.

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features & Benefits

Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
6061 aircraft grade aluminum CNC machined components
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardw
ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Nitrogen charged monotube design with remote reservoir
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

Specifications

AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable	Yes
Adjustable Damping	Yes
Boot Included	NO
Bore Diameter	2.25 IN
Shaft Diameter	0.875 IN
Tube Outside Diameter	2.5 IN
Cylinder Diameter	2.5 IN
Cylinder Material	Aluminum
Shock Absorber Rod End Measuring Point	Center of Eylet
Shock Absorber Body End Measuring Point	Center of Eylet
Shaft Material	Chrome
Lower Mount Type	EYELET
Upper Mount Type	EYELET
Cylinder Color	Gray
Title	ICON 2003-2024 Toyota 4Runner/2005-2023 Toyota Tacoma/2007-2014 Toyota FJ Cruiser, Front, 2.5 VS Stock Width Remote Reservoir w/ CDCV Secondary Shocks, Pair
Damping Adjustment Type	Manual
Damping Type	Oil
Grade Type	Performance
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
External Reservoir	Yes
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Service Parts	257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Service Parts	191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
