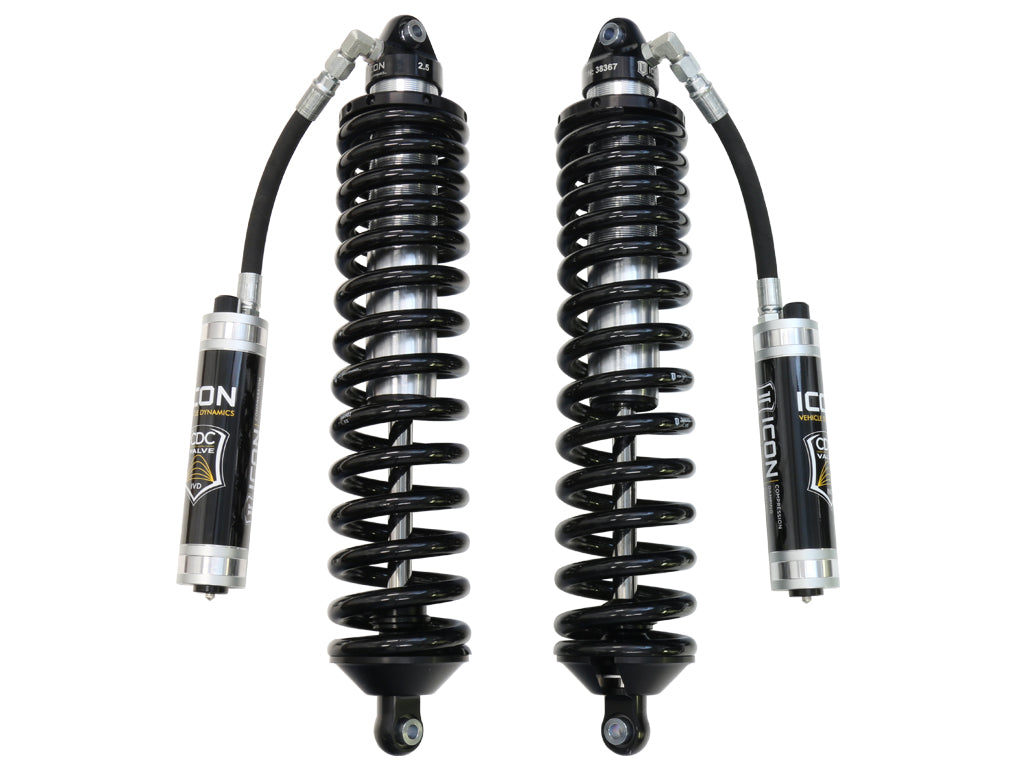

ICON Vehicle Dynamics 61700C - 08-16 FSD 4WD 7-9" 2.5 VS RR CDCV COILOVER KIT
$2,183.95
USD
Backorder Available
✓
This product fits
Also fits
Confirmed by selected vehicle fitment
Engine
Based on selected vehicle
Drivetrain
Based on selected vehicle
!
This product does not fit
i
No fitment data available for this product, Verify Fitment manually.
FITMENT CHECK
Will This Fit Your Vehicle?
Product Availability Request
Fill the form and our team will contact you.
Free shipping
— For USA - Up to 50lbs.
90-day returns
— free, no restocking fees
Check warranty
— from description
2008-2016 FSD 4WD 7-9" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Progressive Dual Rate |
| Title | 08-16 FSD 4WD 7-9" 2.5 VS RR CDCV COILOVER KIT |
| Travel Length | 9.49 IN |
| Upper Mount Type | Eyelet |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.49 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 25.98 IN |
| Front Spring Rate | 390 PPI |
| Front Spring Rate | 550 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 9 IN |
| Maximum Ride Height Raising Distance | 9 IN |
| Minimum Lift | 7 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 191015 - 10" FINNED RESI UPGRADE KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Center of Eylet |
✓
