ICON Vehicle Dynamics 64035 - 05-16 FSD ADJ TRACK BAR W/FK ROD END
Product Availability Request
Fill the form and our team will contact you.

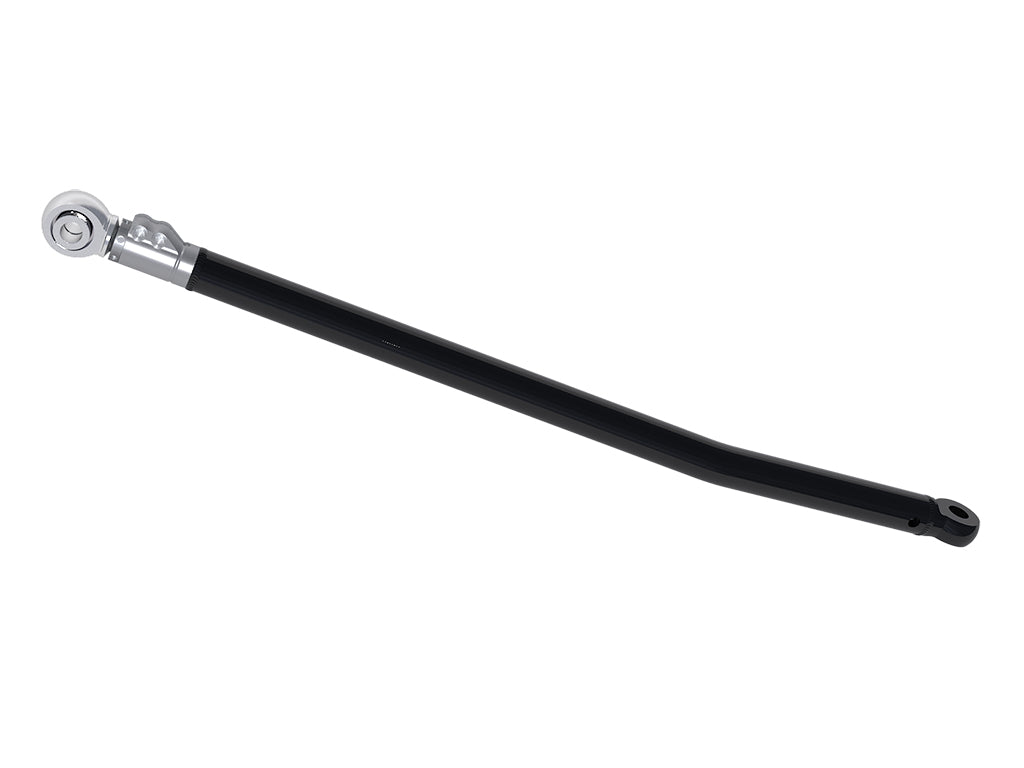

ICON’s adjustable track bar installs using factory hardware and can be adjusted on the truck. Bar comes complete with FK rod end bearings and machined rod end spacers to eliminate the deflection of the stock bushing setup.
This adjustable track bar for the 2005-2016 Ford F-250/F-350 and 2005-2026 F-450/F-550 Super Duty models will realign your front-end track alignment within factory specifications. It can be used on vehicles with 0" - 9" of lift but any lift over 5.5" will require the use of a drop-down bracket for the track bar. This track bar can easily be installed using factory hardware and can be adjusted on the truck without the need for removal. This track bar comes complete with FK rod end bearing and machined rod end spacers to eliminate the deflection of the stock bushing setup.
Features
- Fits 2005-2016 Ford F-250/F-350 and 2005-2026 F-450/F-550 Super Duty trucks
- Helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable for precise track alignment using ICON’s double adjuster
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
- Black powder coat finish for corrosion resistance
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
| Adjustable | Yes |
| Adjustment Range | 1.12 IN |
| Bushing Color | Silver |
| Bushing Material | Rod End Bearing |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Castle Nut Included | No |
| Color | Black |
| Cotter Pin Included | No |
| Dust Boot Included | No |
| End 1 Type | Rod End Bearing |
| End 2 Type | Ring |
| Finish | Powdercoated |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Pre-Greased | No |
Note: APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #493: Compatible with 0-5.5" of front lift with OE track bar bracket. Front lift heights above 5.5" require appropriate track bar drop bracket. APPLICATION NOTE #494: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry for 2.5-5.5" of front lift
Short Description: FSD FRONT TRACK BAR
Invoice Description: 64035
Definition: Suspension Track Bar
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: Lifetime
