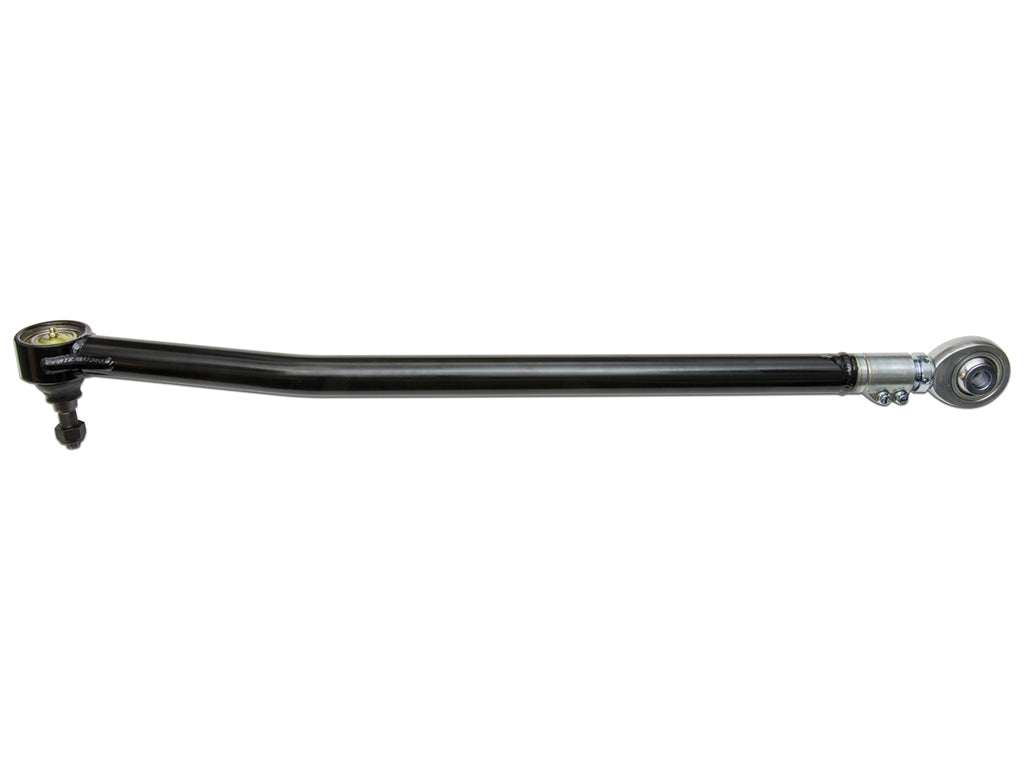

ICON Vehicle Dynamics 64038 - 17-25 FSD ADJ TRACKBAR KIT
Couldn't load pickup availability
This ICON adjustable track bar will allow the proper alignment of your lifted truck’s steering geometry, delivering increased strength, control, and proper axle positioning while reducing stress on related steering components.
The ICON Adjustable Track Bar helps center the axle of your lifted 2017-2025 Ford F-250 and F-350 Super Duty and allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with greaseable and replaceable OE style ball joint at the other end yields the best combination of maximum travel and articulation while also removing bushing deflection for improved handling characteristics. ICON’s exclusive rod end Double Adjuster Sleeve allows for fast, easy “on-vehicle” adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1.625” x .250” wall 1026 DOM tubing with CNC machined threaded end and ball joint housing with a multi-stage black powder coat finish. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
Features & Benefits
- Helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable for precise track alignment using ICON’s double adjuster
- Greaseable and replaceable OE style ball joint
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
- Multi-stage black powder coat finish for corrosion resistance
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | Yes |
| Ball Joint Included | Yes |
| Bushing Color | Silver |
| Bushing Material | Rod End Bearing |
| Bushings Included | No |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Color | Black |
| Dust Boot Included | Yes |
| End 1 Type | Rod End Bearing |
| End 2 Type | BALL JOINT |
| Finish | Powdercoated |
| Grade Type | Performance |
| Grease Fitting Included | Yes |
| Greaseable | Yes |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Title | ICON 2017-2025 Ford F-250/F-350 Super Duty, 4WD, Adjustable Track Bar Kit |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT |
