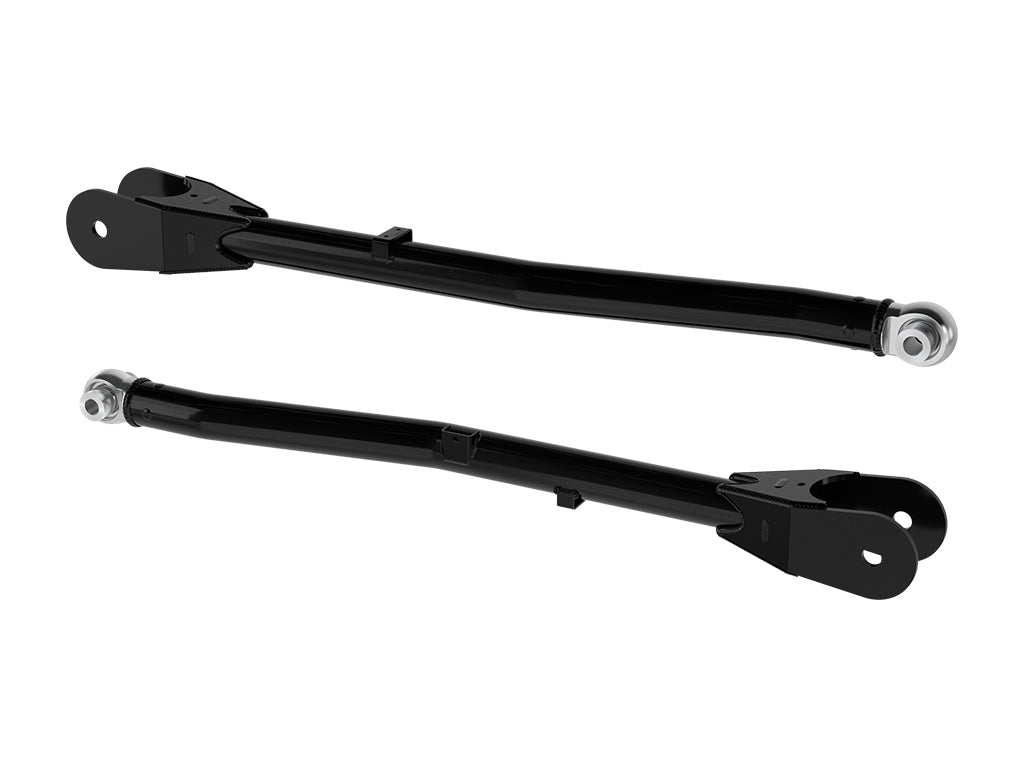

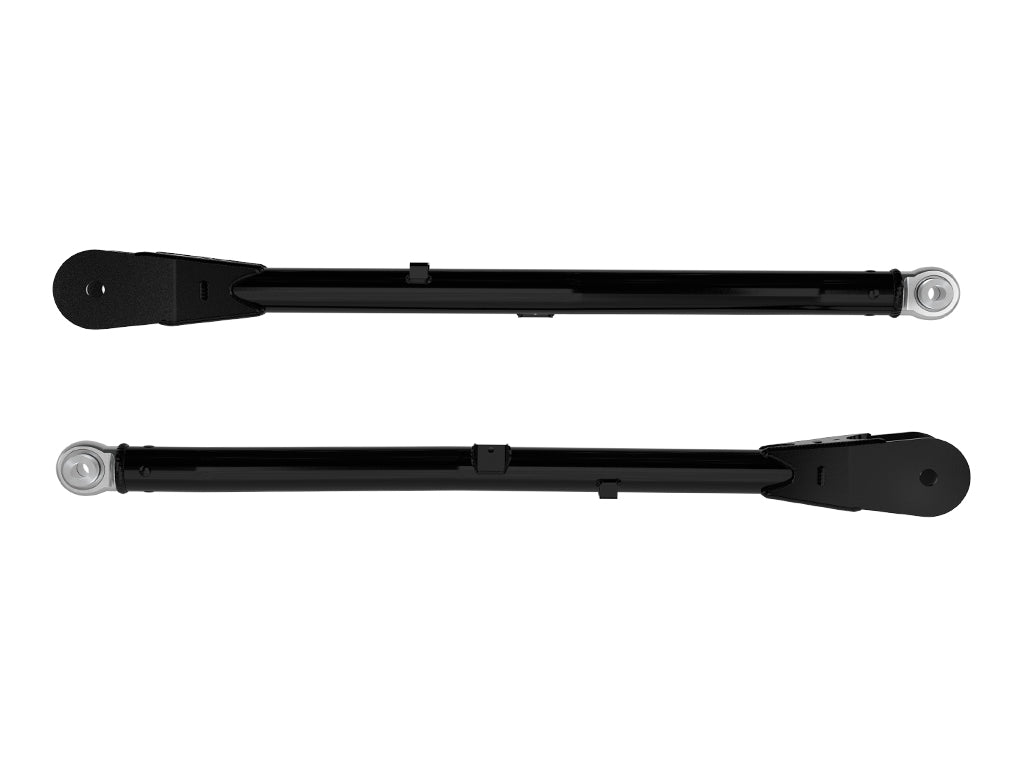

ICON Vehicle Dynamics 64052 - 23-25 FSD FRONT UPPER LINKS
Product Availability Request
Fill the form and our team will contact you.

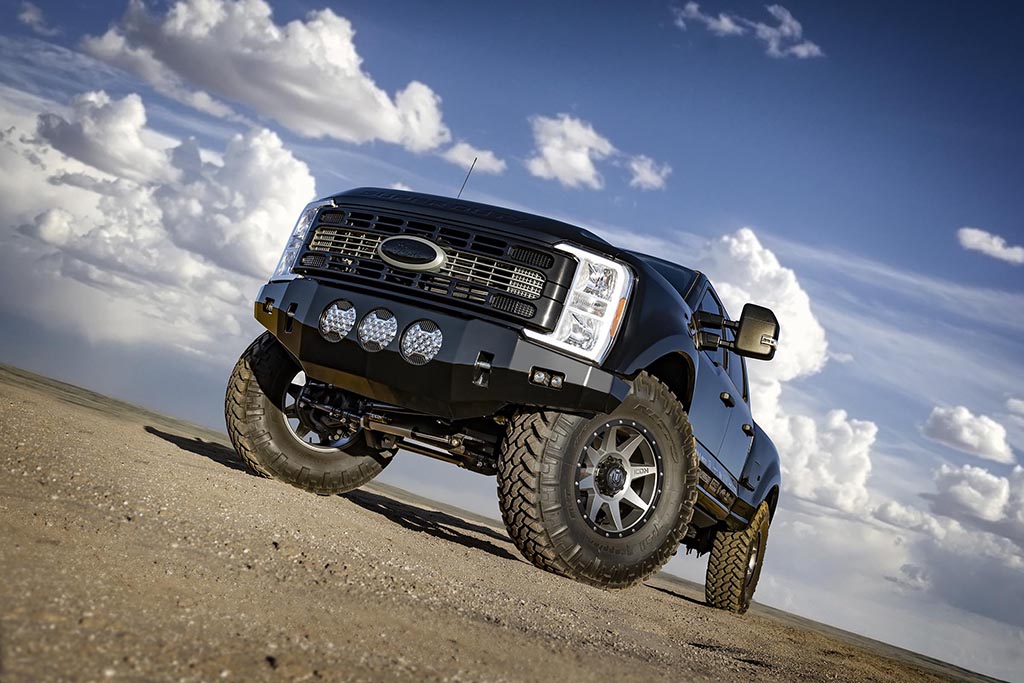

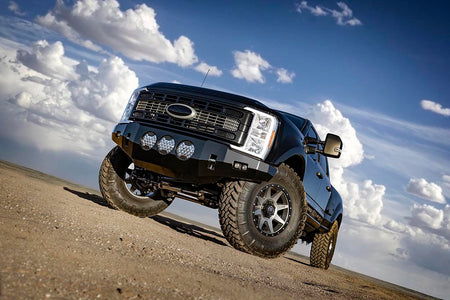

The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.
These upper links are an essential component of the ICON 2023-2026 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process. The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Features
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allow on-vehicle caster adjustment via ICON double adjusters in lower links
- Upper links are constructed from CNC machined 2” x .188” wall DOM steel tubing
- PTFE lined FK spherical bearings eliminate deflection
- Corrosion resistant semi-gloss black powder coat finish
- Fabricated components covered under ICON's Limited Lifetime Warranty
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | No |
| Bushing Material | Rod End Bearing |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Add-On Part | 164502 - 05-25 FSD FRONT LOWER LINKS |
| Add-On Part | 64053 - 23-25 FSD 4-LINK FRAME BRACKET KIT |
| Color | Black |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | DOM Steel |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Material | DOM Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | No |
| Pre-Assembled | Yes |
| Pre-Greased | No |
| Reinforced | Yes |
| Service Parts | 614512 - 64031/214030 BEARING AND RET RING KIT |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
| Tubing Color | Black |
| Tubing Material | Steel |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: Up to 37" x 12.50" APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #485: Compatible with 2.5"-7" of front lift APPLICATION NOTE #523: Requires ICON 4-Link brackets, part number 64053, and ICON lower links, part number 164502, for complete installation.
Short Description: FSD UPPER LINKS
Invoice Description: 64052
Definition: Suspension Control Arm Kit
Warranty: Limited Lifetime
