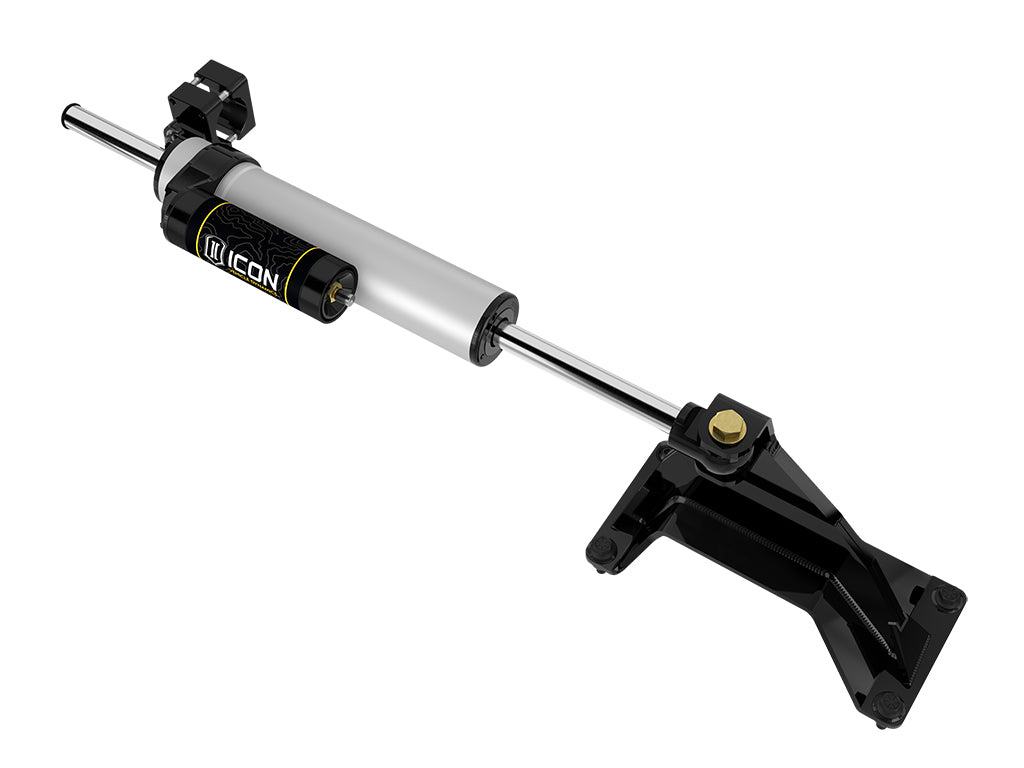

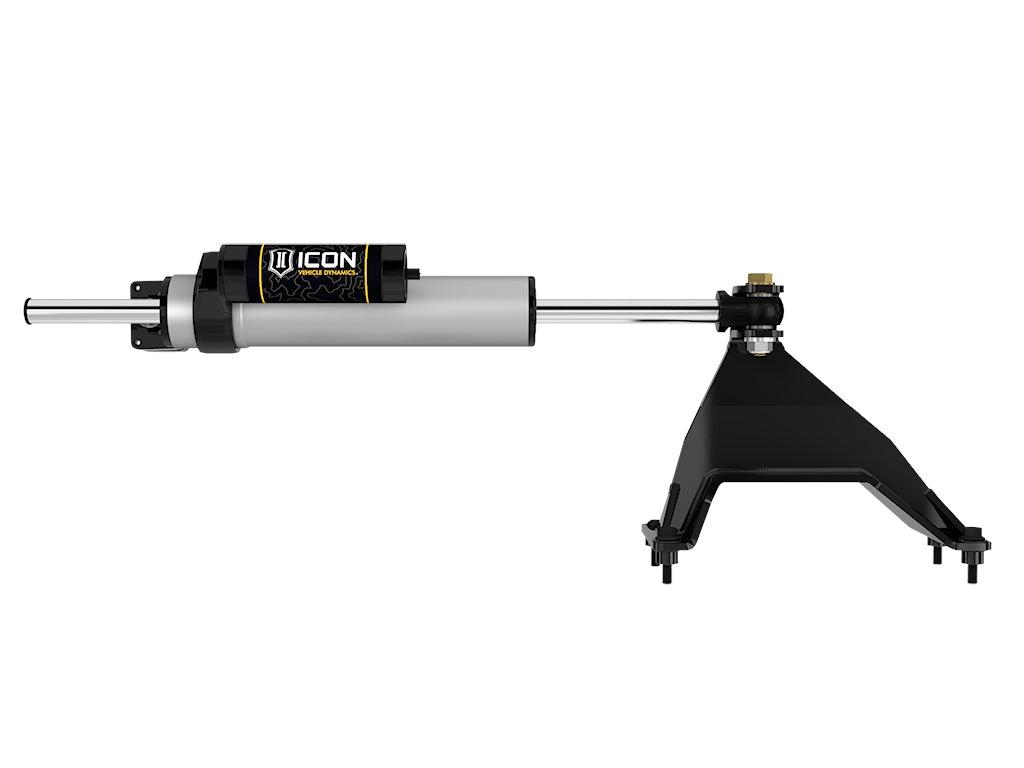

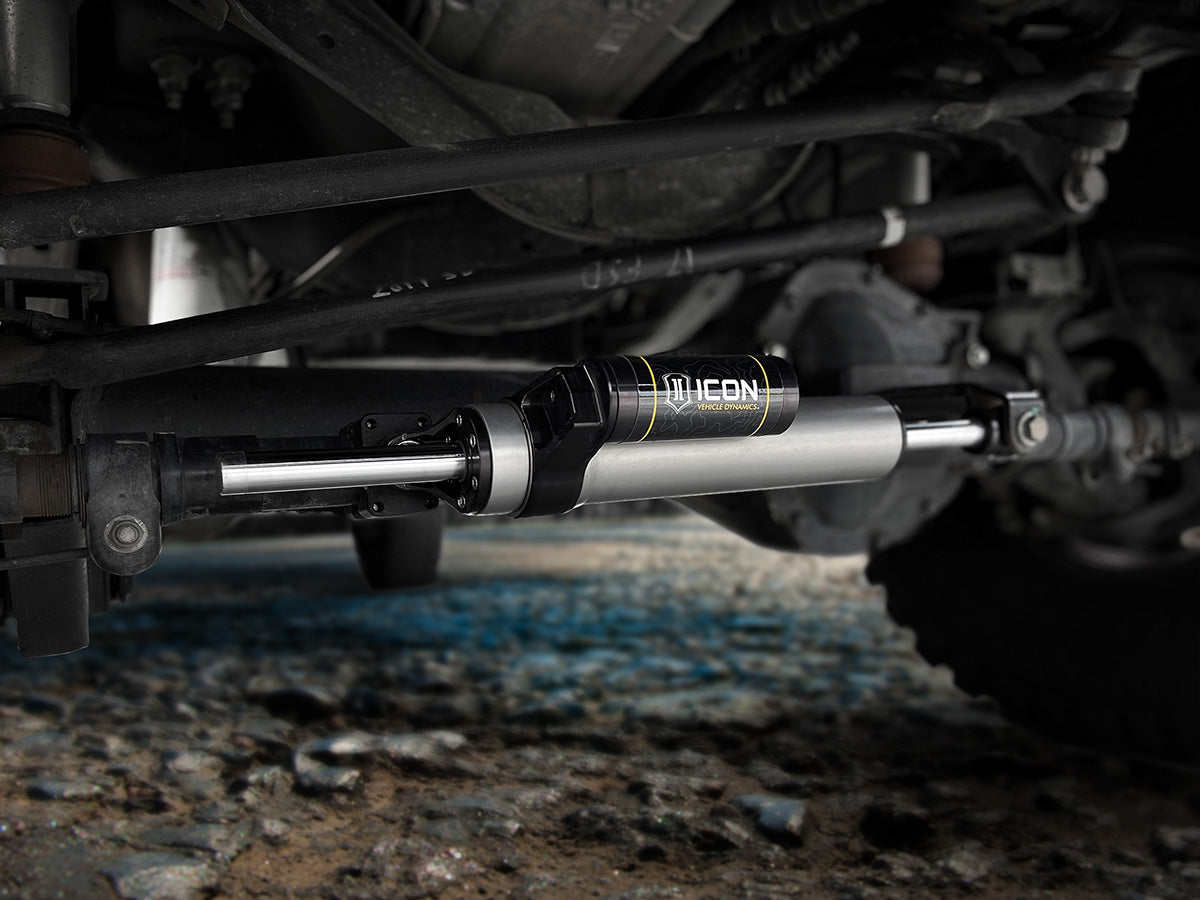

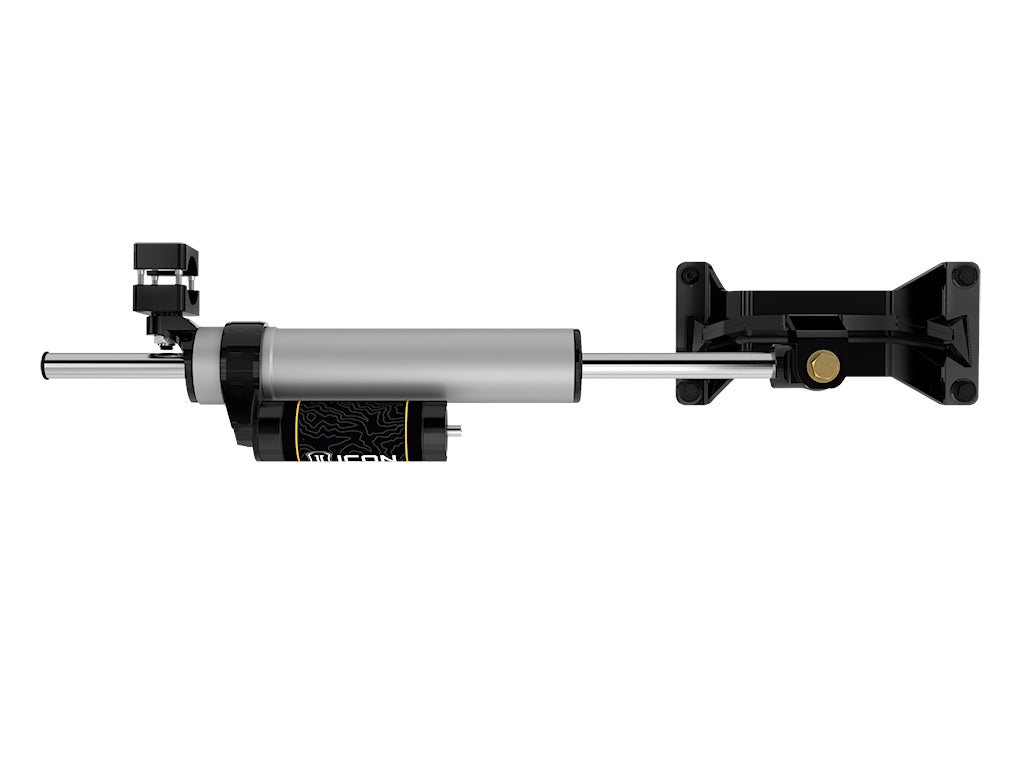

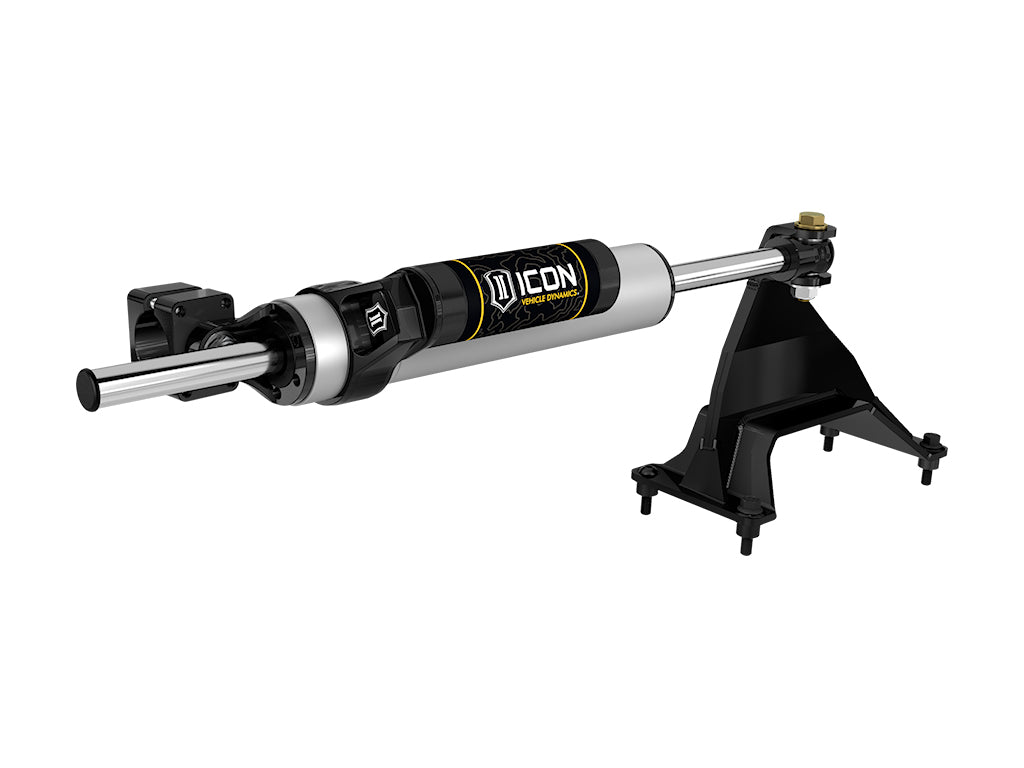

ICON Vehicle Dynamics 65052 - 05-22 FSD 2.5 PB CENTERLINE STABILIZER KIT

Features a 2.5 Series shock with through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers. This unit provides a significant increase in steering damping compared to the stock equipment.

The ICON Centerline Steering Stabilizer features a through-shaft design to eliminate the push/pull sensation associated with traditional steering stabilizers, resulting in more consistent damping and symmetrical steering feel throughout the input range. The large 2.5-inch diameter stabilizer body and piggyback reservoir increases fluid volume to prevent performance fade due to heat and cavitation. This unit provides a significant increase in steering damping compared to the stock equipment, for an improved driving experience with both stock size and oversize aftermarket wheels and tires. The kit also allows for increased steering travel compared to other aftermarket steering stabilizers. The stabilizer body shares components with ICON's proven 2.5 Series shock absorbers, meaning the unit is fully rebuildable. 2.5 Series features a 6061 hard anodized aluminum shock body for excellent corrosion resistance and a beefy 7/8” chrome plated induction-hardened steel shaft. FK Rod End bearings provide precise function & feel throughout steering range. Installation is 100% bolt-on using common hand tools and should be an easy job for both professional mechanics and experienced DIY'ers.

Features

• Through shaft design eliminates the push/pull sensation associated with traditional stabilizers
• FK Rod End bearings for precise function & feel throughout steering range
• 100% bolt-on installation
• Provides symmetrical steering feel throughout input range
• Drastically increased steering damping over stock unit
• Offers increased wheel travel compared to ICON's dual steering stabilizer kit
• Fully rebuildable ICON Vehicle Dynamics 2.5 Series shock
• Piggyback reservoir design
• 6061 hard anodized aluminum shock body provides excellent corrosion resistance
• 7/8” chrome plated induction-hardened steel shaft
• 5WT shock oil for consistent suspension damping along a wide temperature range

Specifications

Note: TECH NOTE: After installation, cycle steering left and right to ensure full range of steering is achievable and stabilizer is installed correctly TECH NOTE: Use ICON 1” front bump stop spacers, part # 61112 (included with kit), unless the suspension system that you are using calls for larger bump stop spacers. If using a non-ICON configuration, cycle the suspension to verify that the stabilizer does not make contact upon full compression. TECH NOTE: Mounts over stock front differential cover, not compatible with most aftermarket covers. TECH NOTE: Not compatible with aftermarket tie rods TECH NOTE: Not compatible with 2008-2010 or 2015-2016 F-350 Dually equipped with Wide Track front axle. For Wide Track Axle equipped trucks, consider part number 65054. TECH NOTE: Not compatible with F-450/F-550. For F-450/F-550 fitment, consider part number 65054.

Short Description: STEERING STABILIZER

Invoice Description: 65052

Definition: Steering Damper Kit

Installation Guide: Download PDF

Warranty: 1 Year
