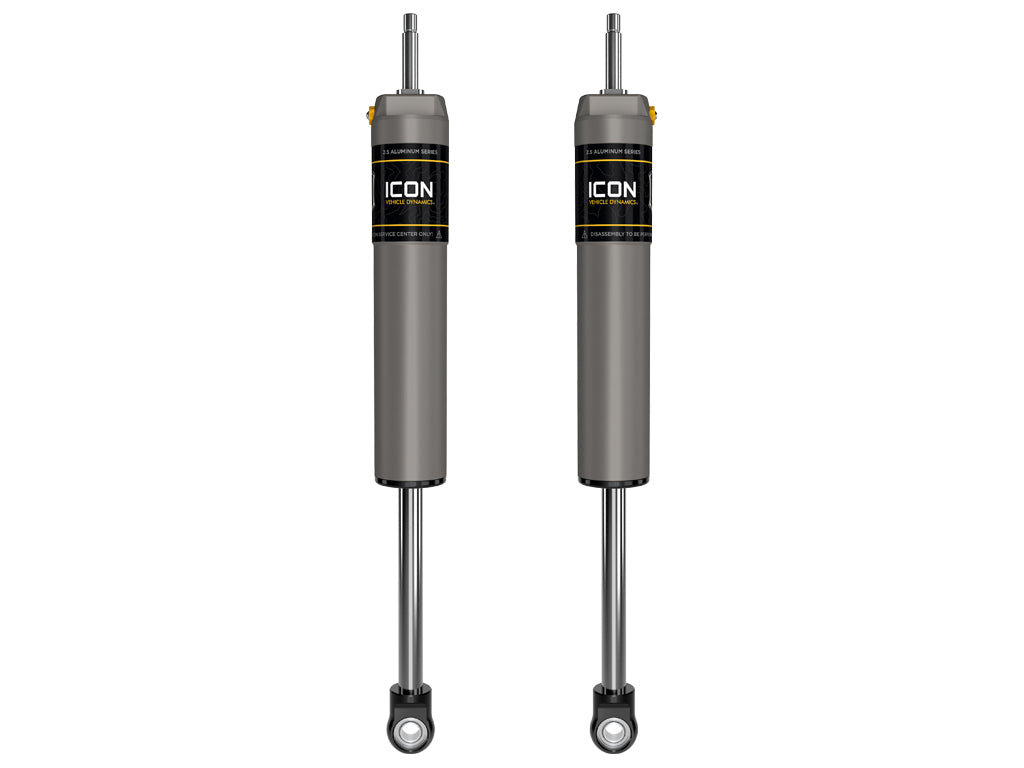

ICON Vehicle Dynamics 67620P - 05-25 FSD 4WD 7" FRONT 2.5 VS IR PAIR
Couldn't load pickup availability
2005-UP FORD SUPER DUTY 4WD 7" LIFT FRONT 2.5 VS INTERNAL RESERVOIR SHOCK PAIR
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.
Features & Benefits
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Rebuildable
- Polyurethane bushings and forged steel mounting stems for OE factory type fitment
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- Nitrogen charged monotube design with internal reservoir
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 6061 aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings and application specific mounting hardware
- 100% Revalveable
- 7/8” diameter induction hardened, chrome plated shock shaft
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Title | ICON 2005-2025 Ford F-250/F-350 Super Duty 4WD, 7” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Internal Reservoir, Pair |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
| Active or Passive Suspension | Passive |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Attributed Description | ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.100 IN; Fully Open Length: 26.17 IN; Shock Stroke: 10.07 IN; Travel Length: 10.07 IN |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| External Reservoir | NO |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | EYELET |
| Mounting Hardware Included | Yes |
| Reservoir Type | Internal |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
Installation Guide: Download PDF
