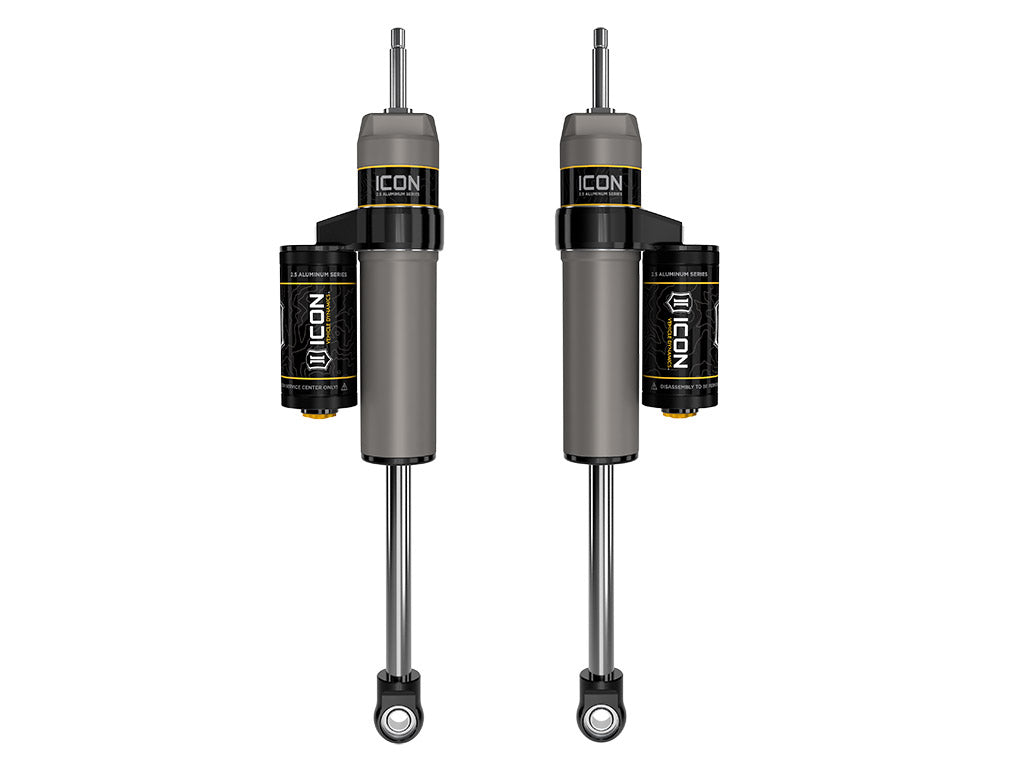

ICON Vehicle Dynamics 67700P - 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
Product Availability Request
Fill the form and our team will contact you.
ICON 2.5 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune.
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON's unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV).
Features
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- 100% Rebuildable
- 100% Revalveable
- Nitrogen charged monotube design with piggyback reservoir
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- 6061 aircraft grade aluminum CNC machined components
- One piece, hard anodaized, digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 7/8" diameter induction hardened, chrome plated shock shaft
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- PTFE lined spherical bearings and application specific mounting hardware
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Bore Diameter | 2.25 IN |
| Add-On Part | 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR) |
| Adjustable | NO |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Boot Included | NO |
| Compressed Length | 14.48 IN |
| Cylinder Color | Gray |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Type | Oil |
| Extended Length | 22.81 IN |
| External Reservoir | Piggyback Reservoir |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Reservoir Type | Piggyback |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL |
| Service Parts | 611006 - 9/16 HD STEM BUSHING KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Stroke Length Front | 8.33 IN |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Stem |
| Valving Type | Digressive |
Note: OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. APPLICATION NOTE #476: Compatible with 0-2.75” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package APPLICATION NOTE #477: Compatible with 0-3" of front lift over stock of 2023-2026 F-250/F-350 4WD without Tremor package APPLICATION NOTE #478: Compatible with 0-2” of front lift over stock of 2023-2026 F-250/F-350 4WD equipped with Tremor package APPLICATION NOTE #479: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-450 4WD APPLICATION NOTE #480: Compatible with 0-3” of front lift over stock of 2023-2026 F-450 4WD APPLICATION NOTE #481: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #150: Shocks are fully serviceable APPLICATION NOTE #474: Compatible with 0-3” of front lift over stock of 2005-2019 F-250/F-350/F-450 4WD APPLICATION NOTE #475: Compatible with 0-3.75” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package
Short Description: SHOCK ABSORBERS
Invoice Description: 67700P
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
