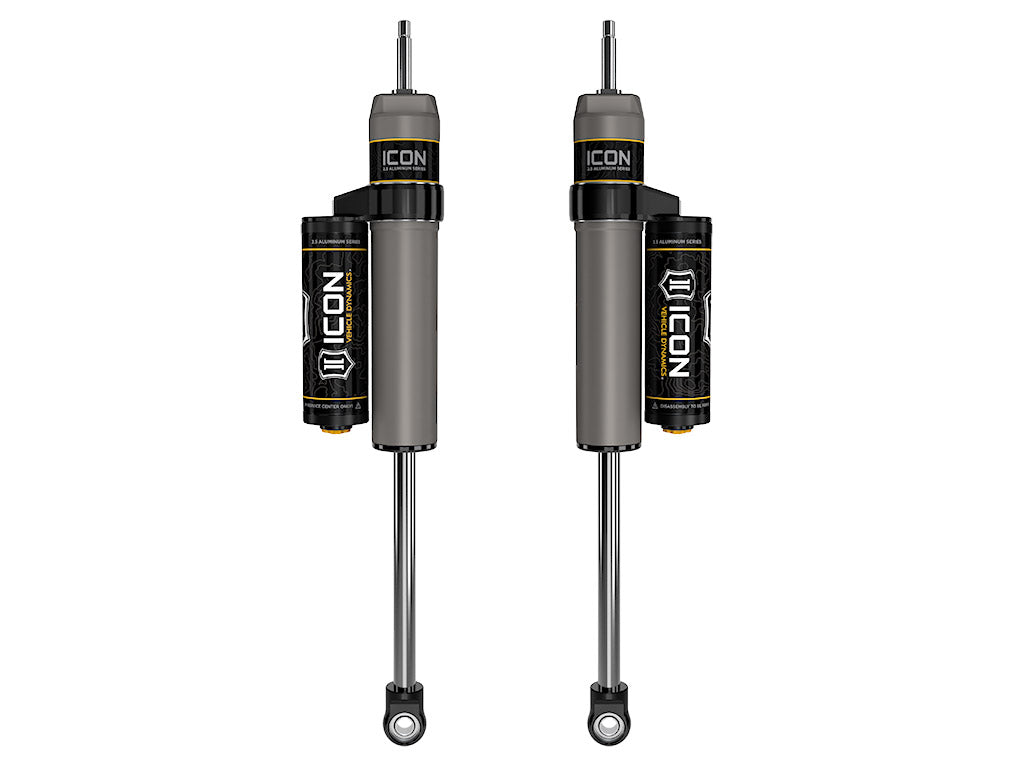

ICON Vehicle Dynamics 67710P - 05-22 FSD 4WD 4.5" FRONT 2.5 VS PB PAIR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. If you are looking for a more user-defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 100% Revalveable
- Nitrogen charged monotube design with piggyback reservoir
- 100% Rebuildable
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Double-sealed Schrader caps reduce risk of damage
- 6061 aircraft grade aluminum CNC machined components
Specifications
| AAP_UDA_4 | 55 |
| Adjustable | NO |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| Shaft Diameter | 0.875 IN |
| Damping Type | Oil |
| Grade Type | Performance |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Cylinder Color | Silver |
| Upper Mount Type | Stem |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| California Prop 65 Warning | Yes |
| External Reservoir | Yes |
| Tube Outside Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shaft Material | Chrome |
| Lower Mount Type | EYELET |
| OEM Wheels & Tires Fitment | Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Service Parts | 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
Note: OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with fender trimming and modifications required) TECH NOTE: Compatible with 4.5” of front lift over stock of 2005-2019 F-250/F-350 4WD TECH NOTE: Compatible with 4.5” of front lift over stock of 2020-2022 F-250/F-350 4WD without Tremor package TECH NOTE: Compatible with 3.5” of front lift over stock of 2020-2022 F-250/F-350 4WD equipped with Tremor package TECH NOTE: Can be installed as secondary shocks in OE location with ICON 4-5.5" lift coilover conversions
Short Description: SHOCK ABSORBER PAIR
Invoice Description: 67710P
Definition: Suspension Shock Absorber Set
Installation Guide: Download PDF
Warranty: 1 Year
