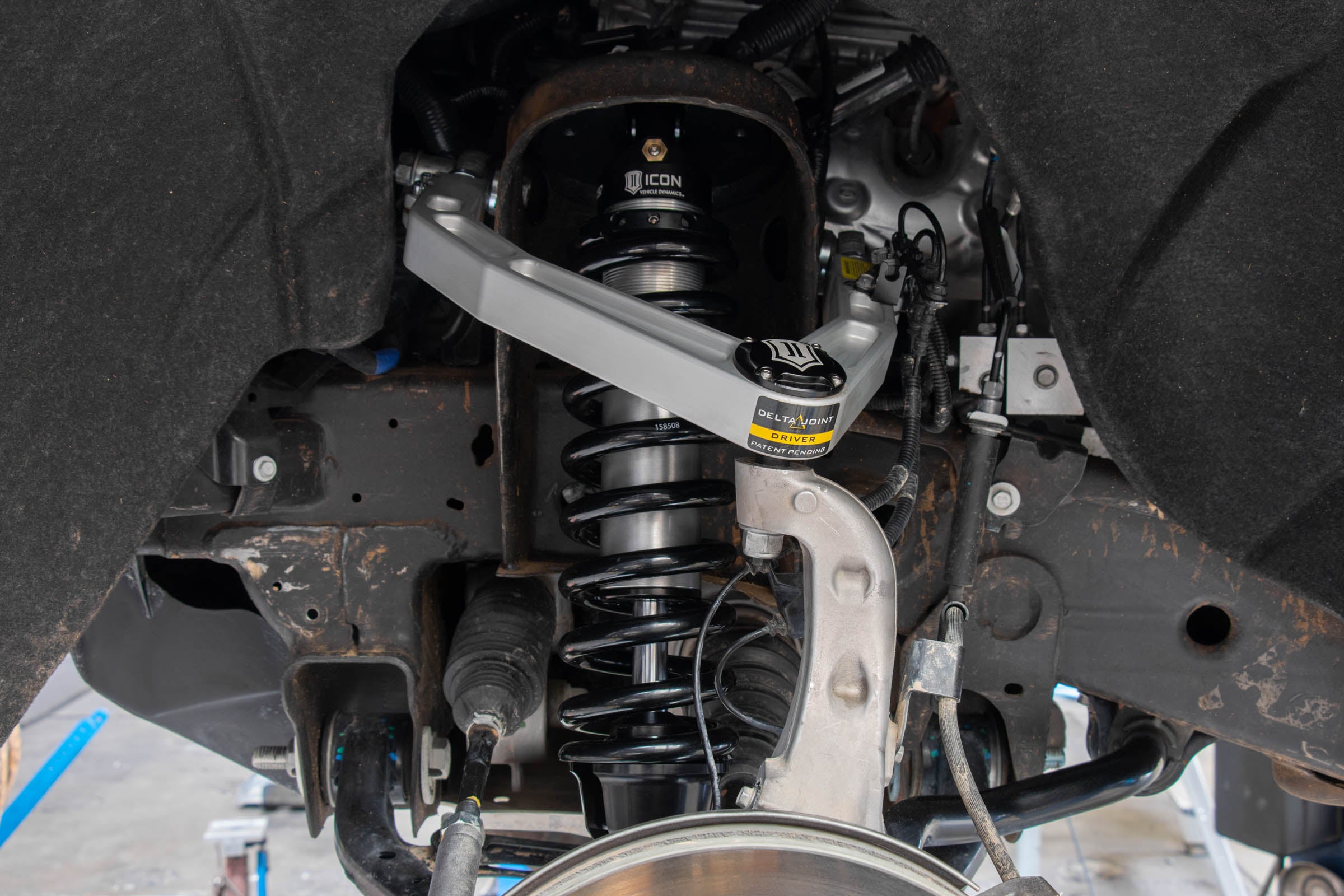

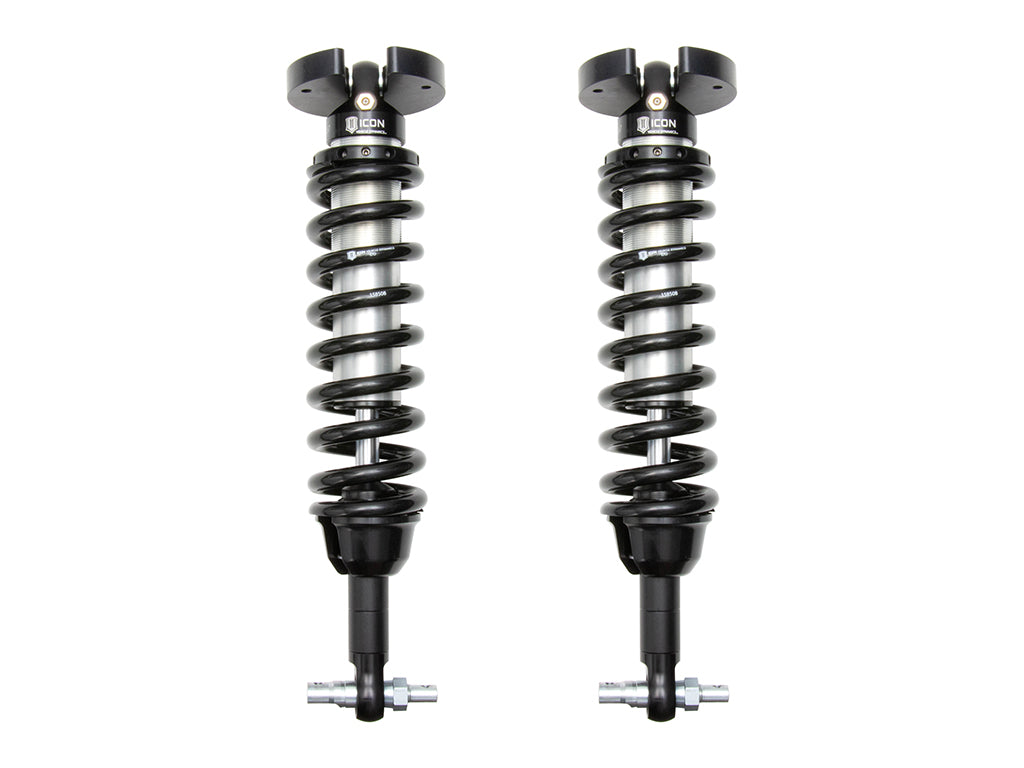

ICON Vehicle Dynamics 71606 - 19-23 GM 1500 EXT TRAVEL 2.5 VS IR COILOVER KIT
Regular price
$1,923.95 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
ICON's 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.
Features & Benefits
- Adjustable coilovers yield 1.5-3.5” of front lift height over stock
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered Eibach coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.97 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 23.83 IN |
| Front Spring Rate | 700 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 1.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Tires | (Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 19-23 GM 1500, 1.5-3.5” Lift, Front, 2.5 VS Extended Travel Coilover Kit |
| Travel Length | 5.87 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation Guide: Download PDF
