ICON Vehicle Dynamics 71610 - 21-23 GM SUV REAR 2.5 VS IR COILOVER KIT
Couldn't load pickup availability

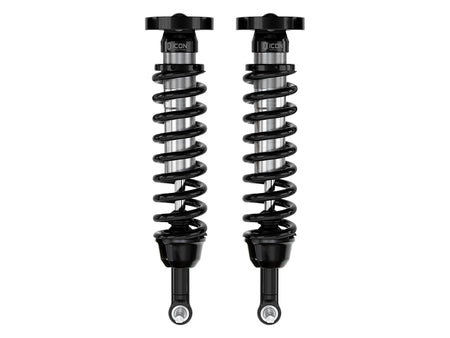

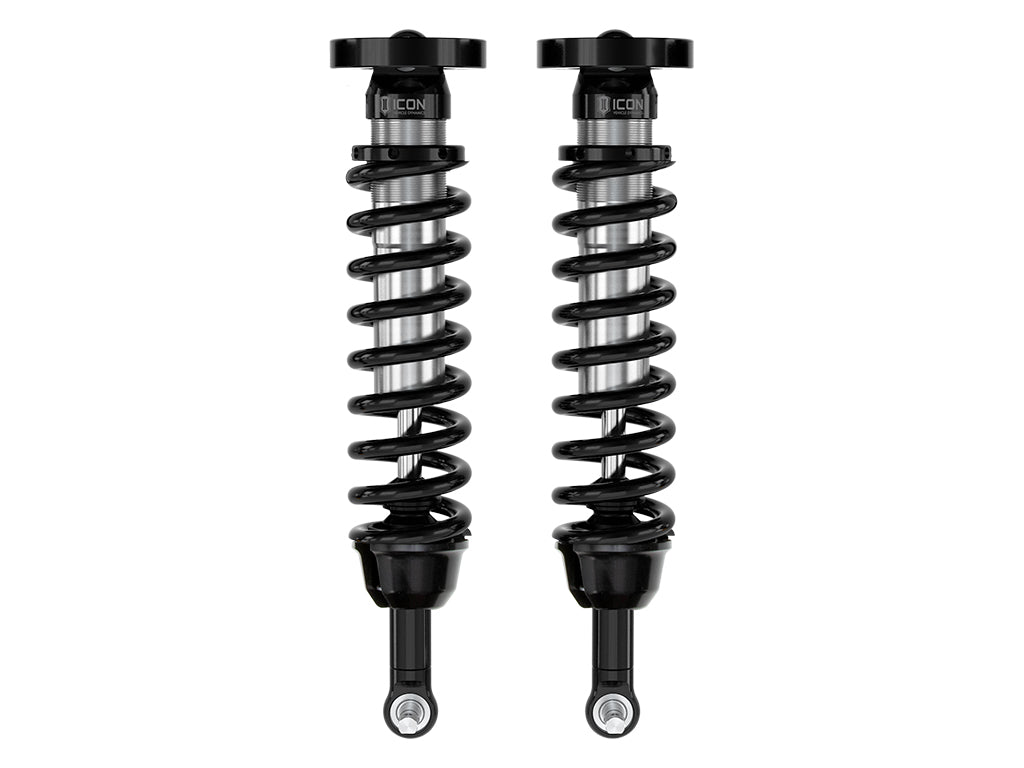

ICON's 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

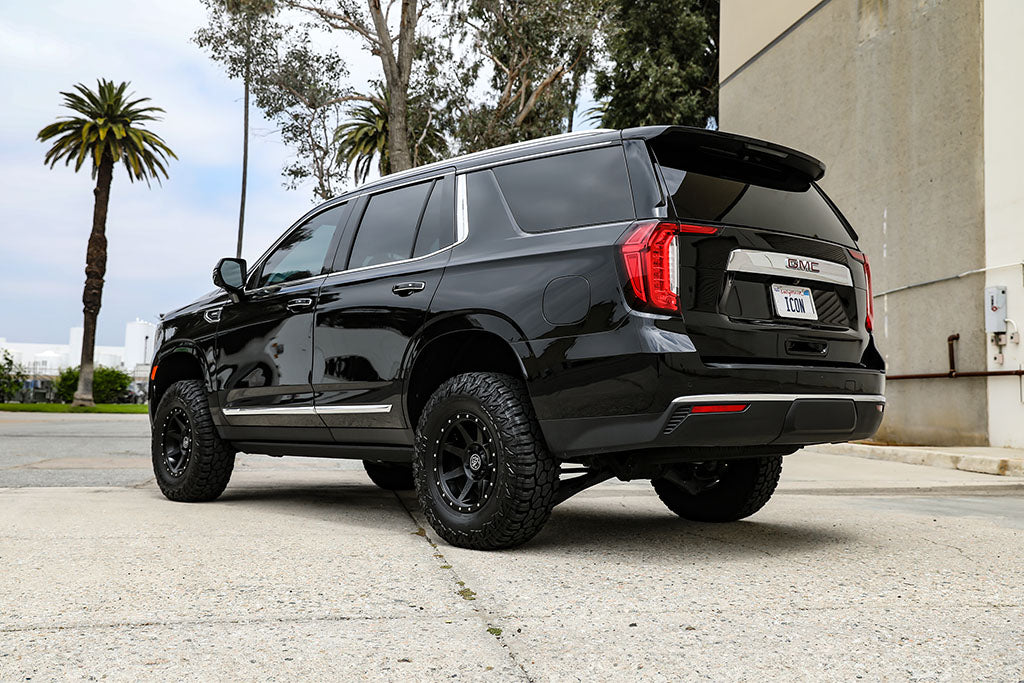

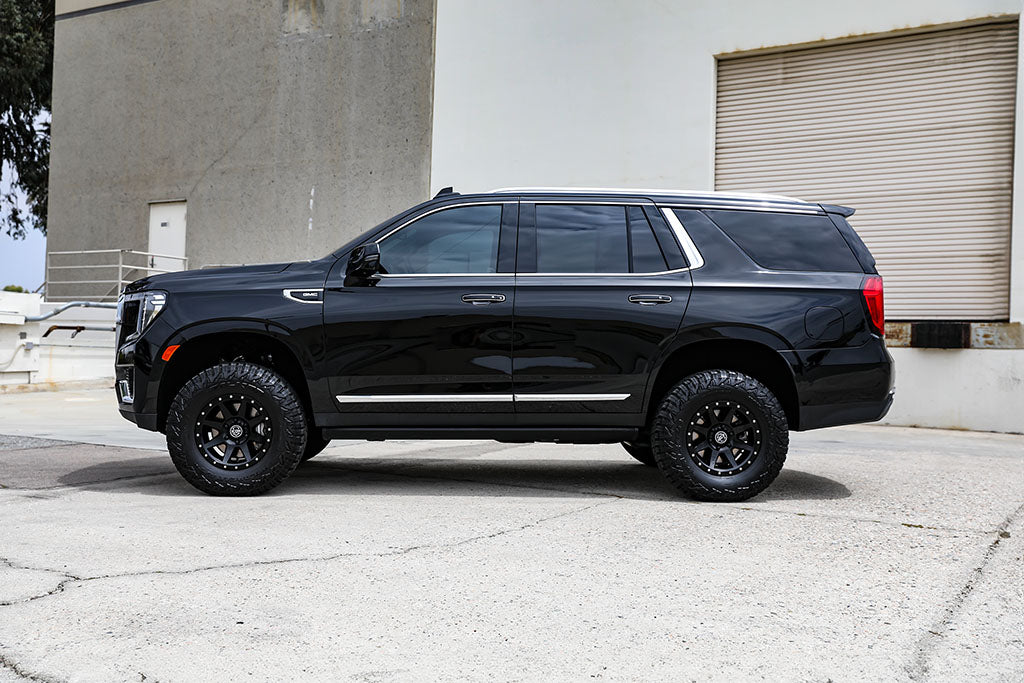

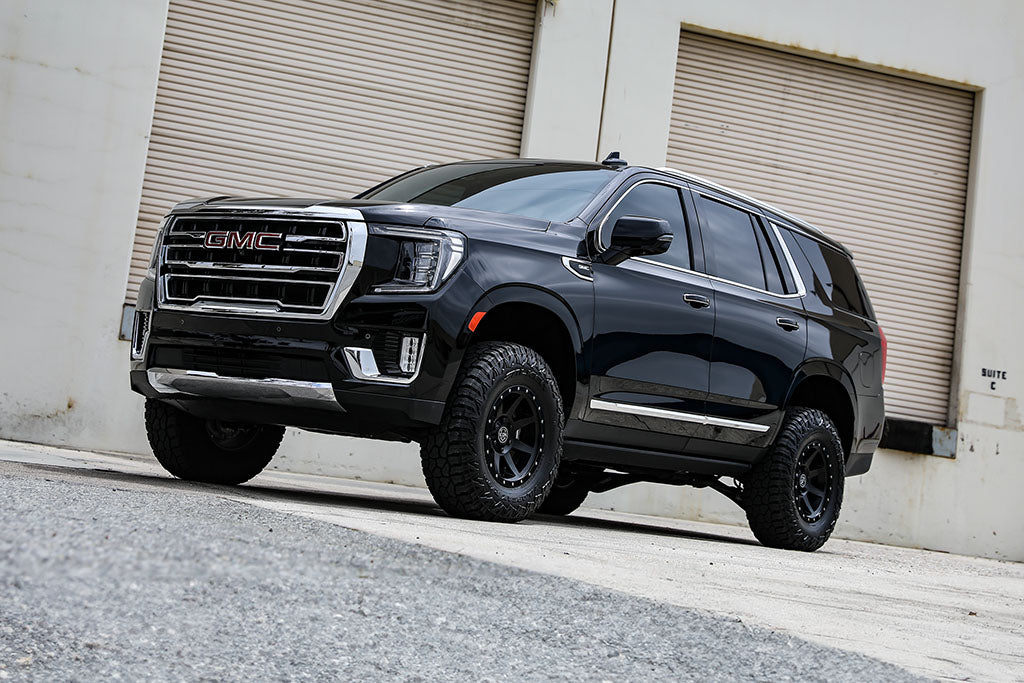

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the rear end of 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total rear wheel travel compared to stock, improving suspension performance and ride quality. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 3-4” of rear lift height adjustability on Tahoe and Yukon or 2.5-3.5" of rear lift on Suburban or Yukon XL, allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON front 2.5 Series coilover shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM SUV.
Features & Benefits
- Increased rear wheel travel and improved ride quality over stock
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- Vehicle specific tuned for superior shock damping and control
- Adjustable coilovers yield 3-4” or 2.5-3.5" of rear lift height over stock, depending on vehicle
- Internal nitrogen reservoir ensures consistent performance under hard use
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5” diameter shock bodies
- 7/8" diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
Specifications
| Active or Passive Suspension | Passive |
| Cylinder Finish | Cadmium Plated |
| Damping Type | Oil |
| Grade Type | Performance |
| Cylinder Material | Steel |
| Add-On Part | 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR |
| Add-On Part | 71022 - 21-23 GM RIDE HEIGHT SIMULATOR |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 71020 - 21-23 GM SUV TOE LINK KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.59 IN |
| Cylinder Color | Silver |
| Dust Shield Included | No |
| Extended Length | 25.68 IN |
| Gas Charged | Yes |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 4 IN |
| Maximum Ride Height Raising Distance | 4 IN |
| Minimum Lift | 2.5 IN |
| OEM Wheels & Tires Fitment | Yes |
| Rear Spring Rate | 400 PPI |
| Recommended Aftermarket Tires | 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL, 3-4” Lift, Rear, V.S. 2.5 Series Coilover Kit, Internal Reservoir |
| Travel Length | 7.09 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
