ICON Vehicle Dynamics 78722 - 11-19 GM HD 0-2" 2.5 IR SHOCK SYSTEM W/ UCA
Couldn't load pickup availability
2011-2019 GM HD 0-2" LIFT 2.5 INTERNAL RESERVOIR SHOCK SYSTEM WITH UPPER CONTROL ARMS
Take the performance of your 2011-2019 GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel (nearly 50%) when paired with our 2.0 or 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2011-2019 GM HD.
Features & Benefits
- ICON Delta Joint
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
- 100% Rebuildable
- 100% Revalveable
- 1026 DOM Steel Construction
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Title | 11-19 GM HD 0-2" 2.5 IR SHOCK SYSTEM W/ UCA |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Control Arm Color | Black |
| Color | Black |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.5” Backspace / 12mm Offset |
| Pre-Greased | No |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Finish | Powdercoated |
| Control Arm Material | Steel |
| Control Arm Construction | Tubular |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |

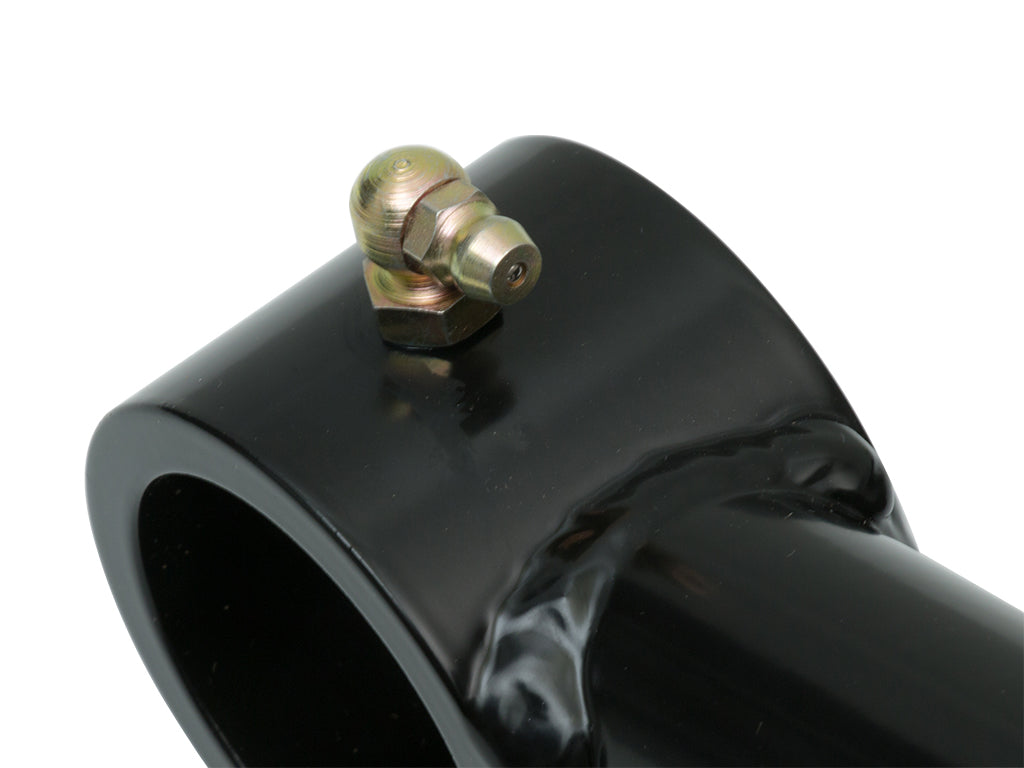

| Grease Fitting Included | yes |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Service Parts | 257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL |
| Service Parts | 614521 - 78500 BUSHING AND SLEEVE KIT MFG AFTER 8/2015 |
| Service Parts | 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
