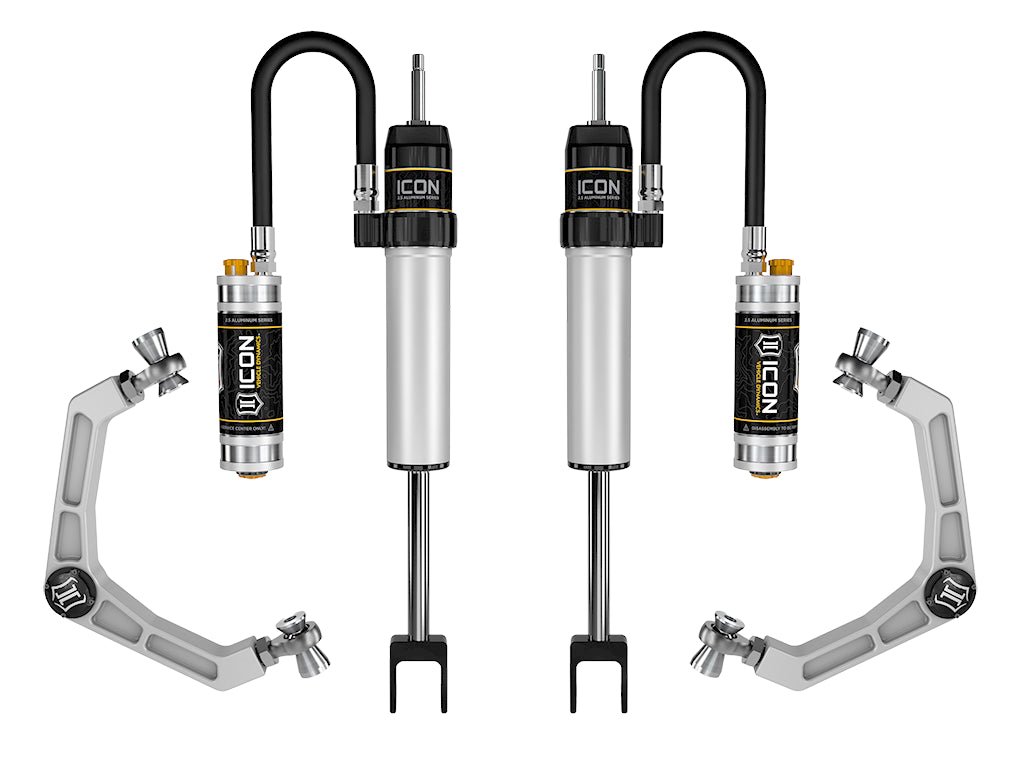

2020-UP GM HD 0-2" LIFT CDCV SHOCK SYSTEM WITH BILLET UCA
Take the performance of your 2020-Up GM HD truck to new levels with the ICON Vehicle Dynamics Delta Joint billet upper control arm kit. These are constructed of CNC machined 6061 billet aluminum merging light weight with high strength properties. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while also allowing for additional camber and caster adjustment for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the increased wheel travel when paired with our 2.5 series shock absorbers, this translates into superior performance and ride quality for your 2020-Up GM HD.
Features & Benefits
- Features ICON's Patented Delta Joint (U.S. Patent No. 10,731,700)
- 7/8" diameter induction hardened, chrome plated shock shaft
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- CNC machined 6061 billet aluminum construction for light weight and exceptional strength
- Additional camber and caster adjustability allows for precise wheel alignment
- PTFE Lined 7/8” FK Rod Ends for improved response
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- Built in o-ring sealed dust cover cap
- Vehicle specific taper pin provides OE-like fitment
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Add-On Part | 77202 - 20-UP GM HD FRONT SPLASH GUARD KIT |
| Adjustable | No |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Rod End Bearing |
| Bushings Included | Yes |
| Adjustable Control Arm | yes |
| Bushing Color | Gold |
| Title | 20-UP GM HD 0-2" CDCV SHOCK SYS W/ BILLET UCA |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Service Parts | 614520 - DELTA JOINT INSTALL ADAPTER AND SHIM |
| Control Arm Material | Aluminum |
| Control Arm Construction | Billet |
| Suspension Grade Type | Performance |
| Grade Type | Performance |
| Finish | Powdercoated |
| Control Arm Color | Silver |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Pre-Greased | Yes |
| Grease Fitting Included | yes |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.5” Backspace / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.5” Backspace / 12mm Offset |
Installation Guide: Download PDF
