ICON Vehicle Dynamics 78761DJ - 23-24 CHEVROLET COLORADO BILLET UCA DJ PRO KIT
Product Availability Request
Fill the form and our team will contact you.

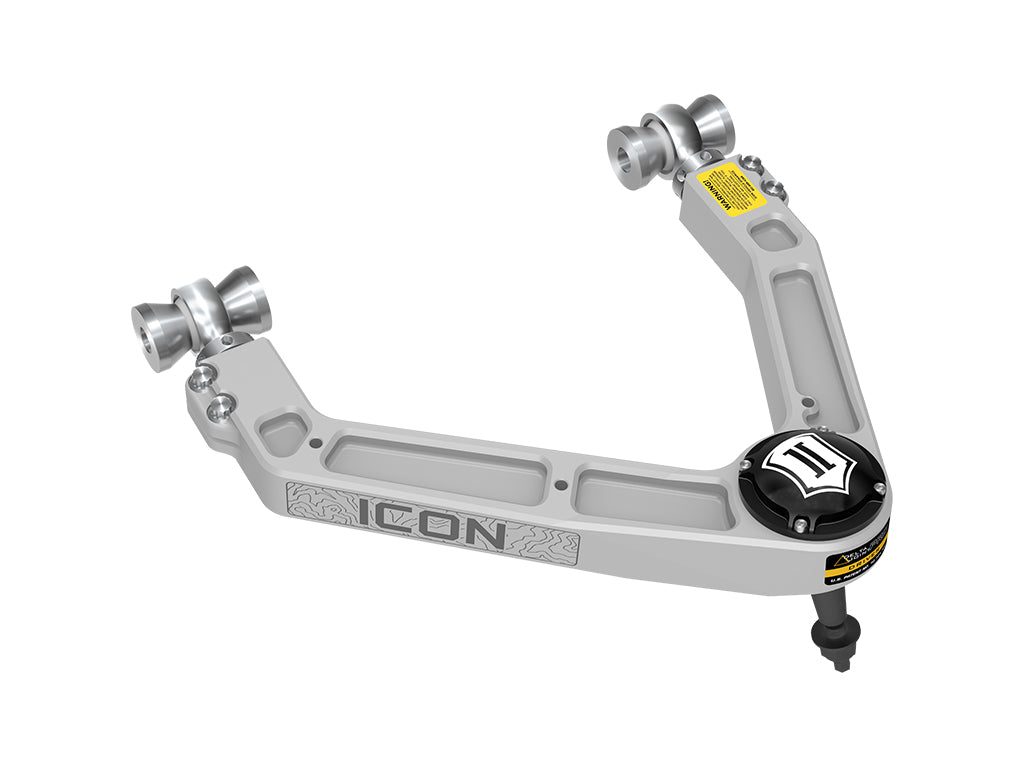

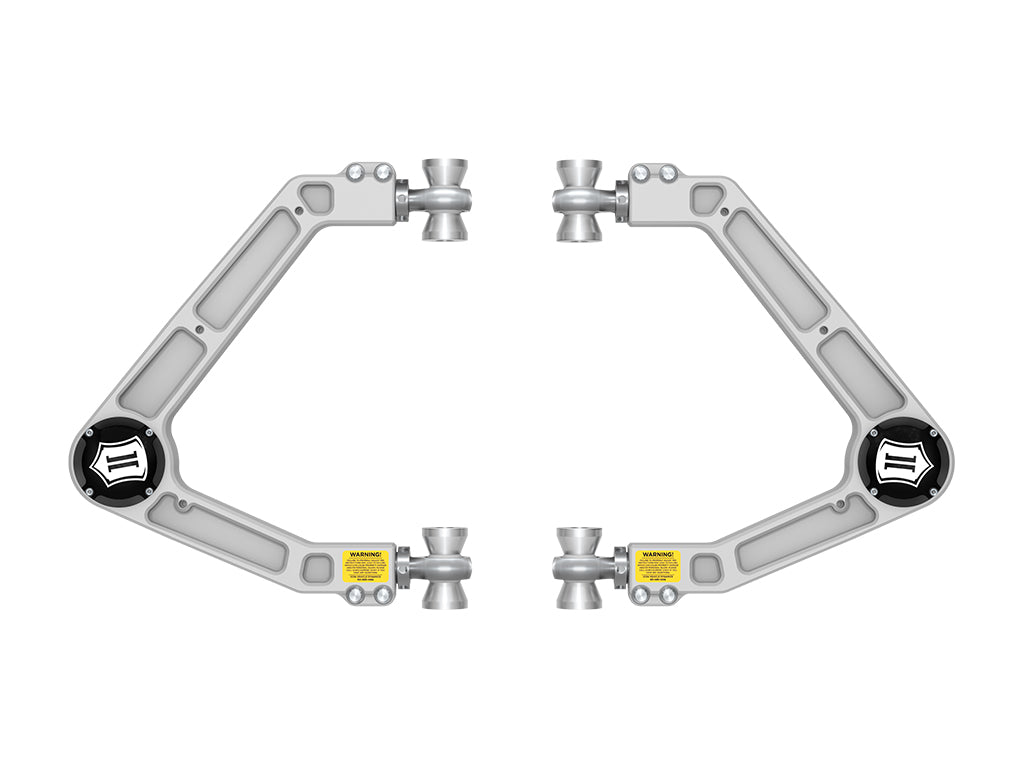

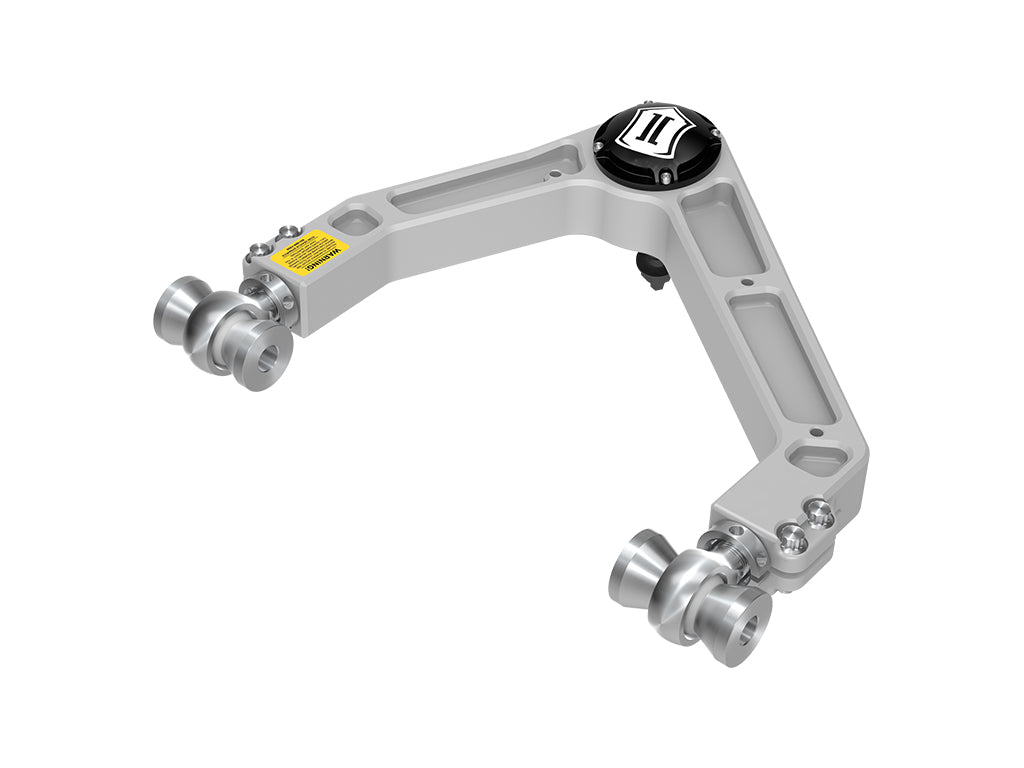

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball.
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2023-2026 Chevrolet Colorado WT, LT, or Z71 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Specifically designed for the narrower track width of these Colorado submodels and constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2023-2026 Chevrolet Colorado WT, LT, or Z71. ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on trucks with up to 2.5” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Adjustable | Yes |
| Ball Joint Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Bushing Material | Rod End Bearing |
| Bushings Included | Yes |
| Adjustable Control Arm | yes |
| Bushing Color | Silver |
| Control Arm Material | Aluminum |
| Finish | Anodized |
| End 2 Type | BALL JOINT |
| Construction | Billet |
| Control Arm Construction | Billet |
| Grade Type | Performance |
| End 1 Type | Rod End Bearing |
| Control Arm Color | Silver |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grease Fitting Included | yes |
| California Prop 65 Warning | Yes |
| Color | Gray |
| Color | Black |
| Pre-Greased | Yes |
| Quantity | Pair |
| Recommended Aftermarket Tires | 33" x 12.50" |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.46” Backspace / 18mm Offset |
| Reinforced | Yes |
| Set | Yes |
| Suspension Grade Type | Performance |
| Grease Fittings Included | Yes |
| Greaseable | yes |
| Material | Aluminum |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Pre-Assembled | Yes |
Note: Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 17x8.5" w/ 5.46” Backspace / 18mm Offset Recommended Aftermarket Tires: 33" x 12.50" APPLICATION NOTE #27: Compatible with 0-2.5" front lift over stock APPLICATION NOTE #160: Will not fit GMC Canyon. Will not fit Chevrolet Colorado Trail Boss or ZR2 APPLICATION NOTE #239: Only compatible with OE steering knuckles. DO NOT install in combination with ANY aftermarket steering knuckles.
Short Description: BILLET UCA KIT
Invoice Description: 78761DJ
Definition: Suspension Control Arm Kit
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Delta Joint Pros, Limited Lifetime-Control Arms
