ICON Vehicle Dynamics 81000 - 04-15 TITAN 2.5 VS IR COILOVER KIT
Regular price
$1,518.35 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

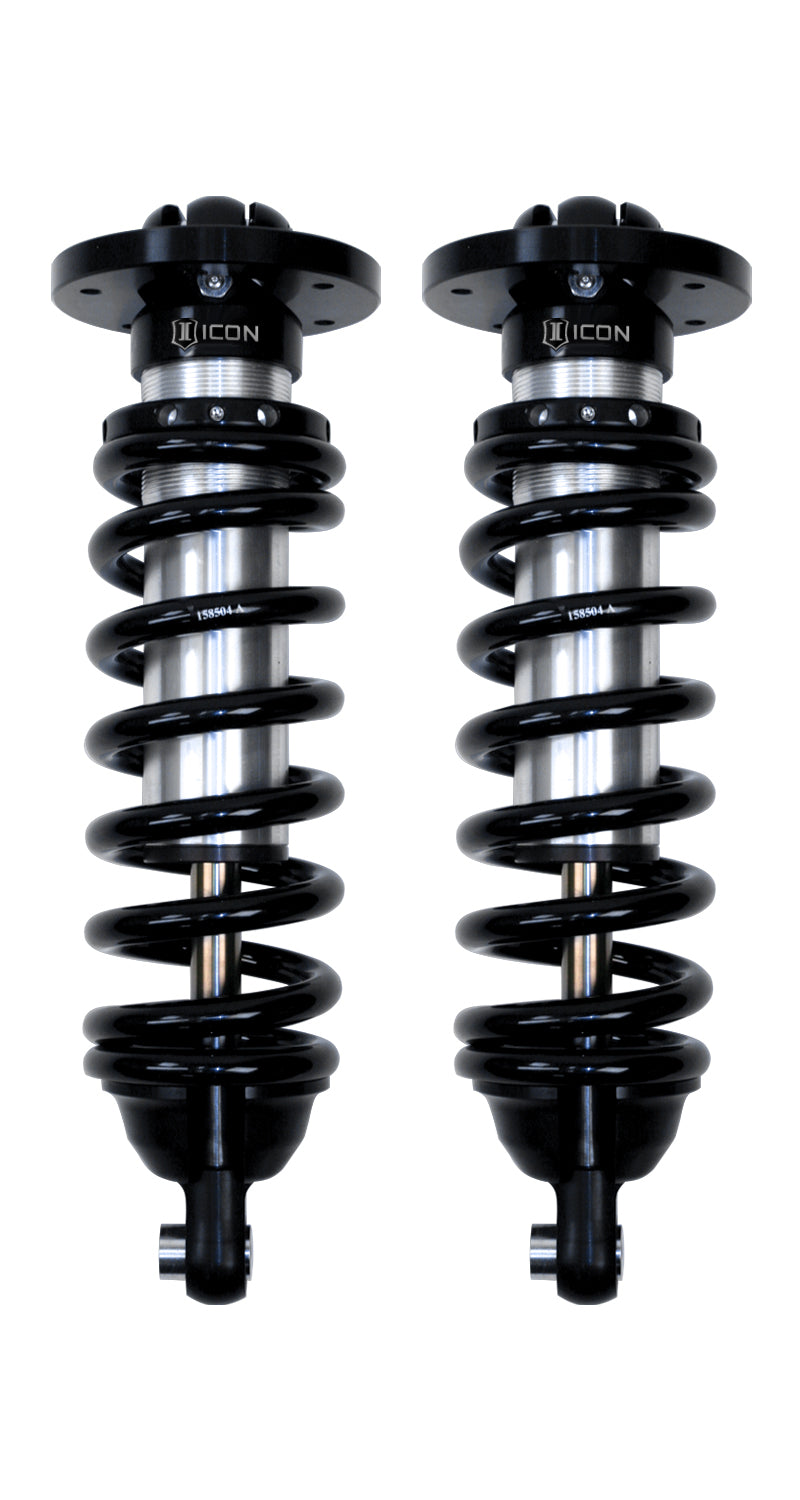

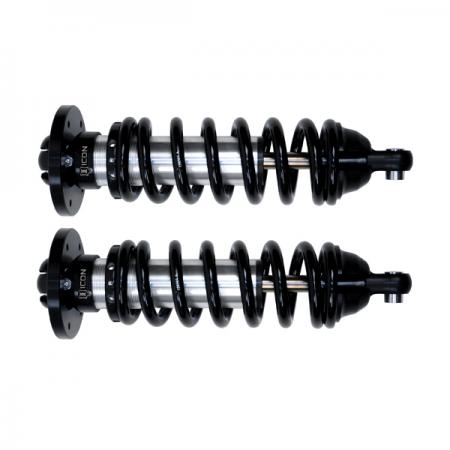

2004-2015 NISSAN TITAN 2.5 VS INTERNAL RESERVOIR COILOVER KIT
These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.
Features & Benefits
- Adjustable ride height from 0" - 3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Optional Extreme Weather Plating
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable and re-valvable shock
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 12.15 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 16.71 IN |
| Front Spring Rate | 650 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | 04-15 TITAN 2.5 VS IR COILOVER KIT |
| Travel Length | 4.56 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Installation Guide: Download PDF
