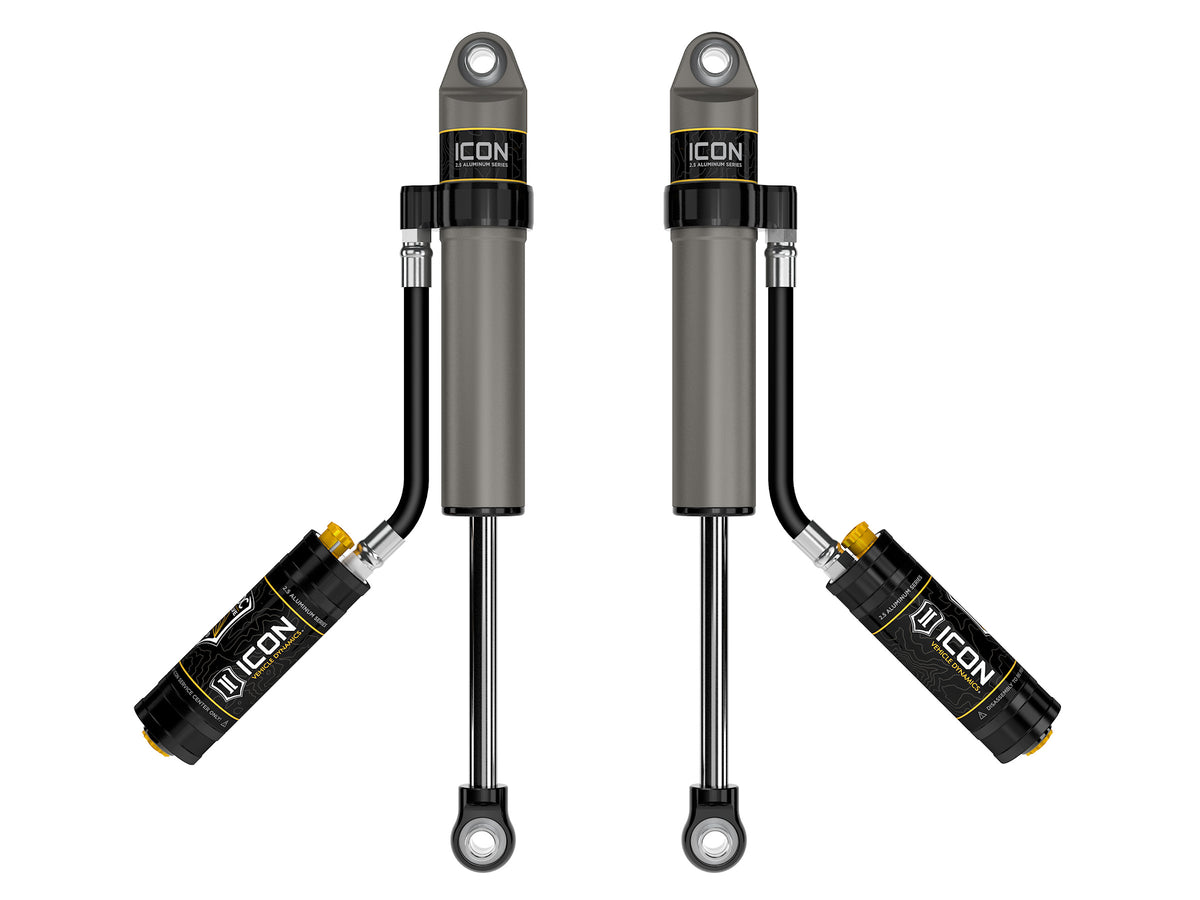

ICON Vehicle Dynamics 87843CP - 97-23 PATROL (Y61) REAR 2.5 VS RR CDCV PAIR
Couldn't load pickup availability
ICON Vehicle Specific 2.5 Aluminum Series shocks give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Features & Benefits
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- 100% Revalveable
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- 6061 aircraft grade aluminum CNC machined components
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Nitrogen charged monotube design with piggyback reservoir
- 100% Rebuildable
Specifications
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shock Absorber Rod End Measuring Point | Center of Eylet |

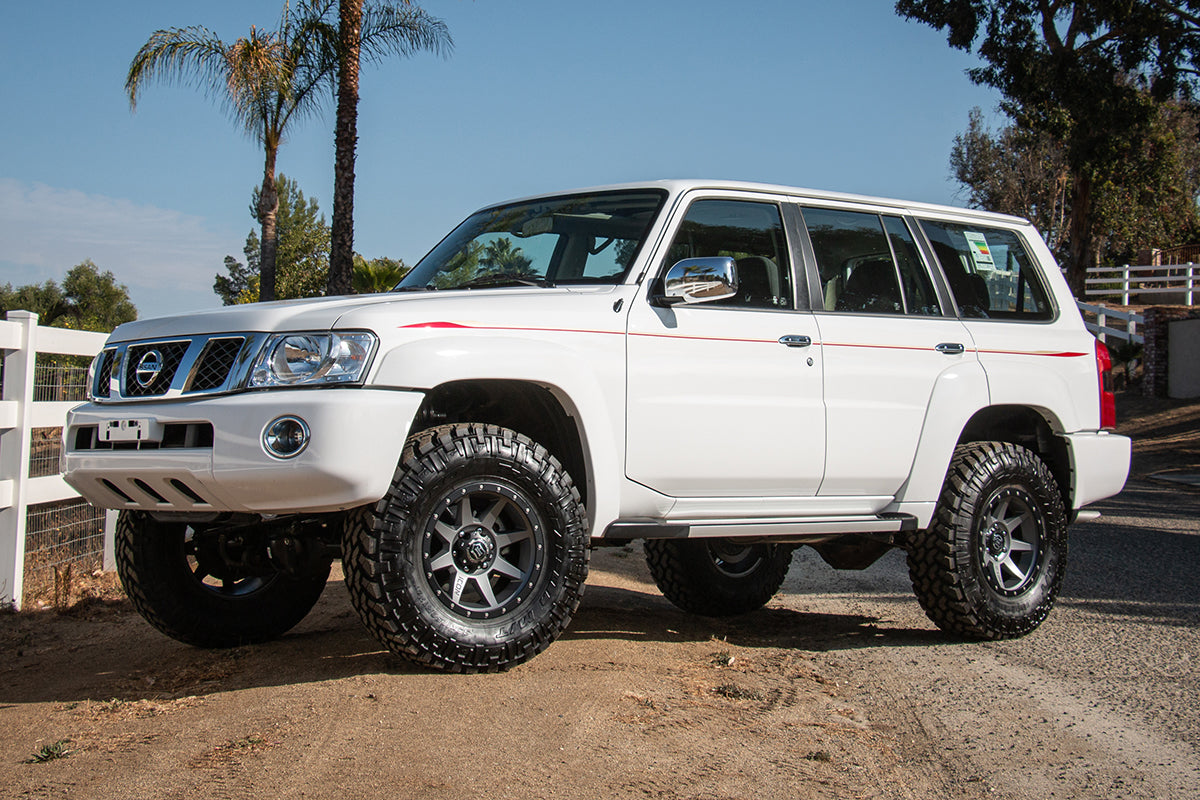

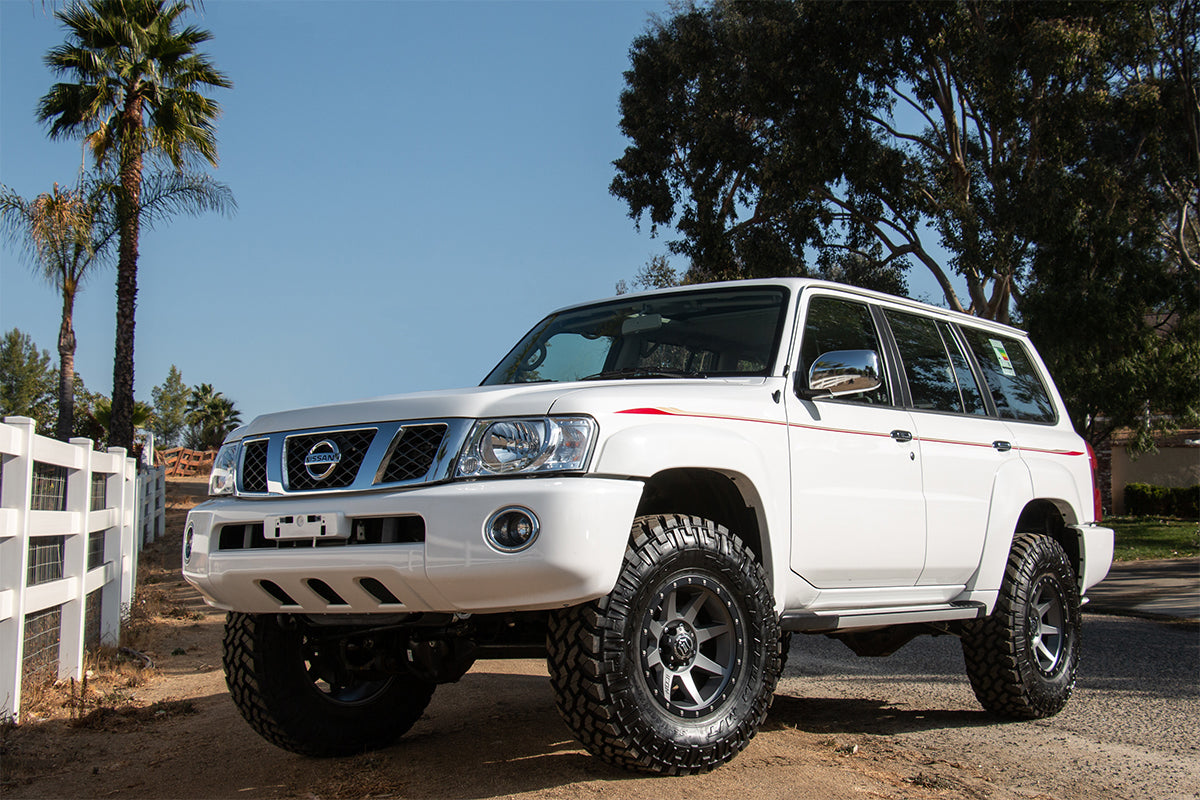

| Title | ICON 1997-2023 Nissan Patrol Y61, 2" Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair |
| Tube Outside Diameter | 2.5 IN |
| Upper Mount Type | Eyelet |
| Valving Type | Digressive |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | Yes |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Boot Included | NO |
| Bore Diameter | 2.25 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Cylinder Color | Grey |
| Cylinder Diameter | 2.5 IN |
| Cylinder Material | Aluminum |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| External Reservoir | Yes |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Lower Mount Type | Eyelet |
| Mounting Hardware Included | Yes |
| Reservoir Type | Remote |
| Service Parts | 191016 - 7.5" FINNED RESI UPGRADE KIT |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 257339 - 7/8 SHAFT 13.25 OAL 9.00 TRAVEL |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
