ICON Vehicle Dynamics 88510DJ - 16-23 TITAN XD UCA DJ KIT
Product Availability Request
Fill the form and our team will contact you.

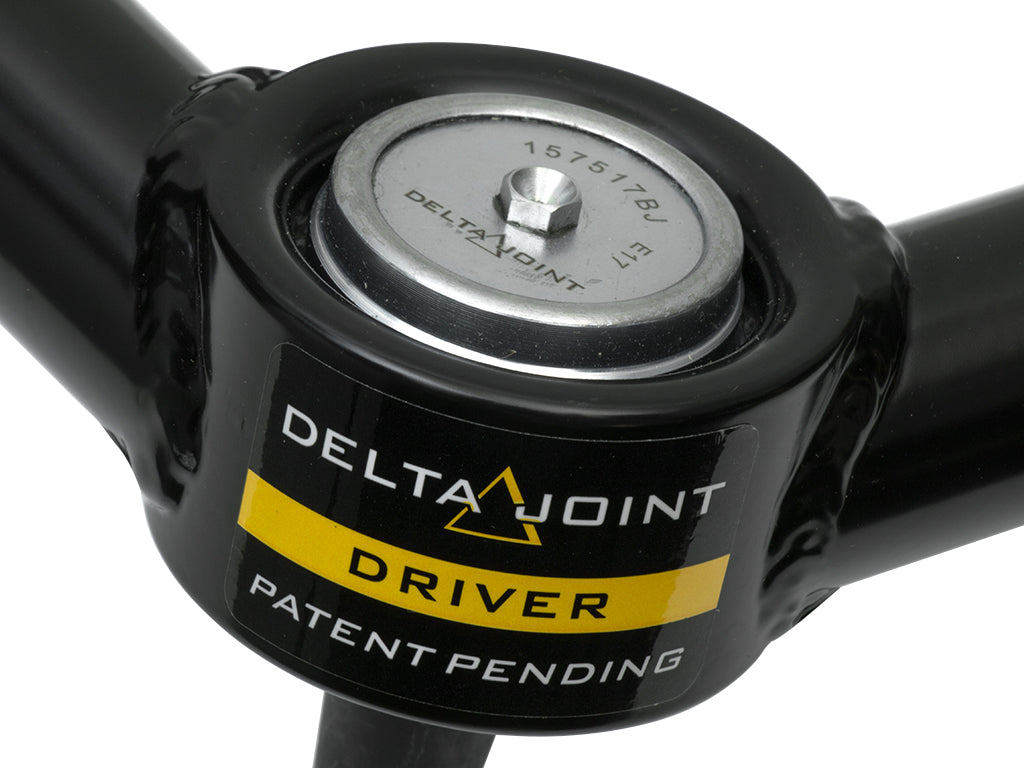

ICON tubular UCAs feature 1026 DOM tube construction, polyurethane bushings, and ICON’s serviceable Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.
Take the performance of your 2016-2023 Nissan XD to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2016-2023 Nissan XD. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Features
- ICON Delta Joint
- 1026 DOM Steel Construction
- CNC Bent Tubing
- Serviceable Dual Stage Bushings
- CNC Machined Bushing Housings and Sleeves
- Built-In Caster Correction
- Black Semi-Gloss Powder Coat Finish
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | NO |
| Ball Joint Mounting Type | Press In |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| California Prop 65 Warning | Yes |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 191013 - NIPPLE GREASING ADAPTER KIT |
| Ball Joint Included | Yes |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Color | Black |
| Construction | Tubular |
| Control Arm Color | Black |
| Control Arm Construction | Tubular |
| Control Arm Material | DOM Steel |
| Finish | Powdercoat |
| Grade Type | Performance |

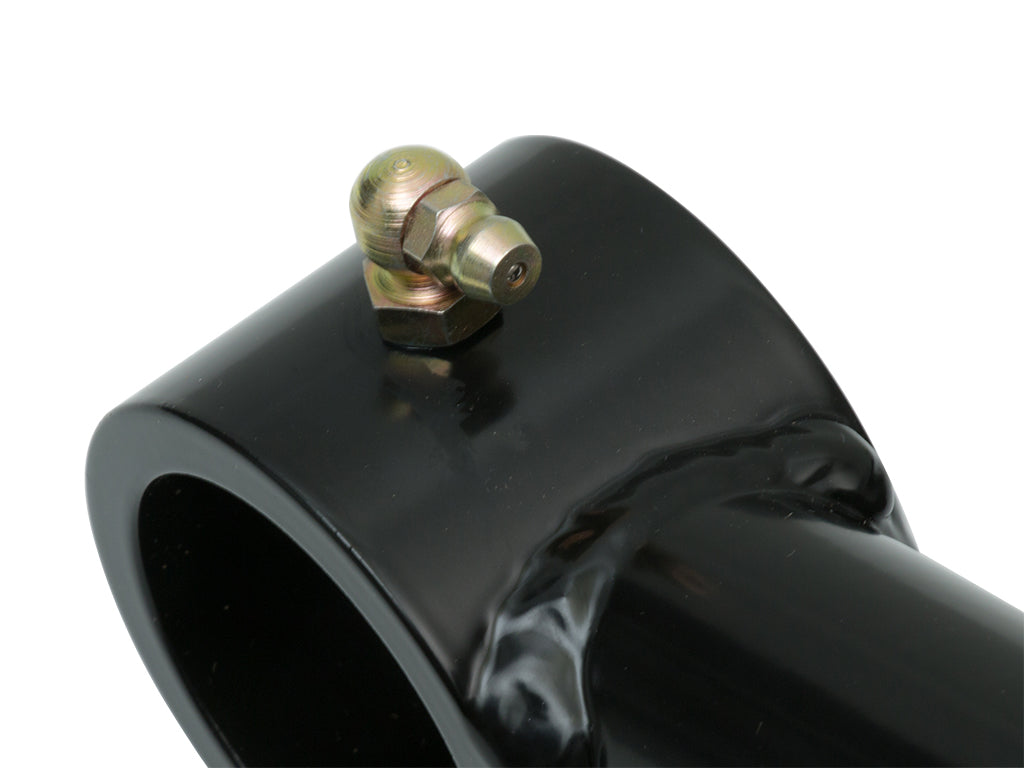

| Grease Fitting Included | yes |
| Greaseable | yes |
| Material | DOM Steel |
| Mounting Bracket Included | No |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Pre-Assembled | Yes |
| Pre-Greased | NO |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset |
| Reinforced | Yes |
| Service Parts | 614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE |
| Suspension Grade Type | Performance |
| Suspension Type | Spring |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
Short Description: UPPER CONTROL ARMS
Invoice Description: 88510DJ
Definition: Suspension Control Arm Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 5 Years-Delta Joints, Limited Lifetime-Control Arms
