ICON Vehicle Dynamics 91717 - 21-23 F150 2WD 0-3" 2.5 VS IR COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.

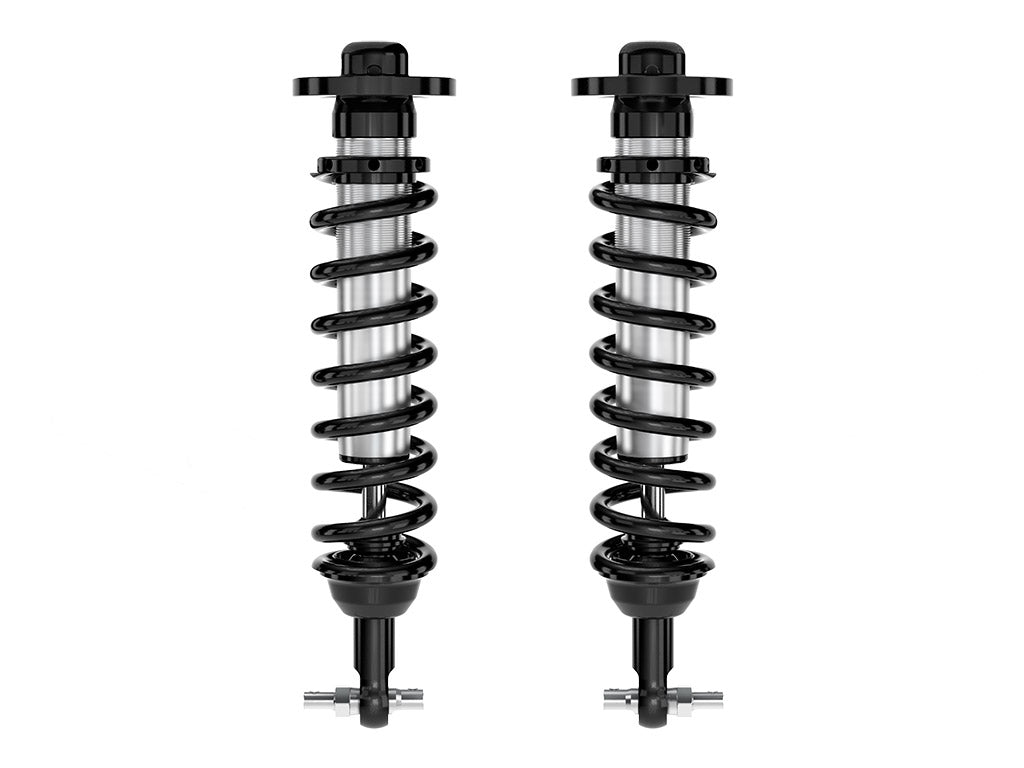

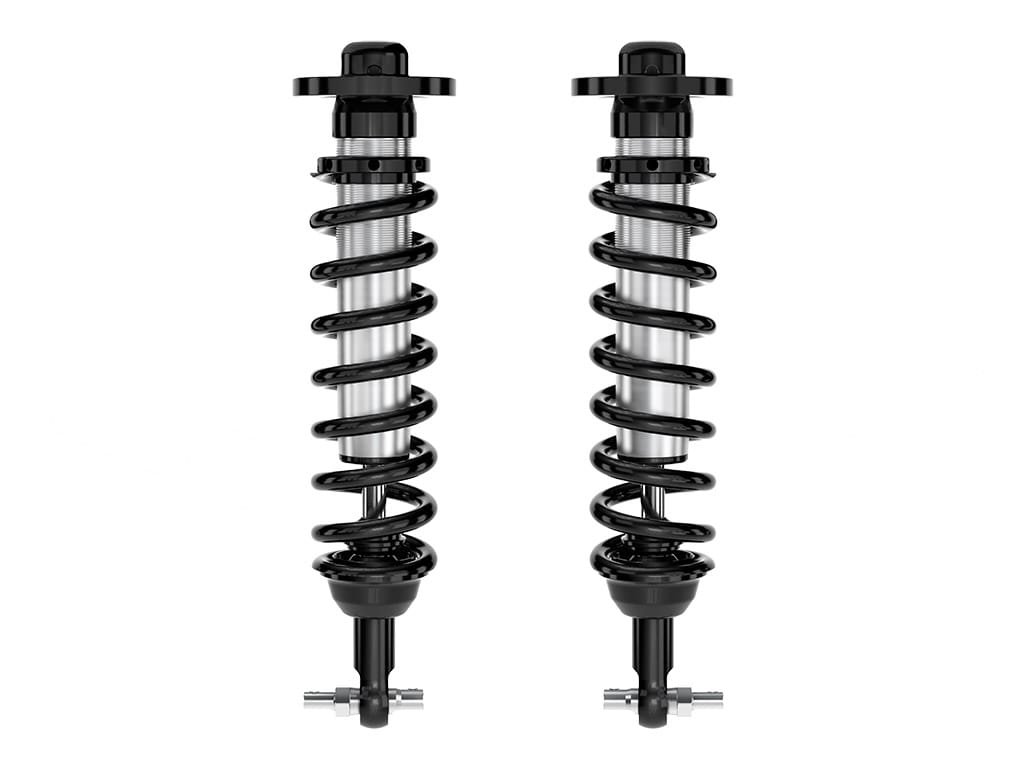

ICON 2.5 Series coilovers with internal reservoirs provide ride height adjustability from 0-3" of lift over stock. The larger 2.5” shock body and piston area over stock components provides improved damping ability and ride quality.

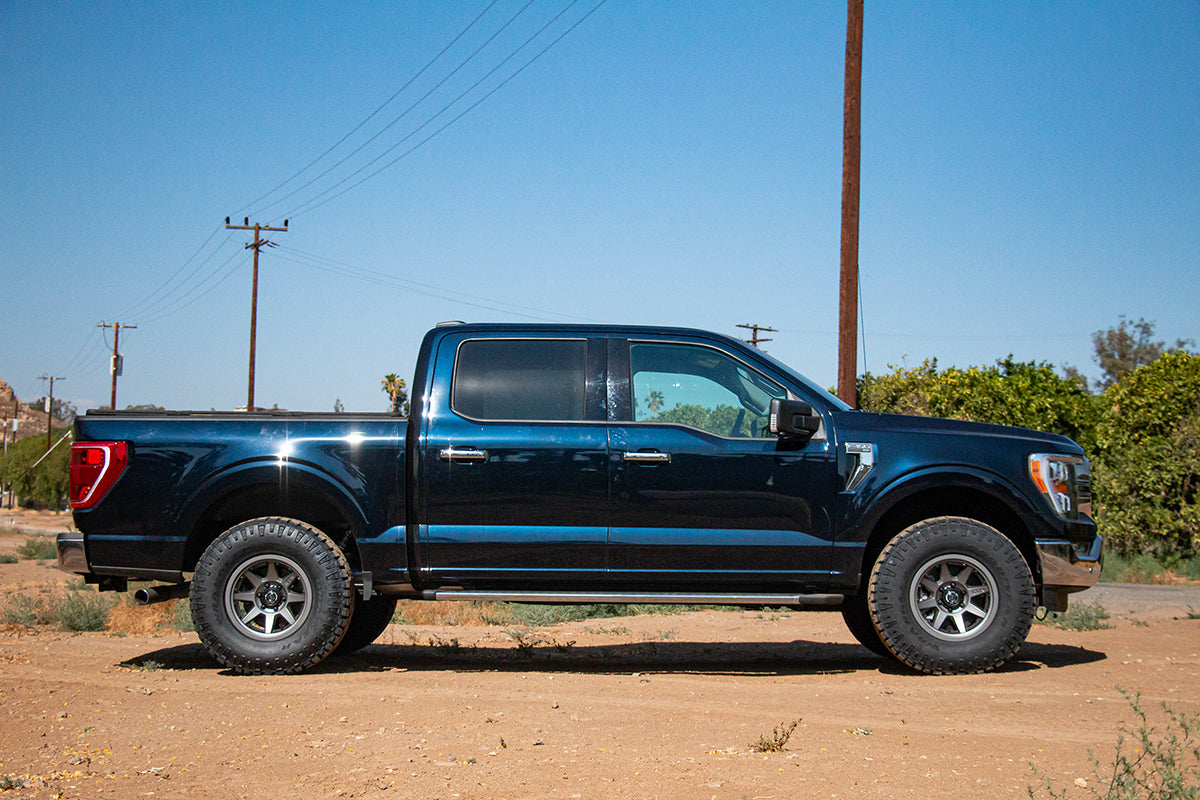

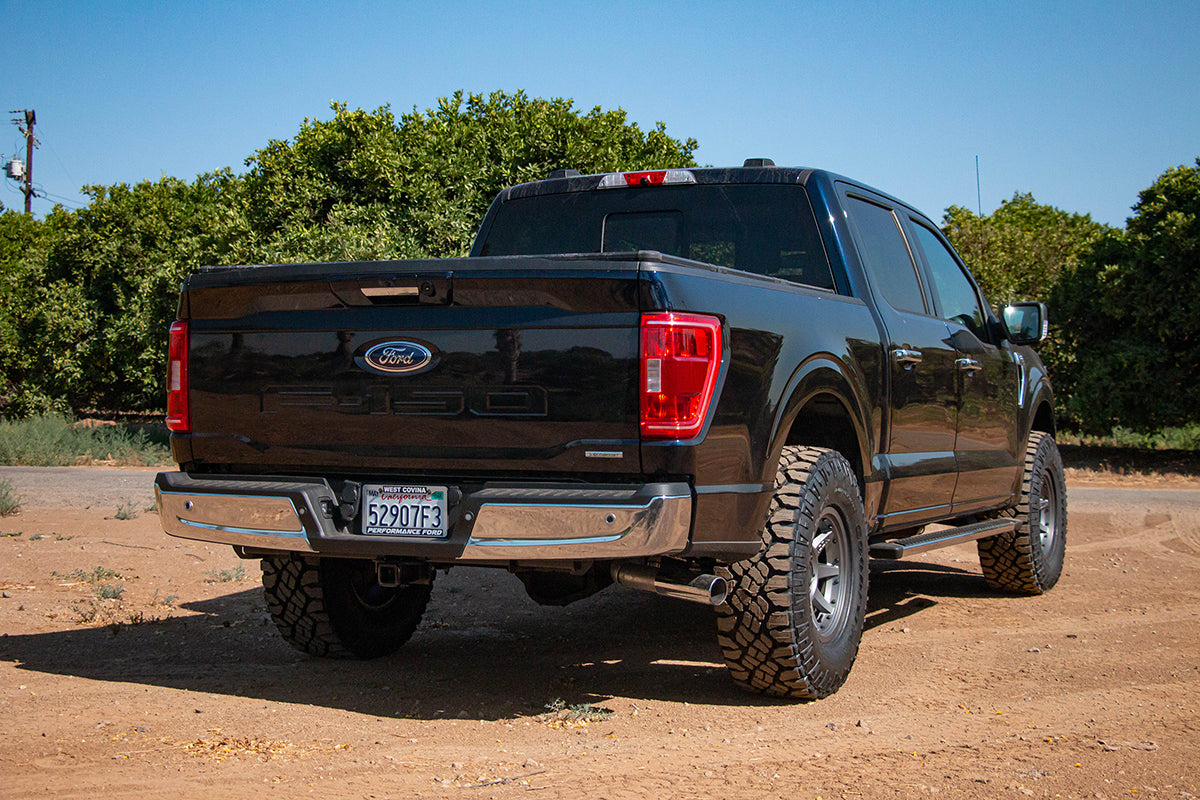

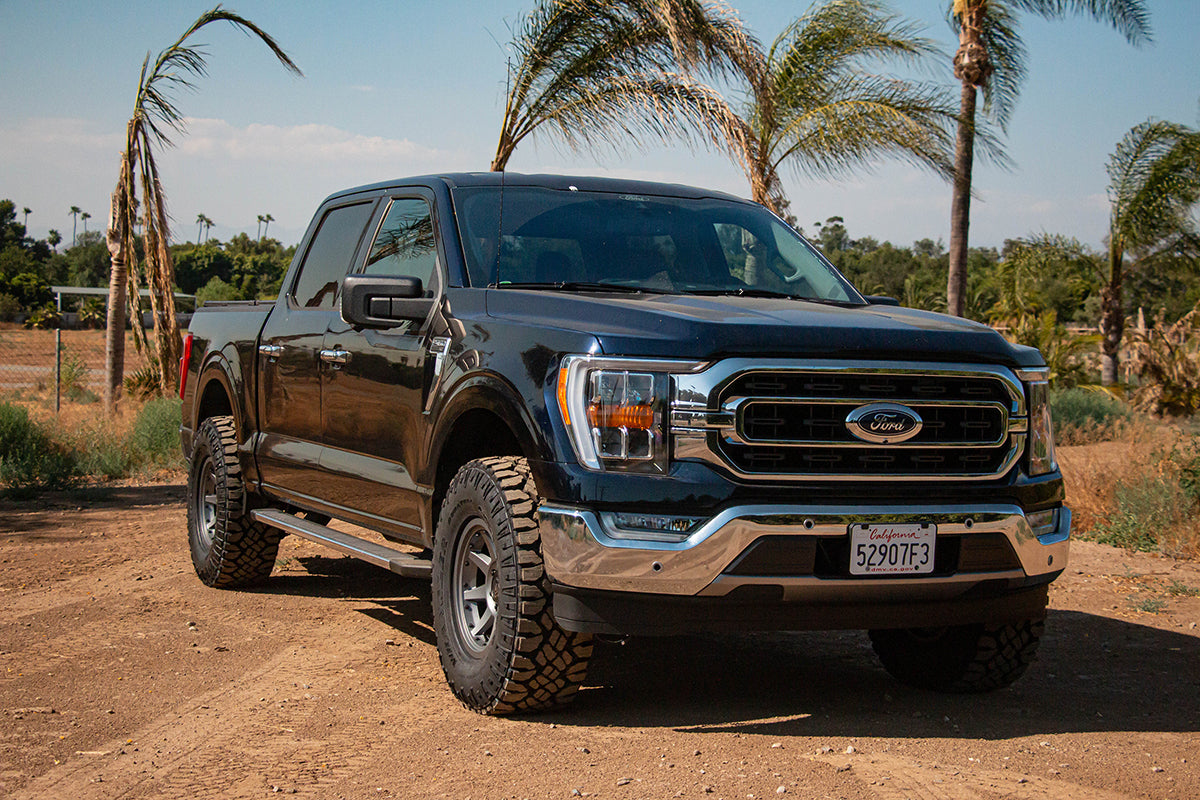

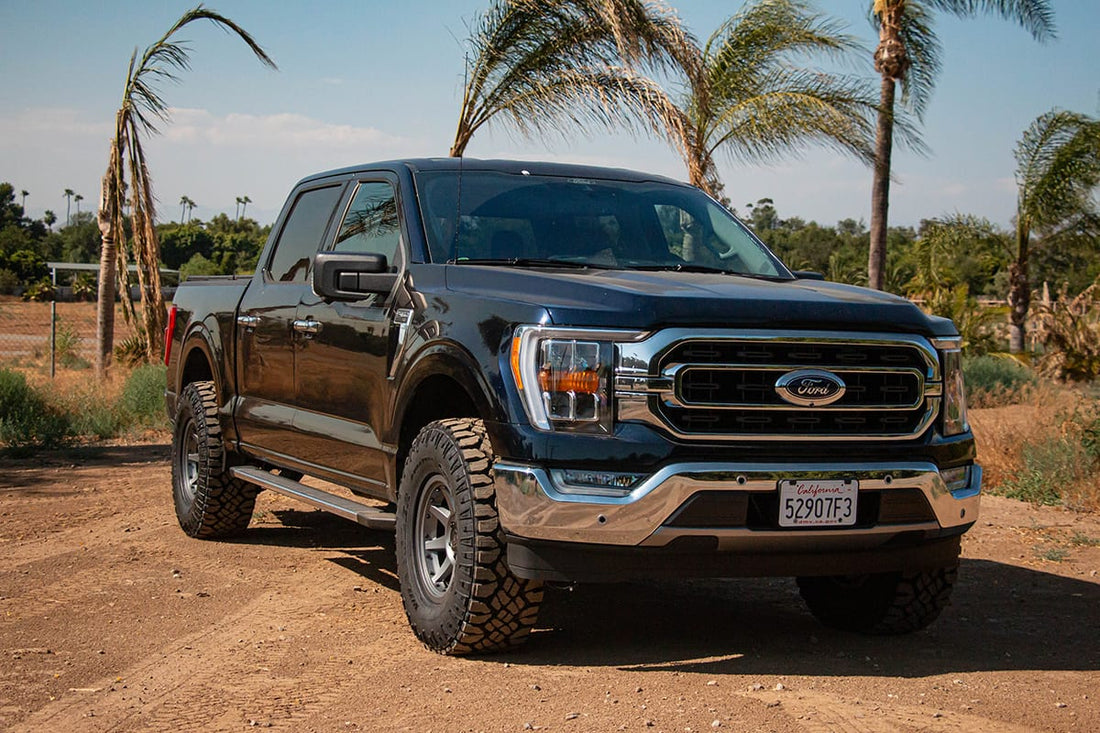

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2026 Ford F-150 2WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 0-3” lift height adjustability over stock allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Features
- Increased wheel travel and ride quality over stock
- 100% Bolt-on - no drilling,cutting or welding necessary for installation
- Vehicle specific tuned for superior shock damping and control
- Adjustable 0-3" lift height over stock
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" shafts
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| Active or Passive Suspension | Passive |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Cylinder Finish | Cadmium Plated |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 17.42 IN |
| Cylinder Color | Silver |
| Dust Shield Included | No |
| Extended Length | 22.18 IN |
| Front Spring Rate | 550 PPI |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Flat on Bar Pin |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Travel Length | 4.77 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 96518 - 09-25 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR |
| Add-On Part | 97720P - 09-25 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Service Parts | 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Service Parts | 252001 - 2.5 FIXED SPANNER WRENCH |
Note: Factory Wheels & Tires Fitment: Yes APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs. APPLICATION NOTE #648: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock APPLICATION NOTE #649: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) APPLICATION NOTE #7: Only fits rear-wheel drive (2WD) models APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Short Description: COILOVER KIT
Invoice Description: 91717
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
