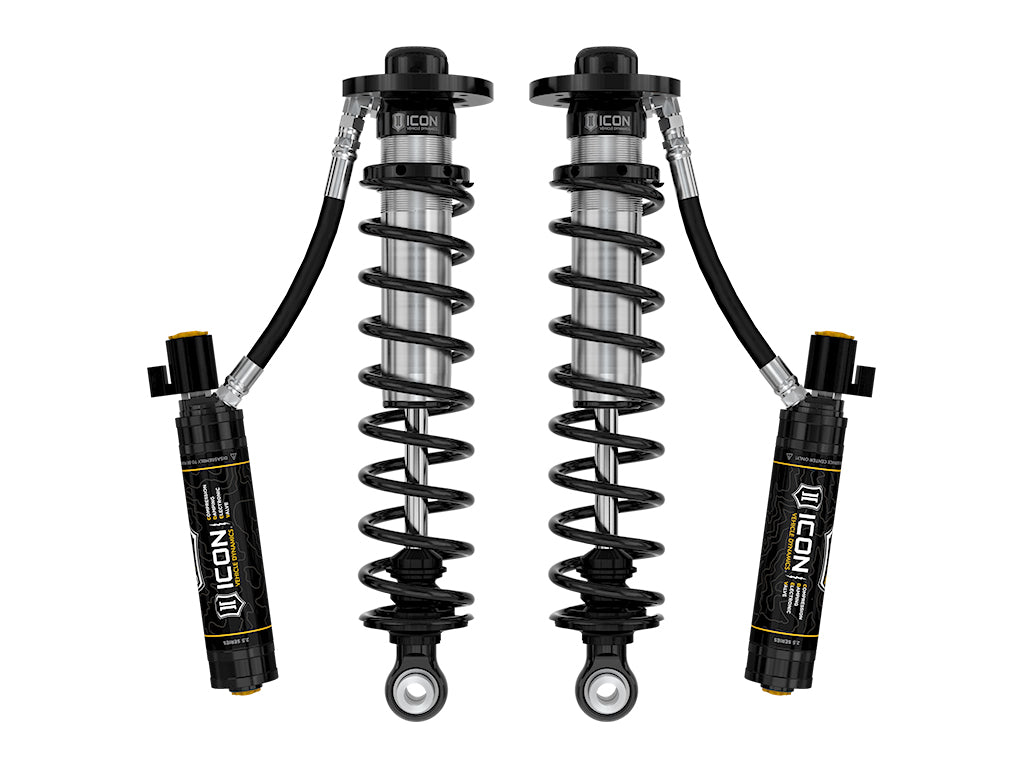

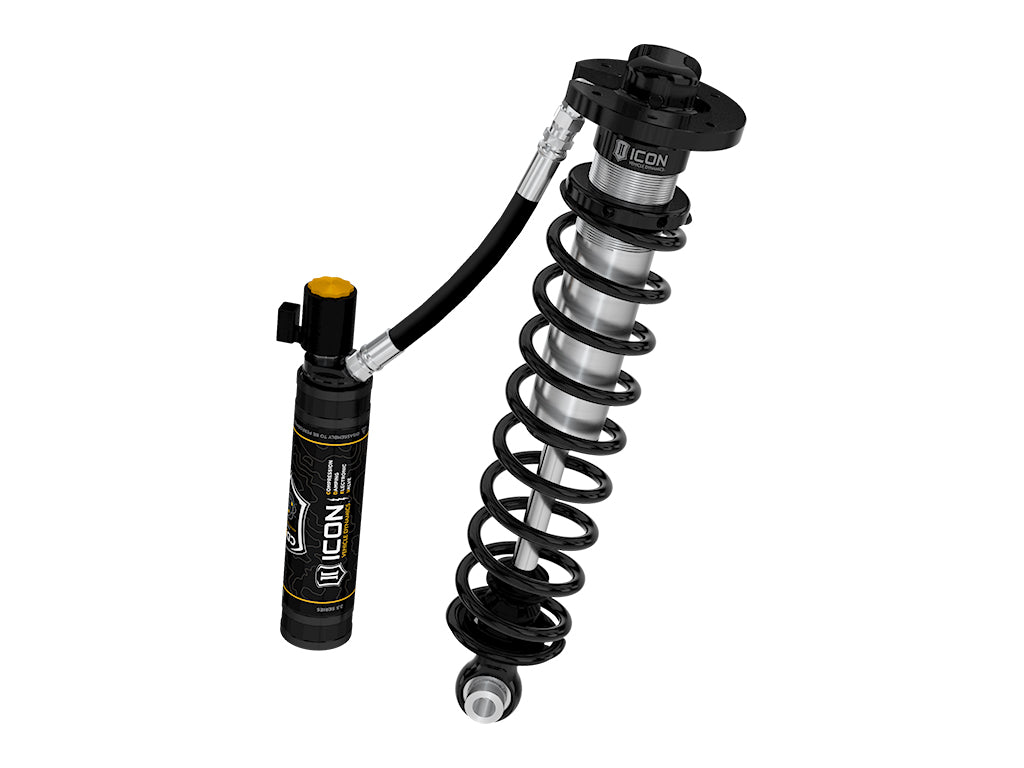

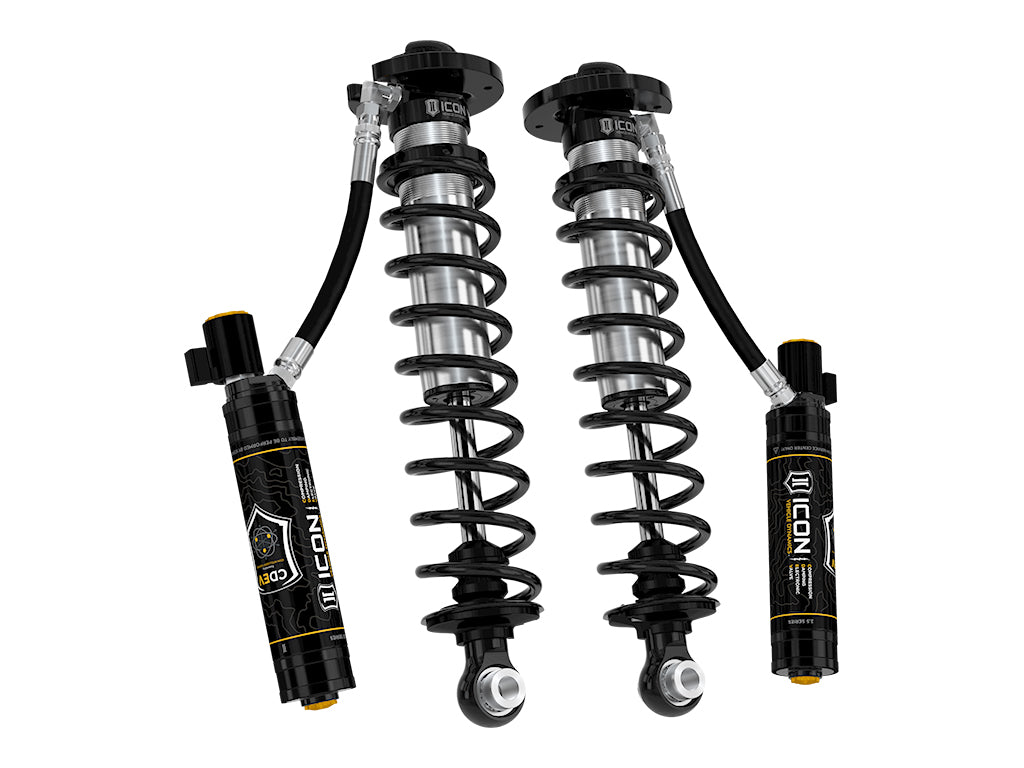

ICON Vehicle Dynamics 91836E - 22-23 FORD F150 LIGHTNING LOWERED REAR 2.5 VS RR CDEV COILOVER KIT
Product Availability Request
Fill the form and our team will contact you.
ICON’s vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.
Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable rear lowered height range of 0-4" under stock. With ICON's vehicle specific shock length, valving, and the larger 2.5" shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components. Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning. Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV front coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.
Features
- Height-adjustable coilovers offer 0-4" of lowered height adjustment
- Fully rebuildable and re-tunable
- 100% Bolt-on - no cutting or welding necessary for installation
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with optimized spring rates for improved ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK Rod End bearings for extended longevity and minimal deflection
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Active |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Add-On Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 IN |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.39 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.26 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Drop | 2 IN |
| Maximum Ride Height Lowering Distance | 4 IN |
| Minimum Drop | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| Rear Spring Rate | 225 PPI |
| Recommended Aftermarket Tires | 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | 20x9" with 6” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 20x9" w/ 6” Backspace / 25mm Offset Recommended Aftermarket Tires: 33" x 12.00" (Larger tires may fit but fender trimming and modifications may be required) APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LOWERED HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE. TECH NOTE: Also requires installation of IIC kit (Part # 93501) and CDEV front coilovers (Part # 91831E) TECH NOTE: Lowering rear past 3.5" below stock may reduce ride quality due to limited distance to bump stop engagement
Short Description: CDEV COILOVER KIT
Invoice Description: 91836E
Definition: Coilover Set
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: 1 Year-Shock Absorbers, Limited Lifetime-Coil Springs
