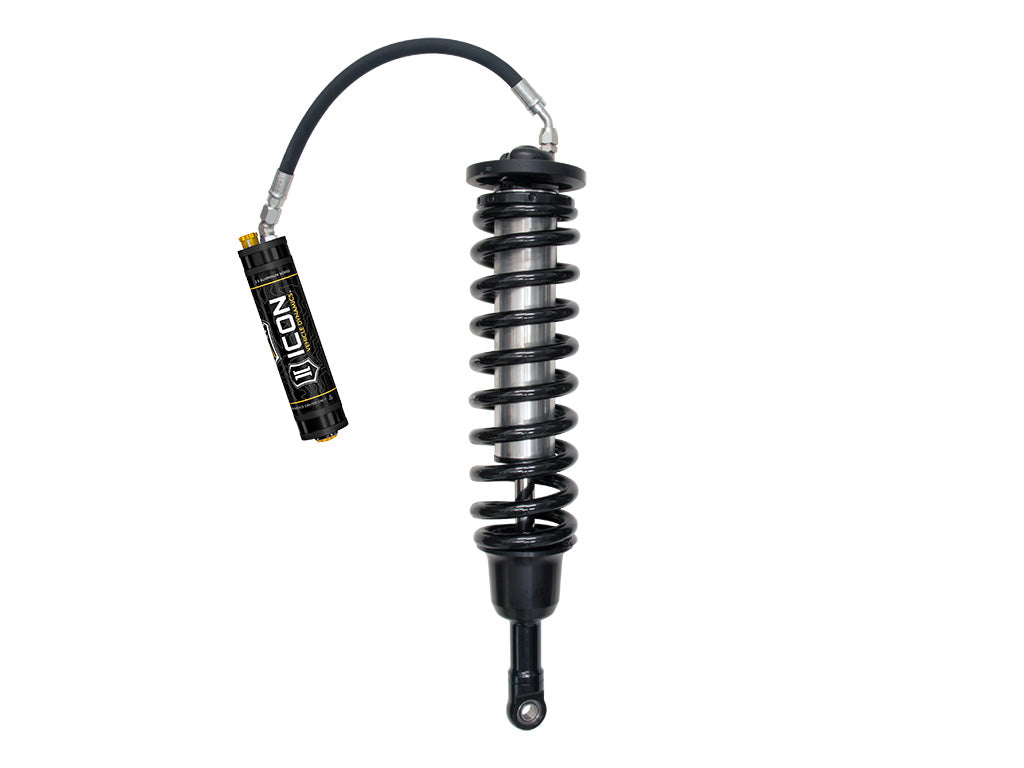

ICON Vehicle Dynamics 95000L - 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV DRVR
Regular price
$1,765.29 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability
2010-2014 FORD RAPTOR FRONT 3.0 VS COILOVER REMOTE RESERVOIR CDCV DRIVER SIDE
ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street "pickup truck" and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.
Features & Benefits
- 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
- Oversized 1” Heavy Duty CNC Machined Shock Shafts
- Extended Droop Travel and Increased Overall Performance on and off road
- Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
- Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
- Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
- Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs that are Precision CNC Honed & Hard Anodized
- Adjustable Ride Height from 1 – 3.5” of Lift
- ICON Engineered Eibach 3 5/8” ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
Specifications
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| AAP_UDA_12 | EA |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 3 IN |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included | Yes |
| Coil Spring Included | Yes |
| Coil Spring Insulator(s) Included | No |
| Compressed Length | 20.24 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Ceramic Coated |
| Cylinder Material | Steel |
| Cylinder Outside Diameter | 3 IN |
| Damping Adjustment Type | Manual |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 27.45 IN |
| Gas Charged | yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Material | Steel |
| Maximum Lift | 3.5 IN |
| Maximum Ride Height Raising Distance | 3.5 IN |
| Minimum Lift | 1 IN |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 302005 - 3.0 ICON REBUILD KIT (ALL) |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 611019 - COILOVER HARDWARE KIT PAIR |
| Shaft Diameter | 1 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate | 600 PPI |
| Spring Rate Type | Linear |
| Title | 10-14 RAPTOR FRONT 3.0 VS COILOVER RR CDCV DRVR |
| Travel Length | 7.21 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Compression: Linear |
| Valving Type | Rebound: Digressive |
| Active or Passive Suspension | Passive |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
Installation Guide: Download PDF
