ICON Vehicle Dynamics 95005 - 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR
Couldn't load pickup availability

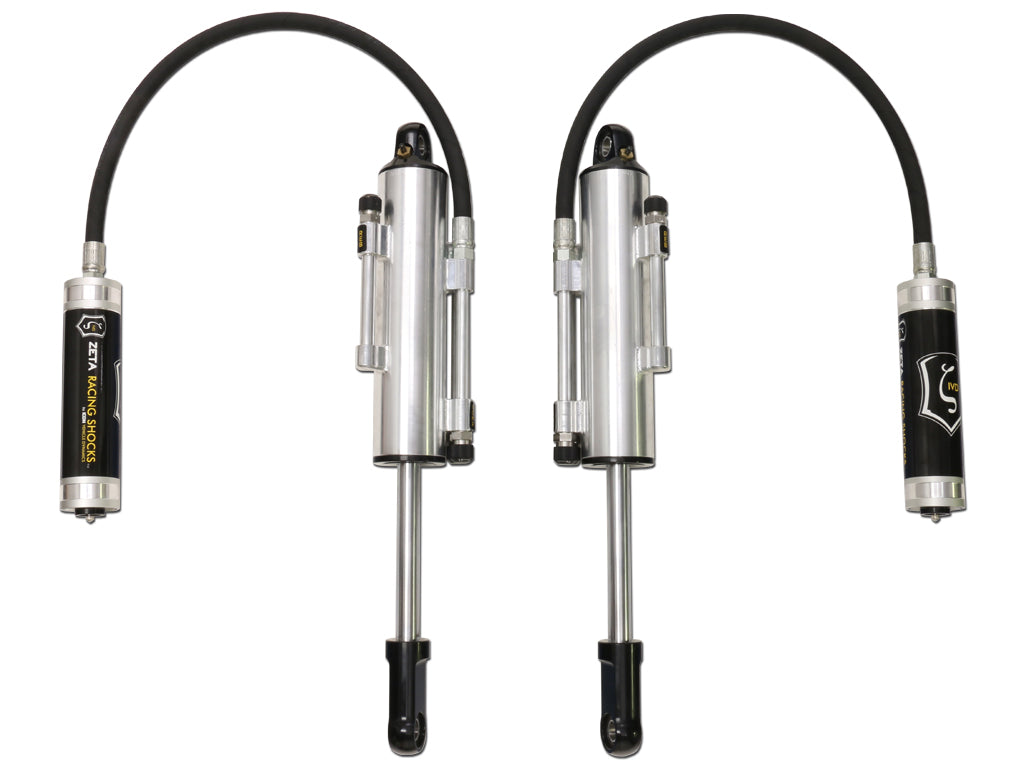

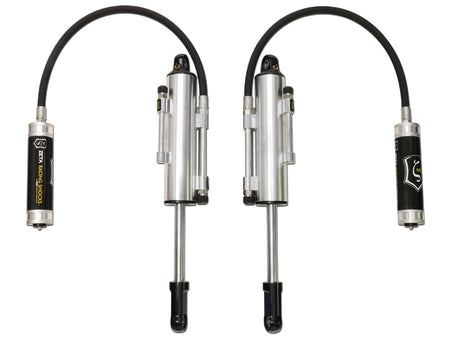

2010-2014 RAPTOR FRONT SECONDARY 3.0 ZETA REMOTE RESERVOIR SHOCK PAIR

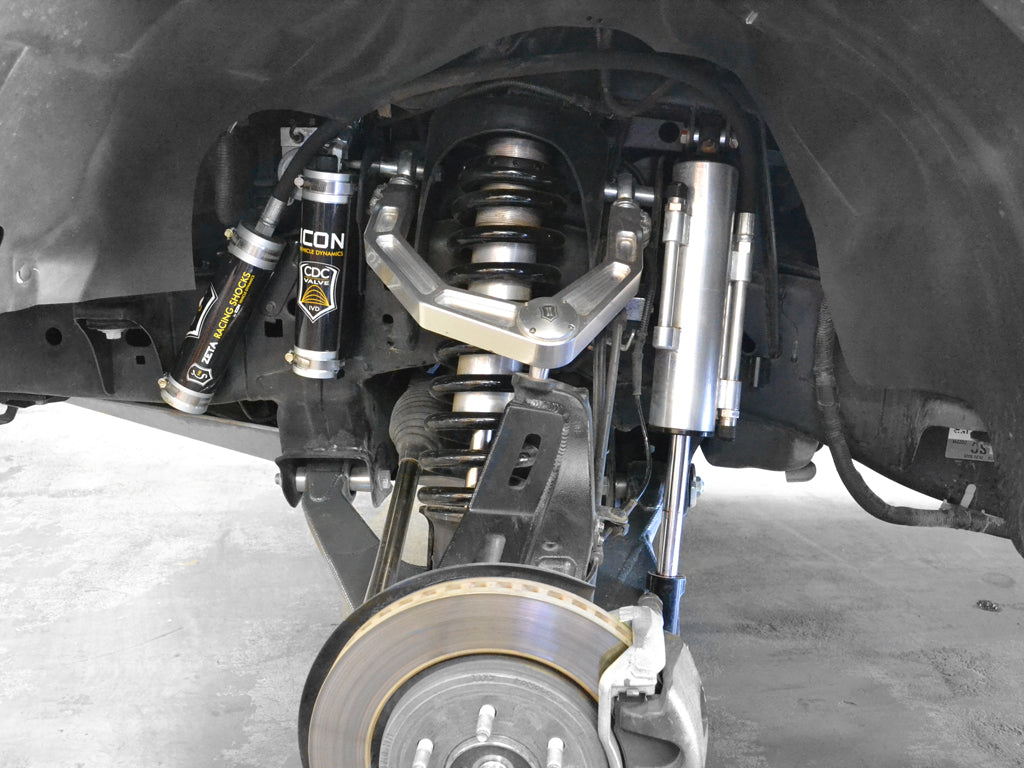

For high performance Ford Raptor suspension components, ICON Vehicle Dynamics is an industry leader. With our 3.0 coil-overs and bypasses, billet aluminum upper control arms, and bolt-on rear bumpstop system, drivers of ICON-equipped Ford Raptors are able to push their vehicles to a whole new level. It is this level of off-road abuse that prompted ICON to develop a 3.0 Secondary Bypass shock that is engineered to work perfectly with the Camburg Performance Dual Shock Lower Control Arm kit. The addition of this 3.0 Secondary Bypass means rougher terrain and larger off-road obstacles can be overcome with speed and confidence. With the turn of a knob, the compression and rebound damping of these shocks can be tuned to perfectly compliment the rest of ICON's Raptor suspension products for an unparalleled level of on and off-road performance.
Features & Benefits
- Further increases front damping ability of the Raptor in off-road conditions
- East-to-adjust bypass knobs allow for quick changes to shock without the use of tools
- Hydraulically damped bypass valve seats are engineered to attenuate the loud bypass clicking noise transferred to the cab that is common with other brands.
- High resolution bypass valves designed for noticeable fine-tuning of rebound and compression damping
- Digressive rebound on main piston in conjunction with calibrated external rebound valve preload facilitates good low-speed characteristics. This is in contrast to most bypass shocks that are designed primarily for high-speed use only.
- Compact bypass tube design allows ICON to fit 3 bypass tubes where others could only fit 2, allowing for more adjustability of the shock
- Compact tube block design keeps bypass tubes close to the body, providing maximum clearance from tires and other suspension components
- Replaceable bypass tubes can easily slide into position in case of damage
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable | Yes |
| Boot Included | NO |
| Bore Diameter | 2.75 IN |
| Shaft Diameter | 1 IN |
| Title | 10-14 RAPTOR FRONT SECONDARY 3.0 ZETA RR PAIR |
| Tube Outside Diameter | 3 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shaft Material | Chrome |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Mounting Plate |
| Damping Type | Oil |
| Grade Type | Performance |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| Shock Absorber Body End Measuring Point | TOP OF MOUNTING PLATE |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 302005 - 3.0 ICON REBUILD KIT (ALL) |
Installation Guide: Download PDF
