ICON Vehicle Dynamics 95200 - 10-14 RAPTOR REAR 3.0 ZETA PB PAIR
Regular price
$3,269.95 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

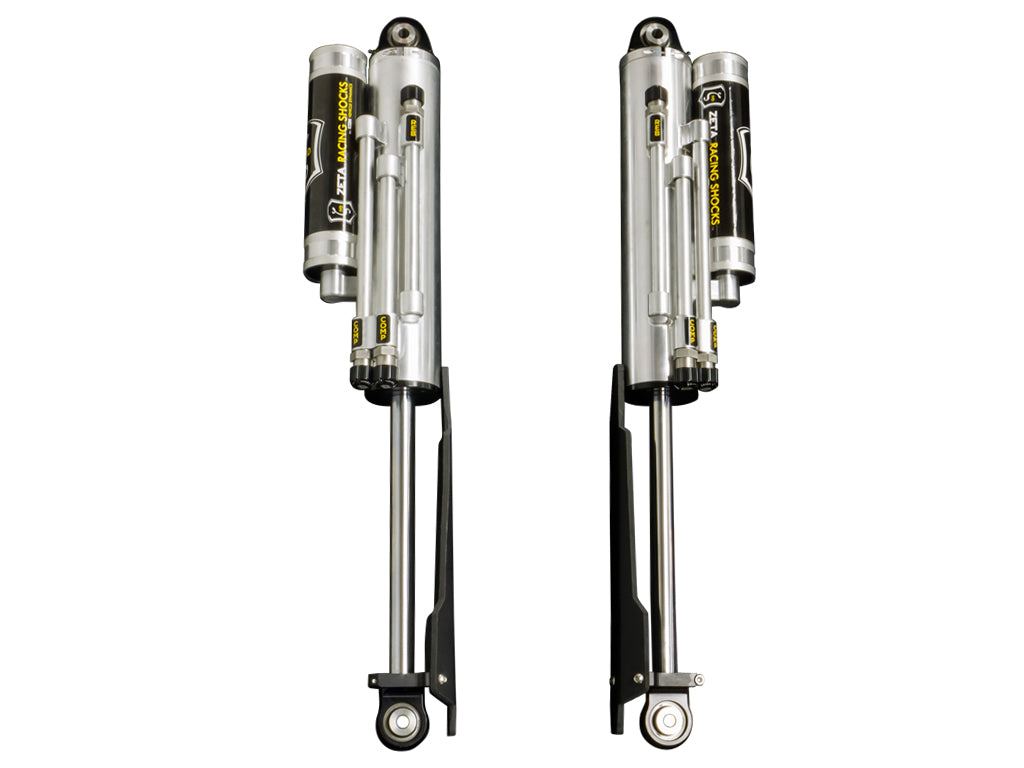

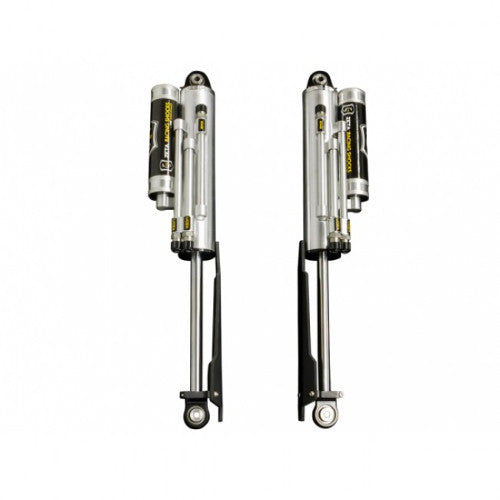

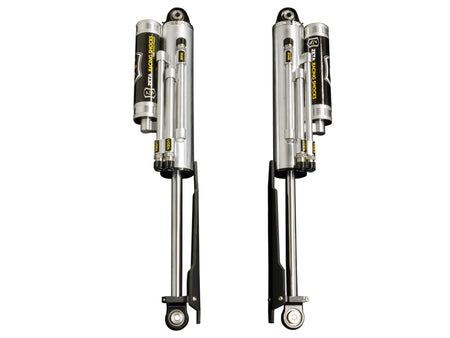

2010-2014 RAPTOR REAR 3.0 ZETA PIGGYBACK SHOCK PAIR
ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed & built, to bridge the gap between a standard street “pickup truck” and an off-road pre-runner. ICON Vehicle Dynamics new 3.0 Zeta Piggyback Reservoir 3 Tube Bypass Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.
Features & Benefits
- 3.0 OEM Replacement PiggyBack Reservoir Zeta 3 Tube Bypass Rear Shocks
- Easy-to-Adjust Detented Adjustment Knobs Offer Quick Adjustability without the Use of Tools
- High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance & High Definition Tuning
- High Resolution Bypass Valves Designed for Noticeable Fine-Tuning of Rebound and Compression Damping
- Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
- Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning AdjustmenT
- Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud “Clicking” Noise you will find with Other Brands
- Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
- UHMH Machined Shaft & Rod End Protective Shin Guards Standard with Every Kit
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Adjustable | Yes |
| Boot Included | yes |
| Bore Diameter | 2.75 IN |
| Shaft Diameter | 1 IN |
| Title | 10-14 RAPTOR REAR 3.0 ZETA PB PAIR |
| Tube Outside Diameter | 3 IN |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Shaft Material | Chrome |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Eyelet |
| Damping Type | Oil |
| Grade Type | Performance |
| Cylinder Color | Silver |
| Cylinder Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Gas Charged | Yes |
| External Reservoir | Yes |
| Service Parts | 252003 - SEAL INSTALL TOOL 2.5/3.0 |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Service Parts | 302005 - 3.0 ICON REBUILD KIT (ALL) |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
Installation Guide: Download PDF
