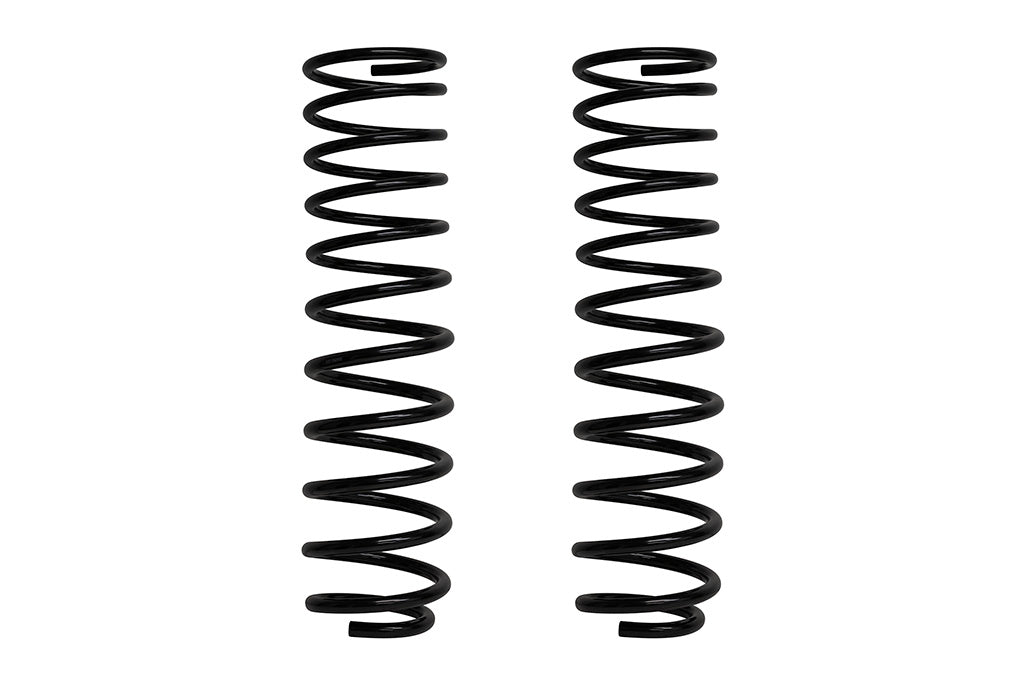

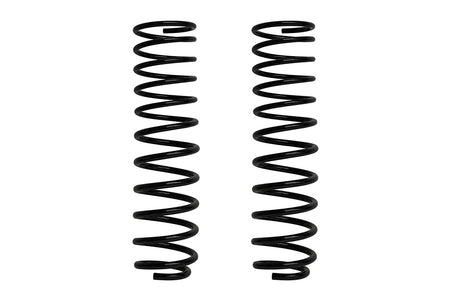

ICON Vehicle Dynamics 95230 - 21-25 F-150 RAPTOR TRIPLE RATE REAR COIL SPRING KIT
Couldn't load pickup availability
The ICON triple-rate coil springs provide softer ride and droop rates with firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance.
ICON Triple Rate rear coil springs for 2021-2025 Ford F-150 Raptor provides a modest increase in ground clearance while greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. The triple-rate coil design combines a performance ride rate for compliance and comfort, with an overload rate for load and bottom out resistance, and an extra soft initial rate for maximum droop travel. A unique tapered wire design helps achieve maximum travel and efficiency and an extra-long free height ensures the coils stay seated in their coil buckets for up to 17” of droop travel. In addition, these springs are also designed to net 1" of rear lift on a stock weight Gen3 Raptor for a more aggressive stance and increased fender clearance for larger wheels and tires. Like all ICON coil springs, these feature a lifetime guarantee against sagging/breakage to provide confidence in knowing that you have the best suspension products available for the 2021-2025 Ford F-150 Raptor.
Features & Benefits
- Vehicle specific design for the Gen3 F-150 Raptor
- 1" rear lift height over stock on Raptors without additional weight in the rear
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- Performance ride rate for compliance and comfort, overload rate for load and bottom out resistance, extra soft initial rate for maximum droop travel
- Tapered wire design achieves maximum travel and efficiency
- Tall free height - will not come loose from coil buckets for up to 17” of droop
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for maximum corrosion resistance
- Lifetime guarantee against sagging/breakage
Specifications
| Maximum Lift Height | 1 IN |
| Spring Color | Black |
| Color | Black |
| Rear Spring Seat Included | No |
| Bump Stops Included | No |
| Grade Type | Performance |
| Finish | Powdercoated |
| Rear Spring Rate Type | Progressive Triple Rate |
| Spring Material | Steel |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Add-On Part | 98564DJ - 21-24 F-150 RAPTOR BILLET UCA DJ PRO KIT |
| Add-On Part | IVD6135B - 21-25 F-150 RAPTOR .5-2.50” AAC FRONT LEVELING KIT, NON 37 PACK |
| Title | ICON 2021-2025 Ford F-150 Raptor, Rear, 1" Lift, Triple Rate Coil Spring Kit |
Installation Guide: Download PDF
