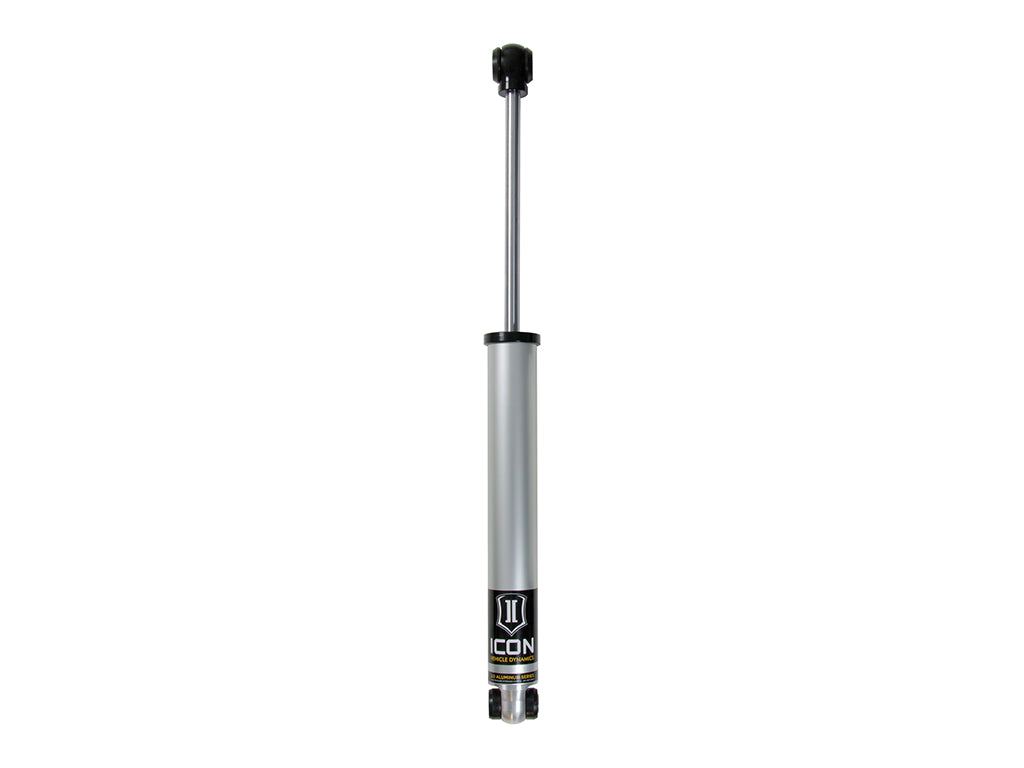

ICON Vehicle Dynamics 96519 - 19-23 RANGER 0-1.5" REAR 2.0 VS NR
Product Availability Request
Fill the form and our team will contact you.
ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.
ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.
Features & Benefits
- Premium Grade 5WT Shock Oil for consistent suspension damping along a wide temperature range
- 100% Revalveable
- Nitrogen Charged Monotube Design with Internal Reservoir
- One Piece Linear/Digressive Piston Design with Vehicle Specific Valving for Unsurpassed Performance and Ride Quality On and Off-road
- 5/8" Chrome Plated, Hardened Steel Shaft resists corrosion and pits
- 6061 Aluminum Rod End, Top Cap and internals insure Strength and Durability
- Polyurethane Bushings and zinc plated sleeves for OE factory type Fitment
- 6063 Anodized Aluminum body for Superb Heat Dissipation, Excellent Corrosion Resistance, and High TechAppearance
- Buna Top Out Bumper for noise free operation
- 100% Rebuildable
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-On Part | 614700 - 2.0 SHOCK BOOT KIT (EACH) |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | No |
| Adjustable Damping | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| Rod Diameter | .625 IN |
| Shaft Diameter | 0.625 IN |
| Quantity | 1 |
| Maximum Ride Height Raising Distance | 1.5 IN |
| Shock Absorber Bore Size | 1.75 IN |
| Cylinder Outside Diameter | 2 IN |
| Material | Aluminum |
| Finish | Anodized |
| Cylinder Finish | Anodized |
| Color | Black |
| Shock Absorber Rod End Measuring Point | Center of Eylet |
| Shock Absorber Body End Measuring Point | Center of Eylet |
| Valving Type | Digressive |
| Lower Mount Type | Eyelet |
| Upper Mount Type | Eyelet |
| Cylinder Color | Gray |
| Title | ICON 2019-2023 Ford Ranger, 0-1.5” Lift, Rear 2.0 VS Shock |
| Valving Type | Linear |
| Self-Leveling | No |
| Mounting Hardware Included | No |
| Dust Shield Included | No |
| Internal Rebound Spring | No |
| Coil Spring Insulator(s) Included | No |
| Includes Bump Stop | No |
| Hydraulic Lockout | No |
| Coil Over Springs Included | No |
| Dust Boot Included | No |
| Dust Shield | No |
| External Reservoir | No |
| Remote Reservoir | NO |
| Damping Type | Oil |
| Grade Type | Performance |
| Configuration | Performance |
| Color | Silver |
| Internal Construction Type | Single Tube |
| Suspension Type | Spring |
| Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Gas Charged | Yes |
| Internal Rebound Bumper | Yes |
| Service Parts | 252004 - ECONOMY NEEDLE CHARGING TOOL |
| Cylinder Material | Aluminum |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Service Parts | 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0) |
| Shaft Material | Chrome |
Installation Guide: Download PDF
