ICON Vehicle Dynamics K212502 - 03-12 RAM 2500/3500 4WD 2.5" STAGE 2 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
2003-2012 RAM 2500/3500 4WD 2.5" LIFT STAGE 2 SUSPENSION SYSTEM

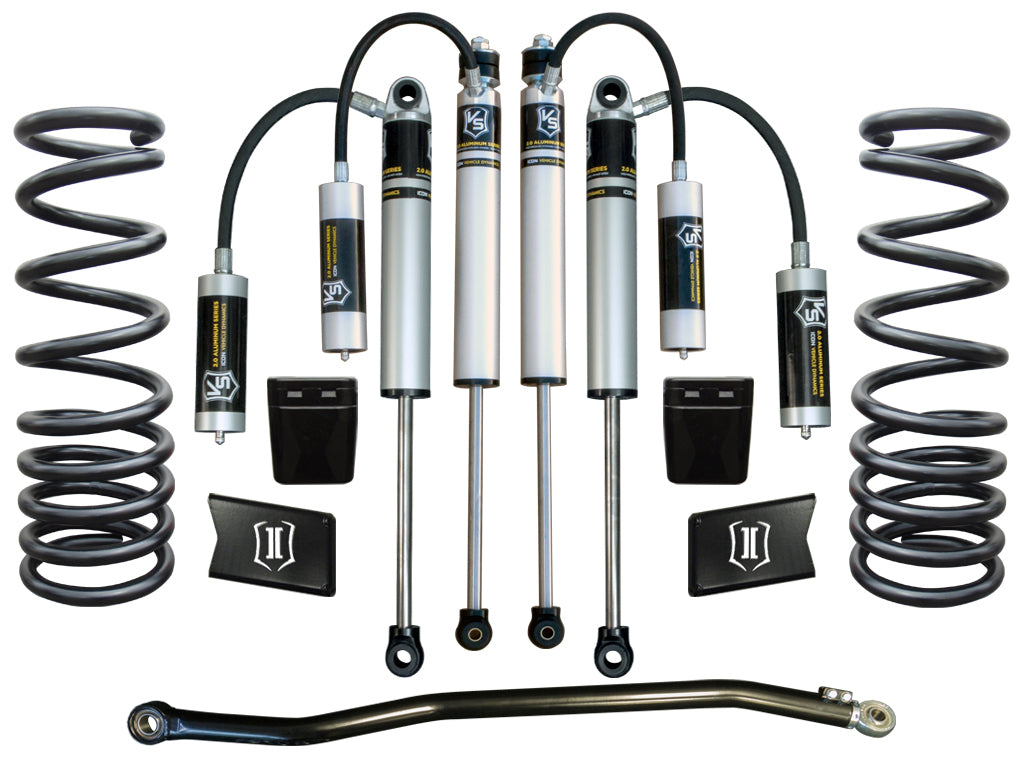

2003-2012 Ram 2500/3500 2.5 Inch Stage 2 Suspension System is our performance system for the novice off road enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 2 System is comprised of dual rate coil springs, polyurethane bumpstops, sway bar, 2.0 Aluminum Series remote reservoir shocks, and our bearing style adjustable track bar. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. This performance system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.
Features
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
- Adjustable track bar with PTFE lined FK bearings
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Level stance front to rear
- Less body roll than stock
- No drive shaft modifications needed
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Coils Quantity Front | 2 |
| Maximum Lift | 2.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Spring Color | Black |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| California Prop 65 Warning | Yes |
| Dual Rate Coil Springs | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset |
Note: OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE Ships in Multiple Boxes
Short Description: 2.5" SUSP SYS STG 2
Invoice Description: 03-12 RAM HD 4WD 2.5" STAGE 2 SUSP SYS
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Warranty: No Warranty
