ICON Vehicle Dynamics K212541 - 14-UP RAM 2500 4WD 2.5" STAGE 1 SUSPENSION SYSTEM
Product Availability Request
Fill the form and our team will contact you.
This entry level system increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel.

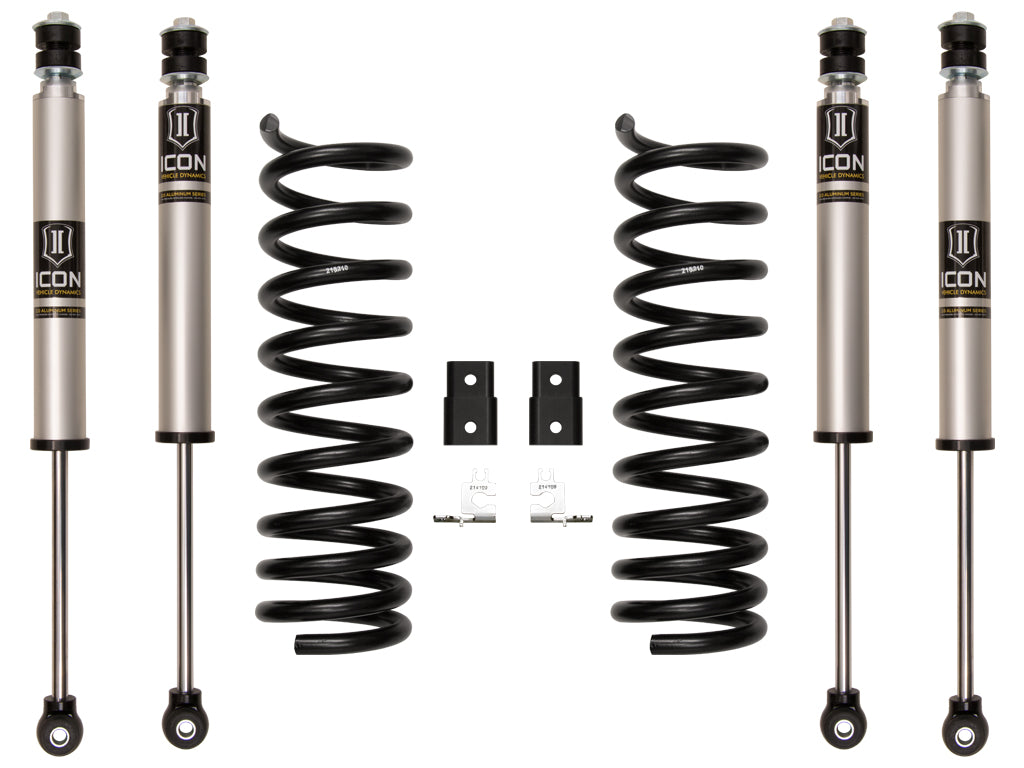

ICON's 2014-2026 Ram 2500 4WD 2.5β Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, an adjustable front track bar, as well as 2.0 Aluminum Series front and rear shocks. This entry level system increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. An adjustable front track bar with PTFE lined spherical bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Features
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable front track bar realigns front axle and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Less body roll than stock
- No drive shaft modifications needed
Specifications
| AAP_UDA_4 | 55 |
| AAP_UDA_22 | 1 |
| AAP_UDA_12 | EA |
| Active or Passive Suspension | Passive |
| Add-On Part | 216520 - 09-26 RAM HD 2.0 STEERING STABILIZER |
| Add-On Part | 214204 - 14-26 RAM 2500 REAR ADJUSTABLE TRACK BAR KIT |
| Add-On Part | 191014 - .25" COLLAR SPANNER PIN WRENCH |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | NO |
| California Prop 65 Warning | Yes |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Spring Color | Black |
| Coil Spring Material | Steel |
| Front Spring Rate | 413 PPI |
| Front Spring Rate Type | Progressive Dual Rate |
| Grade Type | Performance |
| Maximum Lift | 2.5 IN |
| Maximum Lift Height Front | 2.5 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.25β BS / 13mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Coils Quantity Front | 2 |
| Dual Rate Coil Springs | Yes |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2 IN |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Front Spring Rate | 550 PPI |
Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #564: Compatible with 0-1" rear lift on Ram 2500 equipped with rear coil springs APPLICATION NOTE #640: Provides 2.5" of front lift on most Ram 2500 submodels. Provides .5" of front lift on Ram 2500 Rebel. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25β BS / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs are rated for diesel engines only APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE APPLICATION NOTE #105: Not for vehicles with rear factory air ride
Short Description: SUSPENSION SYSTEM
Invoice Description: K212541
Definition: Suspension Lift Kit
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
Warranty: No Warranty
