ICON Vehicle Dynamics K212543P - 14-UP RAM 2500 4WD 2.5" STAGE 3 SUSPENSION SYSTEM (PERFORMANCE)

The ICON stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. 2.5 Series reservoir shocks keep the shocks at a cooler operating temperature during heavy use.

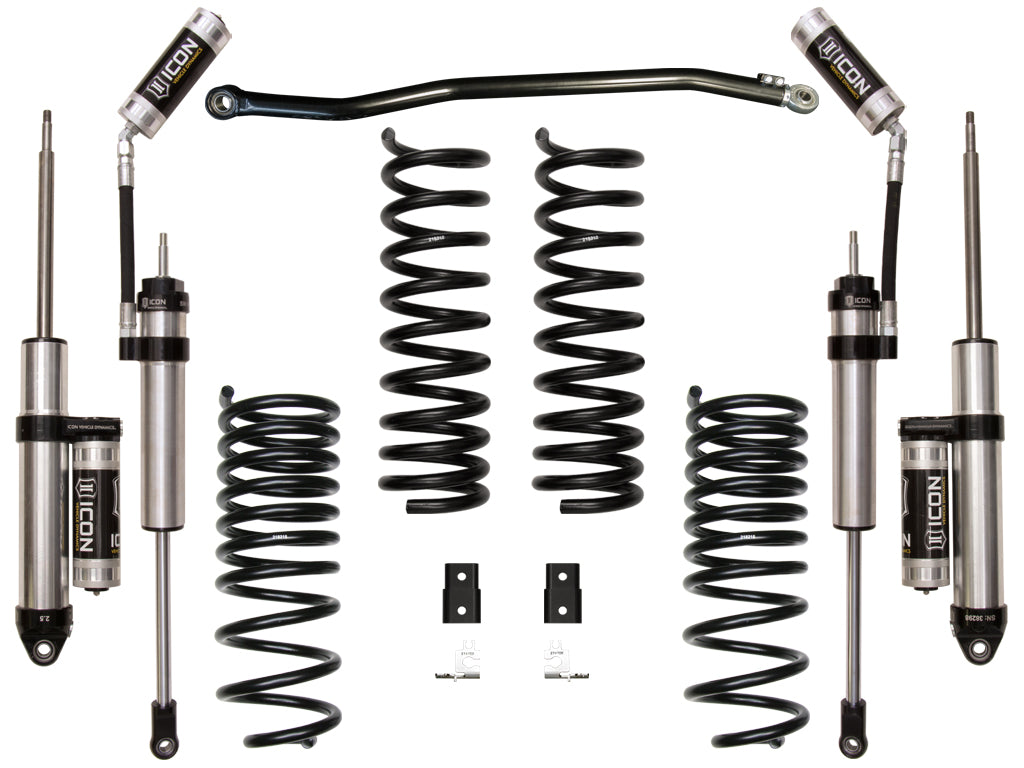

ICON's 2014-2026 Ram 2500 4WD 2.5” Stage 3 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front adjustable track bar as well as 2.5 Aluminum Series reservoir front and rear shocks. This system improves ride quality and performance both on and off-road. The ICON stage 3 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5 Aluminum Series reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market. This system includes triple-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.

Features

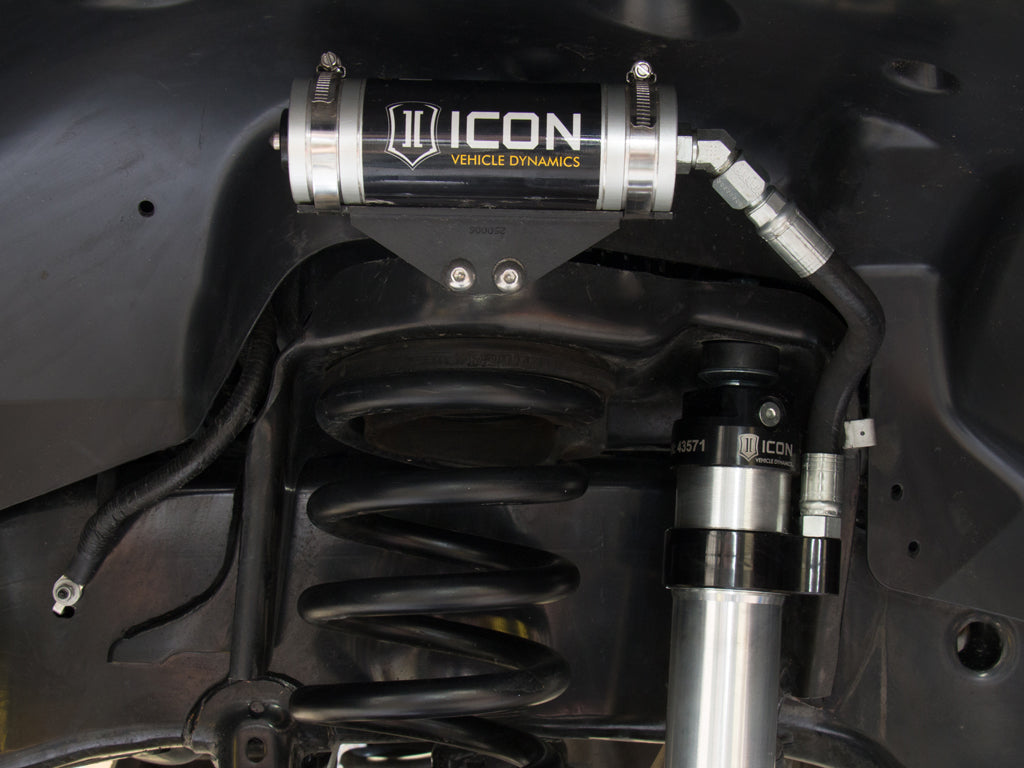

• ICON engineered dual rate front coil springs with match tuned 2.5 Aluminum Series remote reservoir shocks
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Adjustable front track bar realigns front axle and improves strength
• PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
• Performance triple rate rear coil springs provide .5" of rear lift and more compliant ride quality
• 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
• Less body roll than stock
• No drive shaft modifications needed

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing APPLICATION NOTE #105: Not for vehicles with rear factory air ride APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install APPLICATION NOTE #564: Compatible with 0-1" rear lift on Ram 2500 equipped with rear coil springs APPLICATION NOTE #640: Provides 2.5" of front lift on most Ram 2500 submodels. Provides .5" of front lift on Ram 2500 Rebel. Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #1: Only fits 4WD models APPLICATION NOTE #6: Springs are rated for diesel engines only APPLICATION NOTE #12: Helper air bags are recommended for hauling/towing heavy loads APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Short Description: SUSPENSION SYSTEM

Invoice Description: K212543P

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: No Warranty
