ICON Vehicle Dynamics K213002 - 09-18 RAM 1500 4WD .75-2.5" STAGE 2 SUSPENSION SYSTEM
Couldn't load pickup availability
2009-2018 RAM 1500 4WD .75-2.5" LIFT STAGE 2 SUSPENSION SYSTEM

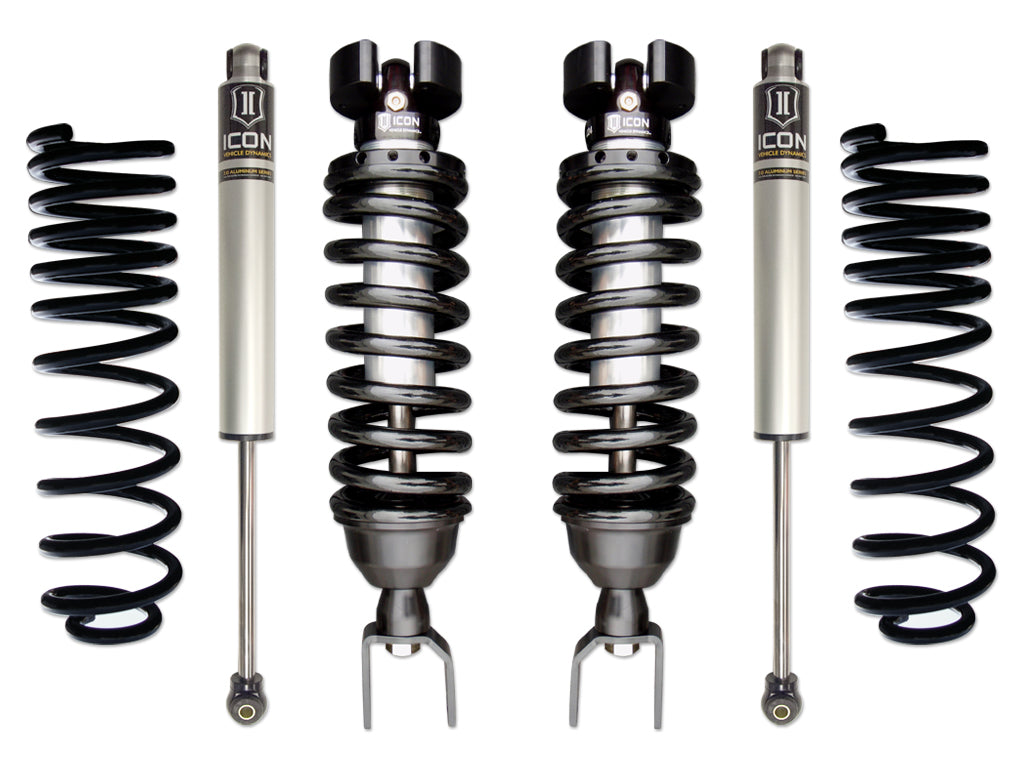

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features & Benefits
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from .75-2.5" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- High strength alloy CNC machined lower bar pin
- FK rod end bearings for extended longevity and minimal deflection
- Bolt-on system - no drilling or welding necessary for install
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Bushings Included | Yes |
| Title | 09-18 RAM 1500 4WD .75-2.5" STAGE 2 SUSPENSION SYSTEM |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Maximum Lift | 2.5 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Spring Color | Black |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 4.75” BS / 0mm Offset |
| Coil Spring End 1 Type | Open |
| Coil Spring End 2 Type | Open |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
Installation Guide: Download PDF
