ICON Vehicle Dynamics K213101 - 19-UP RAM 1500 2/4WD 0-1.5" STAGE 1 SUSPENSION SYSTEM

ICON Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON’s primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality.

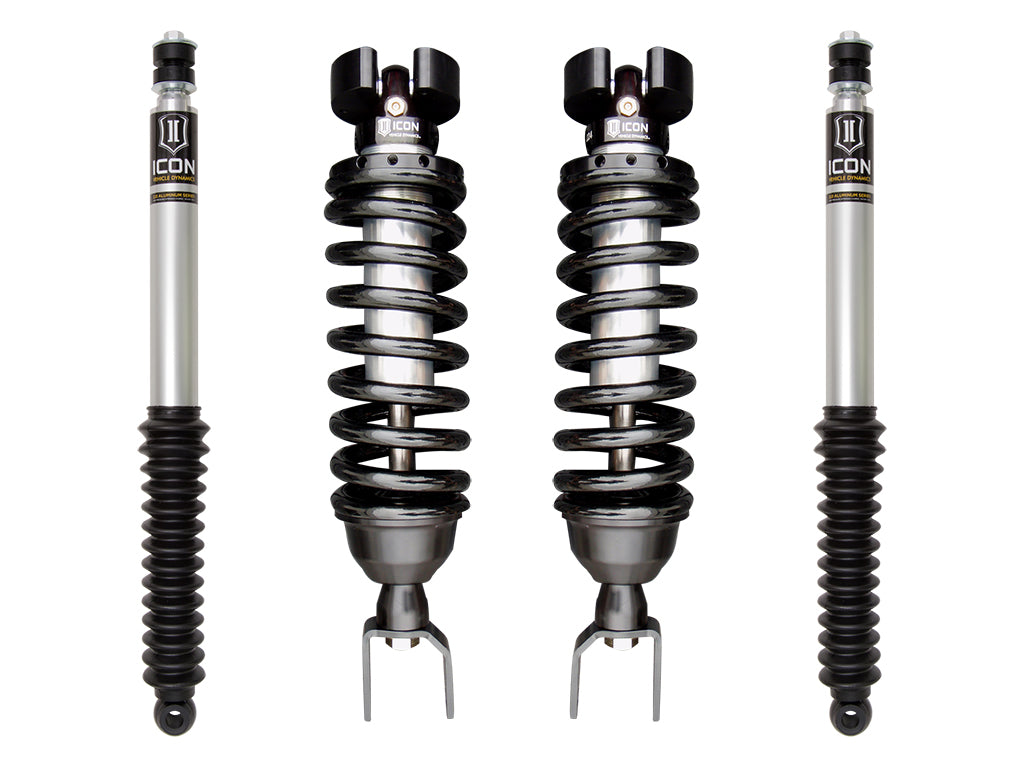

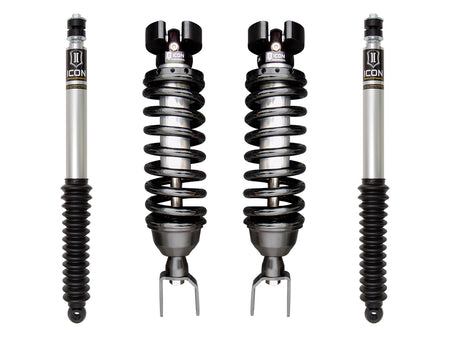

With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform. ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2026 Ram 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features

• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Fits 2WD & 4WD applications
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Specifications

Note: OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #162: Not compatible with factory air ride equipped vehicles APPLICATION NOTE #184: Will not fit Ram 1500 TRX or Ram 1500 RHO APPLICATION NOTE #650: 2019-2026 Ram 1500 Rebel will have front lift height range of 0-.75" over stock Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) APPLICATION NOTE #14: Included rear shocks are compatible with 0-3" of rear lift over stock APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle. APPLICATION NOTE #100: Springs not rated for EcoDiesel equipped trucks APPLICATION NOTE #131: Will not fit 2019-2024 Ram 1500 classic models. APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install

Short Description: SUSPENSION SYSTEM

Invoice Description: K213101

Definition: Suspension Lift Kit

Installation Guide: Download PDF

Installation / Product Video: Watch on YouTube

Warranty: No Warranty
