ICON Vehicle Dynamics K213105T - 19-UP RAM 1500 2/4WD 0-1.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA
Regular price
$4,277.44 USD
Need help confirming fitment?
Ships in 2 - 5 business days
Easy return process
Couldn't load pickup availability

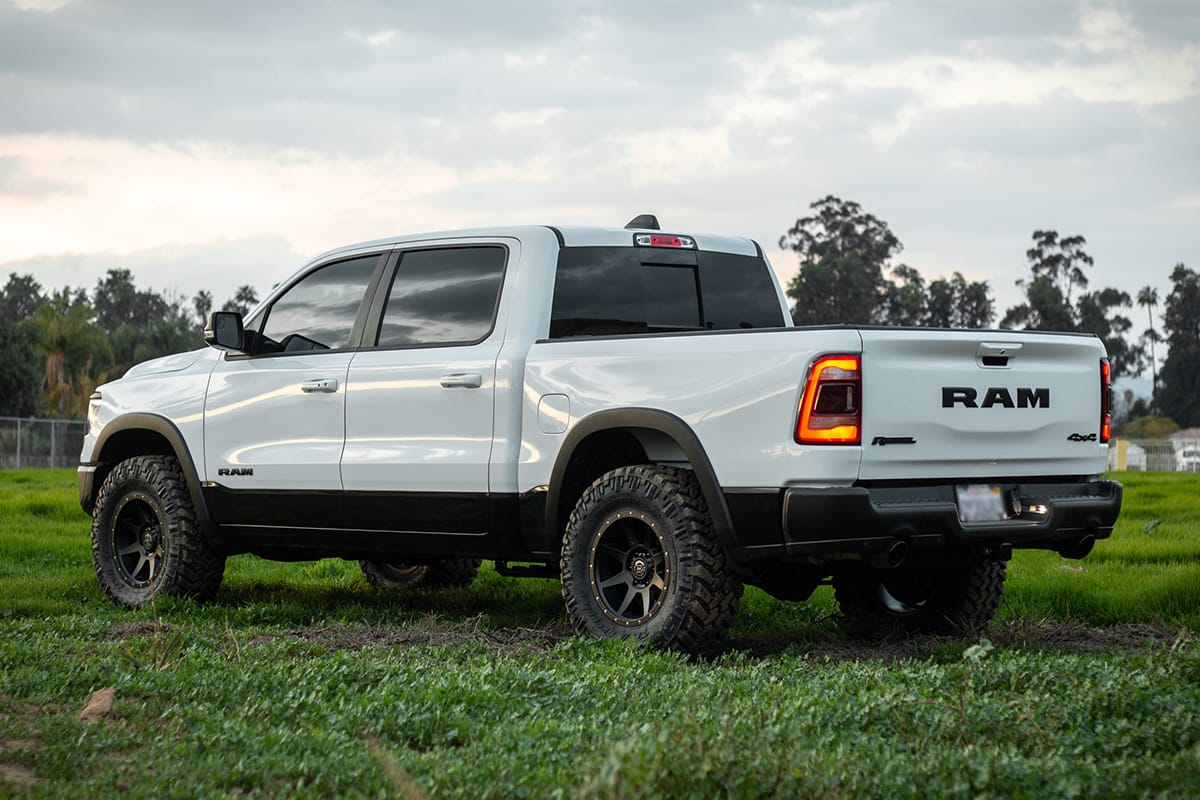

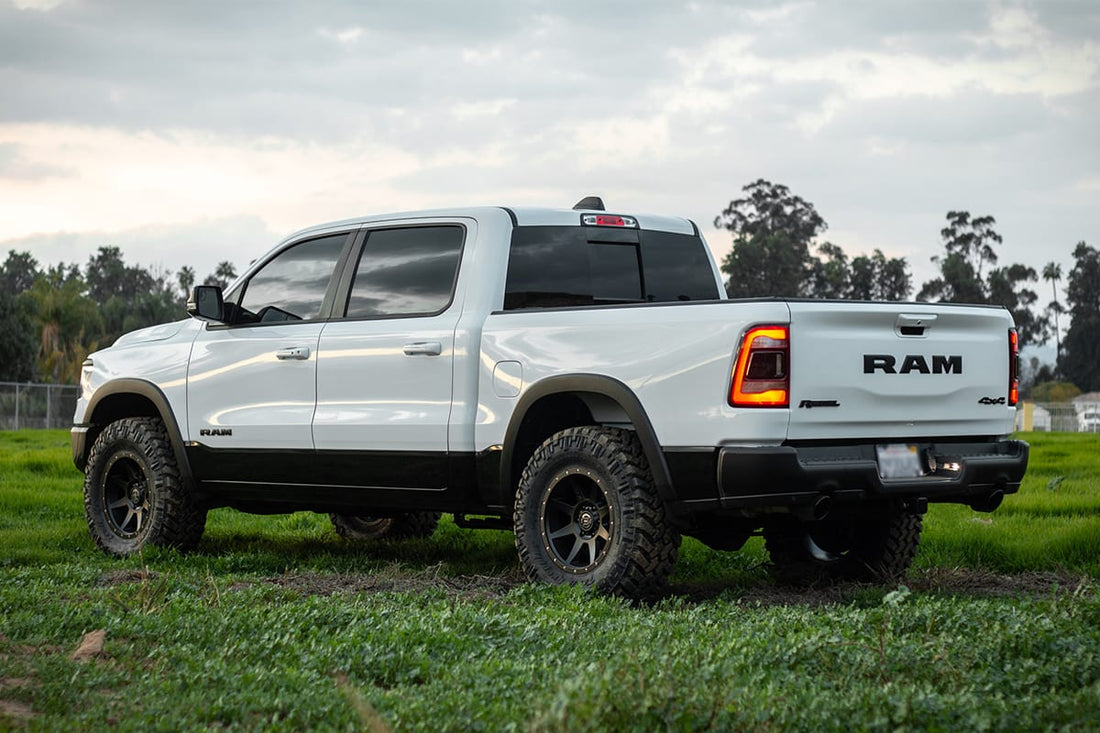

2019-UP RAM 1500 2/4WD 0-1.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA
With several changes being made to the 2019 RAM 1500 platform including an all-new frame, increased chassis rigidity, and a lighter overall weight, ICON’s R&D department went above and beyond to make sure the new RAM truck was properly analyzed. With these changes made by the factory, the development of new ICON rear shocks (and revised front coilover tuning) was necessary to optimize fitment and performance on this new platform.

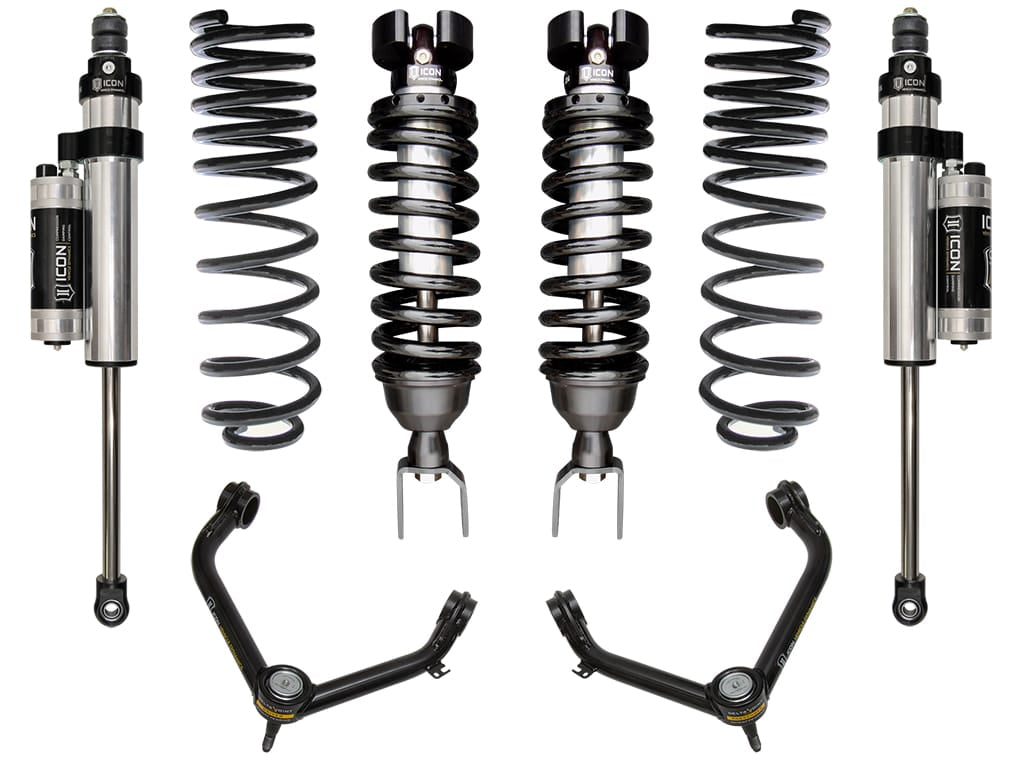

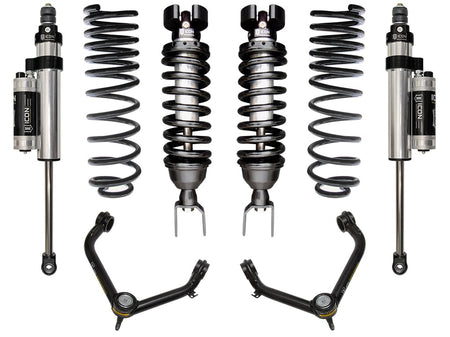

Features & Benefits
- Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
- Corrosion resistant CAD plated coilvoer shock bodies with 7/8? shafts
- Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
- ICON upper control arms improve suspension geometry for predictable handling
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance
- Fits 2WD & 4WD applications
- 6061 Aircraft grade aluminum CNC machined components
- Shocks are fully rebuildable and revalvable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
- Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
Specifications
| AAP_UDA_12 | EA |
| AAP_UDA_22 | 1 |
| AAP_UDA_4 | 55 |
| Bushings Included | Yes |
| Maximum Lift | 1.5 IN |
| Title | 19-UP RAM 1500 2/4WD 0-1.5" STAGE 5 SUSPENSION SYSTEM W TUBULAR UCA |
| Coils Quantity Front | 2 |
| Coils Quantity Rear | 2 |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Spring Color | Black |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset |
| Recommended Aftermarket Wheels | ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset |
| Grade Type | Performance |
| Spring Material | Steel |
| California Proposition 65 | WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Mounting Hardware Included | Yes |
| Shocks Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Add-On Part | 198001 - BILLET SPANNER WRENCH KIT |
| Add-On Part | 191011 - TUBULAR UCA BILLET CAP SET |
| Add-On Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Add-On Part | 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
Installation Guide: Download PDF
Installation / Product Video: Watch on YouTube
